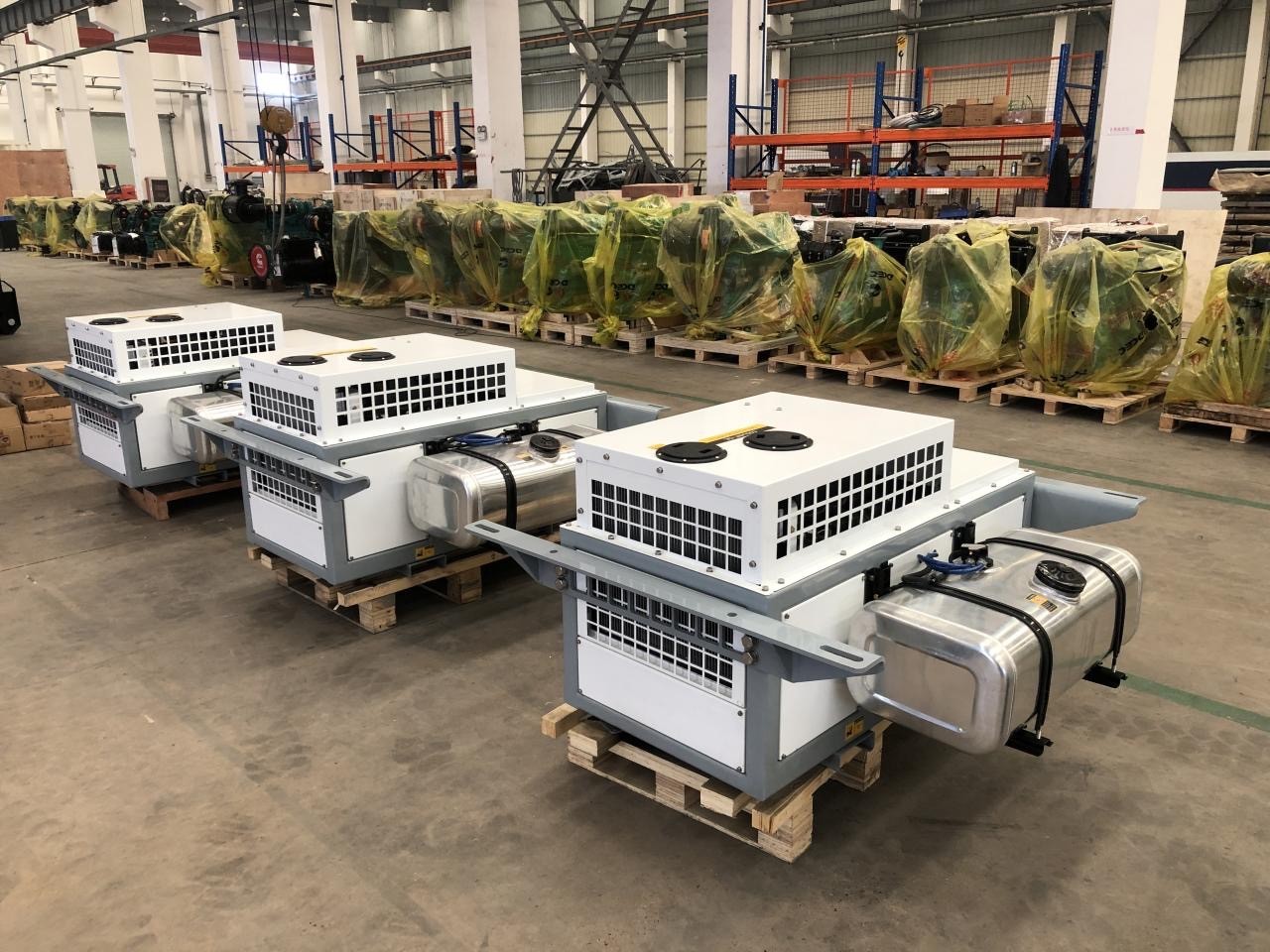

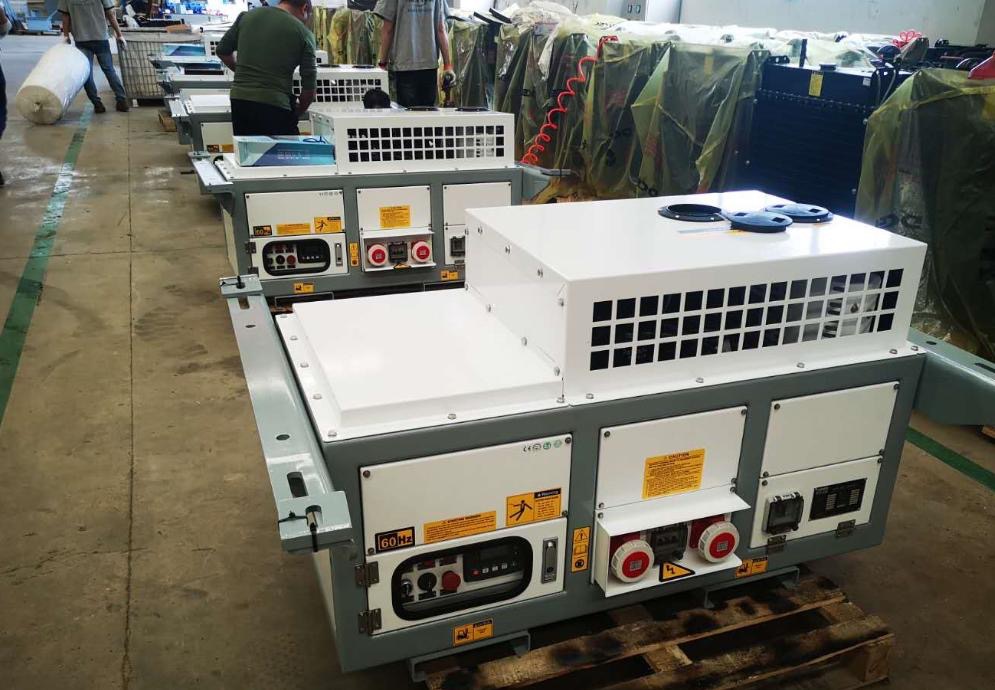

Diesel Generator for Refrigerated Containers
This 16kW diesel generator is designed for under-mounted truck reefer container applications. It features a specially designed alternator and a heavy-duty, removable fuel tank.
Technical Specifications
Overview
High-Performance Reefer Power Solution
This customized diesel generator is specifically engineered for refrigerated container applications, offering a compact under-mount design for truck transport. Powered by a high-efficiency Japanese engine, it provides reliable 16kW power to maintain temperature-sensitive cargo during transit. The unit features a silent-type canopy with advanced airflow design, ensuring peak performance and safety in demanding outdoor environments.
Performance Metrics
Core Performance
16 kW
Prime Power
60 Hz
Frequency
3 ph
Phase
Engine & Alternator
- Engine Origin
- Made in Japan
- Alternator Options
- StamfordLeroy SomerMecc AltePLG Series
Physical Dimensions
- Length
- 1570 mm
- Height
- 815 mm
- Net Weight
- 630 kg
Fuel System
Fuel Tank Design
- Double-bunded (environmental protection)
- Removable design
- Heavy-duty 24-hour capacity
- External lockable filler
- Electrical fuel gauge
Canopy & Build
Canopy Specifications
- Galvanized sheet metal construction
- High-quality outdoor powder coating
- Stainless steel external hardware
- Holistic disassembly structure for maintenance
- Fully bunded base to prevent spills
Safety & Logistics
- Handling & Safety
- Top Lifting PointForklift PocketsMine Spec Skid BaseEarth Strap SafetyRemote Start Controller
Compliance
Certifications
ISOCE
