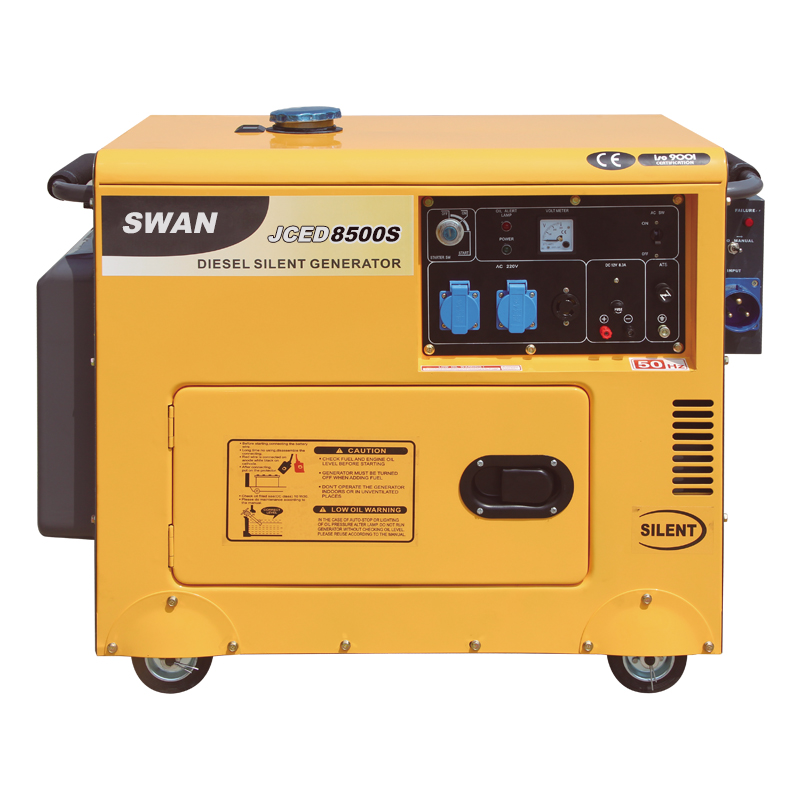

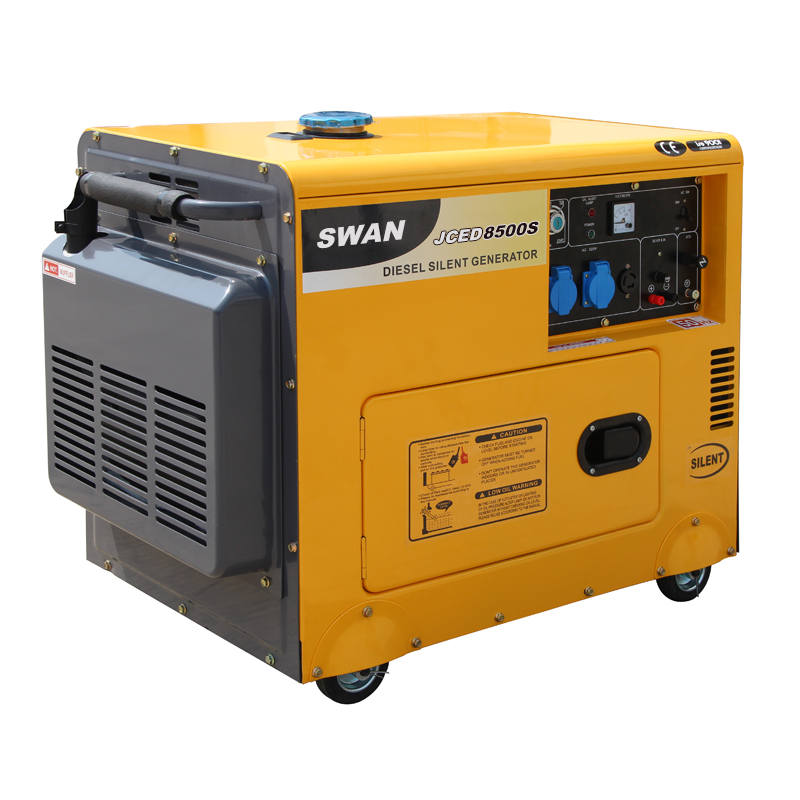

Diesel Engine Generator Set
This diesel engine generator set provides a reliable power solution for various applications. The silent generator is engineered for efficient and stable power output while minimizing noise.
Technical Specifications
Overview
Reliable Silent Power Solution
The JCED8500S series is a robust diesel-powered generator set engineered for consistent and efficient power delivery in both residential and commercial settings. Designed with a silent operation profile, it minimizes noise disruption while providing reliable output through its vertical single-cylinder, air-cooled engine. Featuring mobility-focused design elements like integrated wheels and comprehensive safety systems, this unit ensures dependable performance whenever and wherever backup or primary power is required.
Performance Metrics
Key Performance Metrics
7 KVA
Max Output
72 dB(A)
Noise Level
15 L
Fuel Tank
6.5 hr
Runtime
Technical Specifications
Engine Specifications
- Model: JC192FAD
- Type: Vertical single-cylinder, 4-stroke, air-cooled, direct injection
- Displacement: 499 ml
- Lubrication: Combined pressure and splashing
- Starting: Electric start
Electrical Output
| Parameter | Single-phase | Three-phase |
|---|---|---|
| Rated Power (KVA) | 6.0 | 6.0 |
| Max Power (KVA) | 6.5 | 7.0 |
| Power Factor | 1.0 | 0.8 (Lag) |
Physical & Operational
- Physical Dimensions
- 945 x 565 x 700 mm
- Dry Weight
- 147 Kg
Certifications & Features
Safety Systems
Low Oil WarningOverload ProtectionATS Ready
- Compliance & Features
- CE CertifiedISO 9001Silent TypeElectric StartAVR Equipped
