Technical Specifications
Overview
Reliable Diesel Power Generation

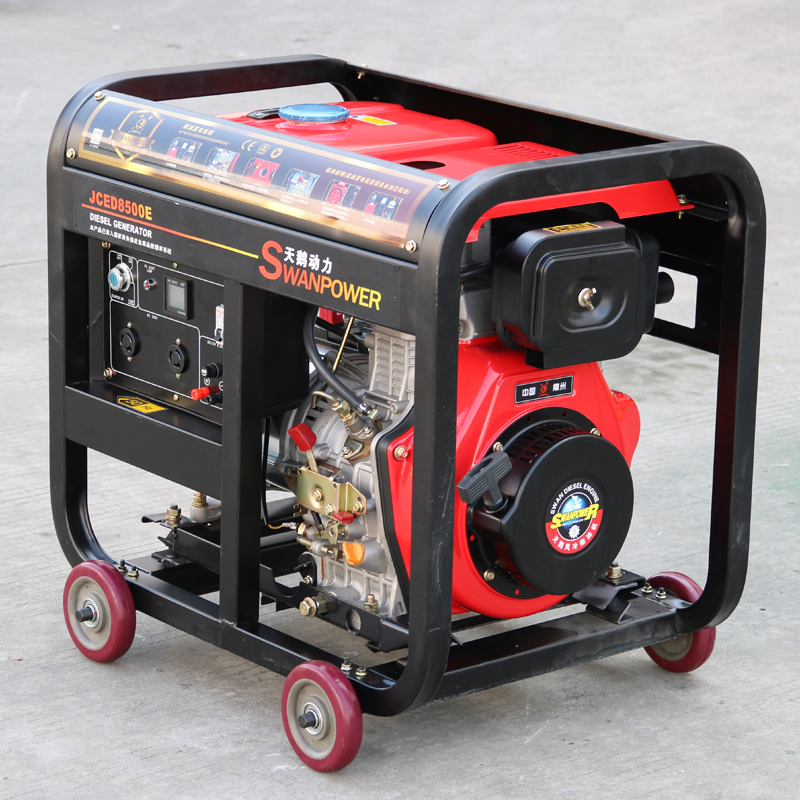

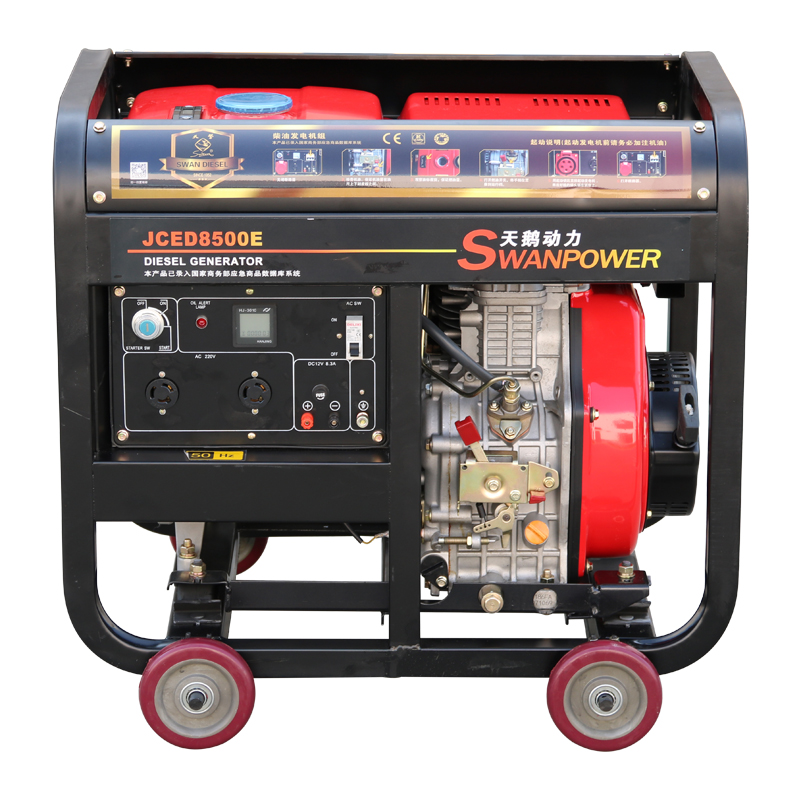

This diesel engine generator set is engineered for robust performance in both residential and commercial applications. Built with a vertical single-cylinder, four-stroke, air-cooled engine, it offers dependable power output with efficient fuel consumption. Designed for portability and ease of use, the unit features an electric start system and a durable open-frame structure.
Performance Metrics
Power Output
6.5 KVA
Max Output (Single-Phase)
7 KVA
Max Output (Three-Phase)
3,600 r/min
Rated Speed
- Noise Level
- 77 dB(A)
Engine Specifications
Engine Configuration
| Feature | Specification |
|---|---|
| Engine Type | JC192FAK |
| Form | Vertical, 4-stroke, air-cooled, direct injection |
| Displacement | 499 ml |
| Bore x Stroke | 92 x 75 mm |
Fuel & Lubrication
- Fuel: Diesel (0#, -10#, -35#)
- Fuel Tank Capacity: 13.5 L
- Lubrication: Combined pressure and splashing
- Oil Capacity: 1.65 L
- Recommended Oil: CD class or SAE 10W-30, 15W-40
Electrical Specifications
Electrical Characteristics
| Parameter | Single-Phase | Three-Phase |
|---|---|---|
| Rated Voltage (V) | 115/230 or 120/240 | 230/400 or 240/416 |
| Rated Current (A) | 52.2/26.1 or 54.2/27.1 | 10.8 or 11.3 |
| Power Factor | 1.0 | 0.8 (Lag) |
Physical Characteristics
Dimensions & Weight
100 Kg
Dry Weight
700 mm
Length
480 mm
Width
600 mm
Height
- Design Features
- Electric StartOpen FrameHand Lift TypeAVR Equipped
