Diesel Engine for Power Generation
This diesel engine is designed for power generation applications. It features a robust construction and efficient fuel consumption.
Technical Specifications
Product Overview

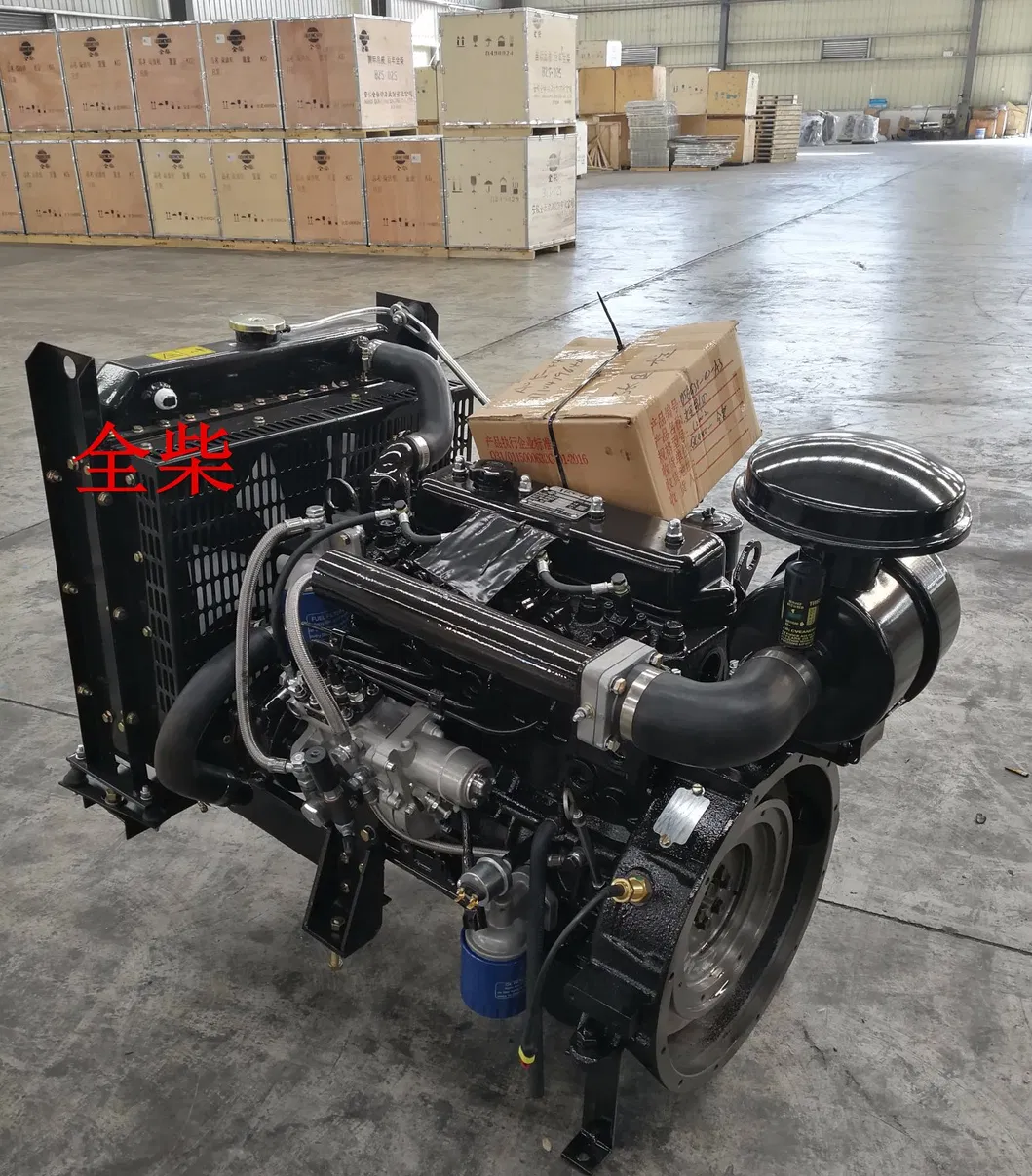

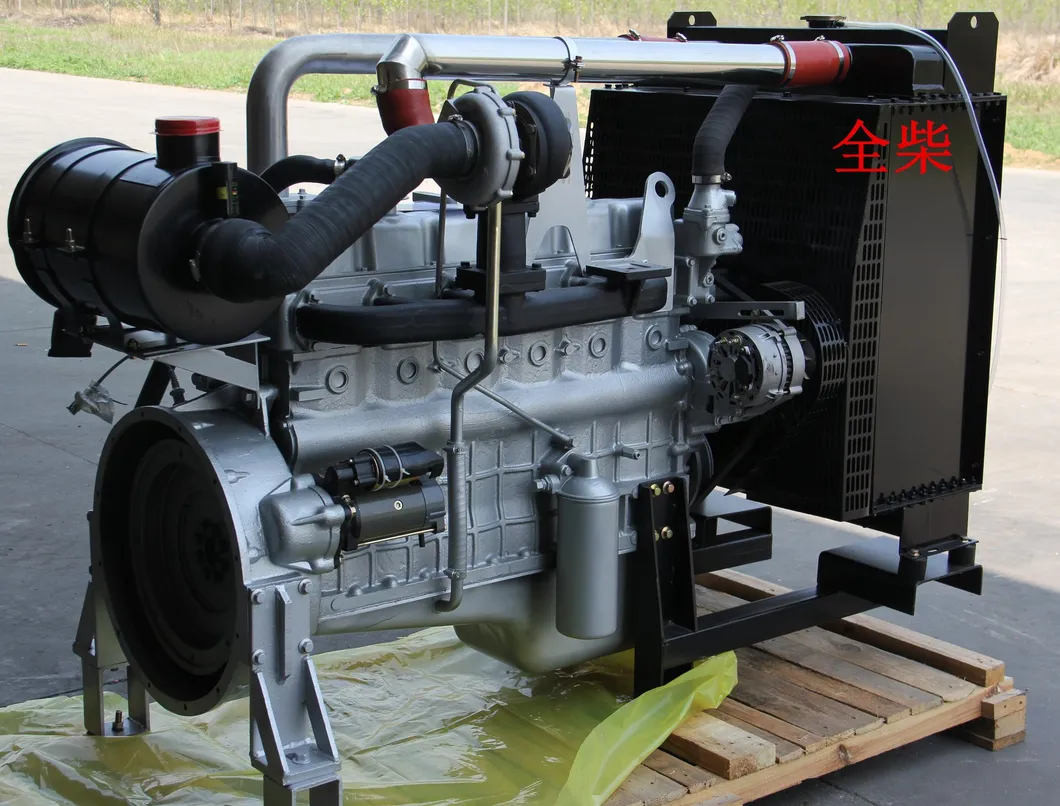

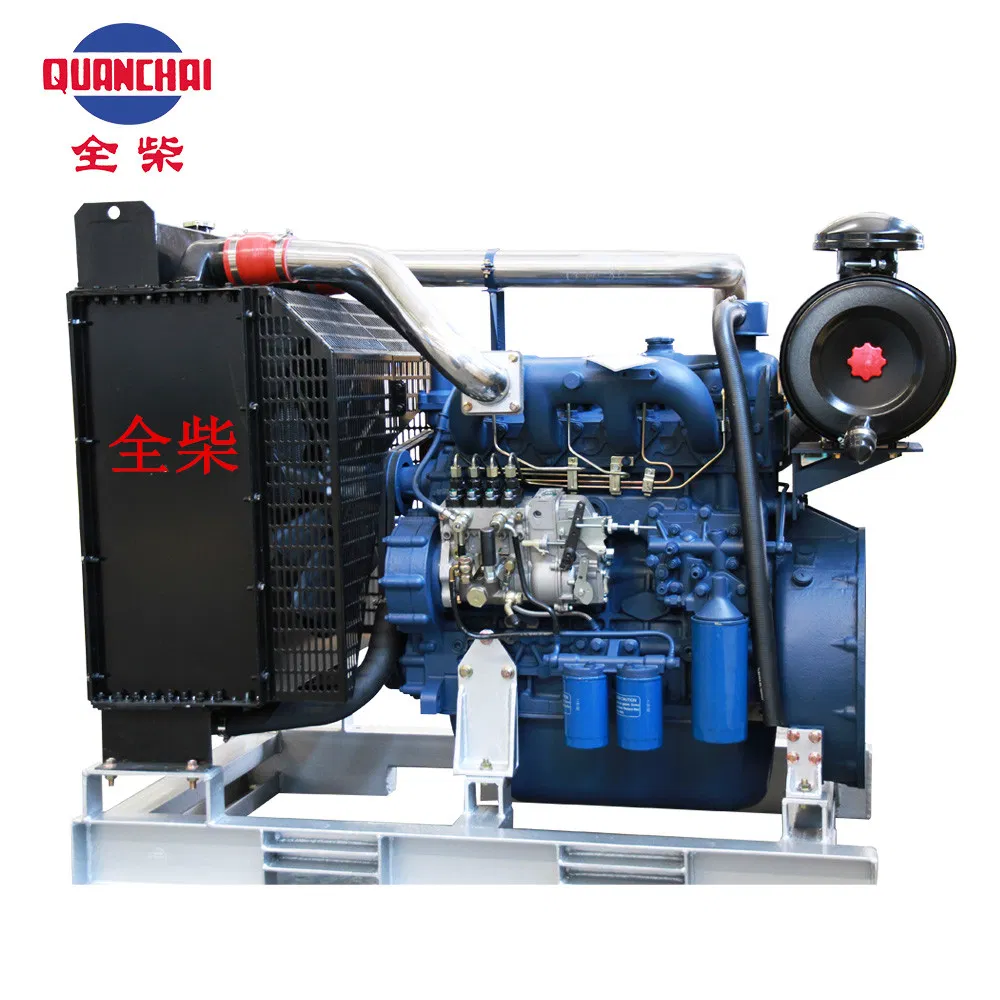

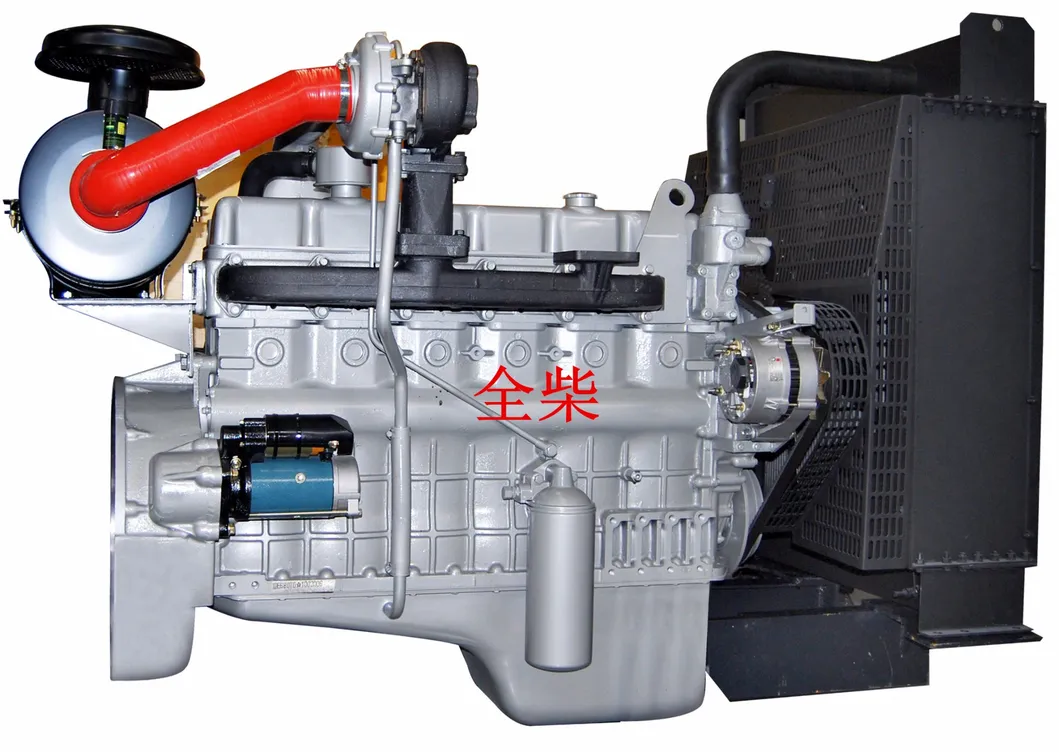

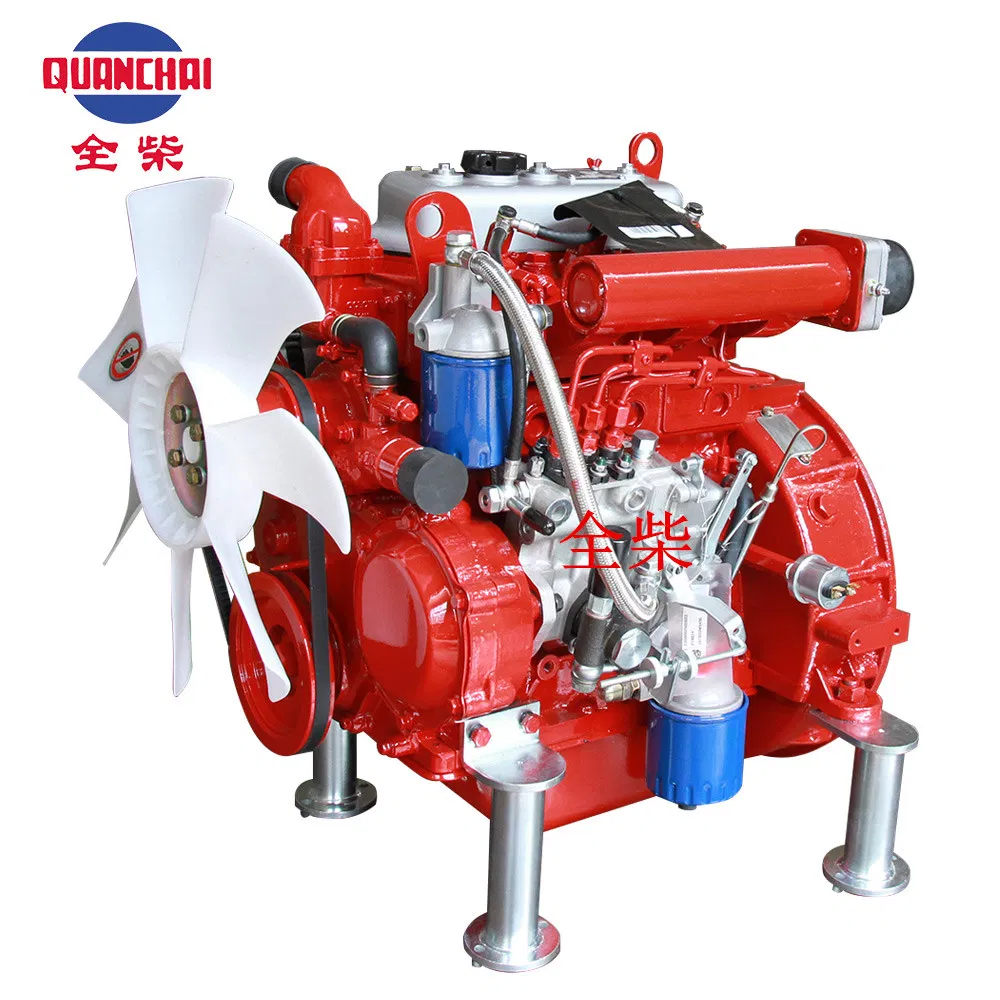

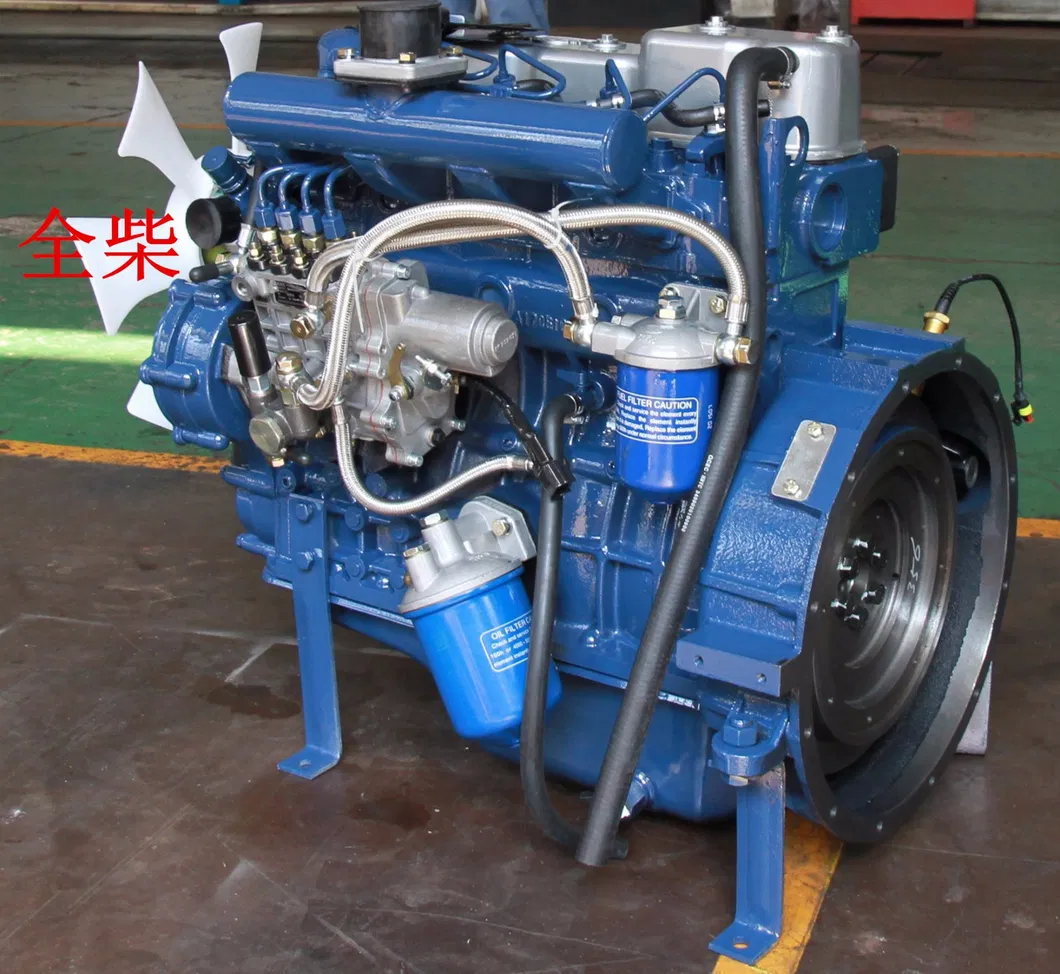

High-Performance Diesel Engines for Power Generation
These industrial diesel engines are specifically engineered for generator sets, offering robust construction and reliable performance in demanding environments. Featuring a variety of models including 3-cylinder and 4-cylinder configurations, they provide versatile power solutions for B2B applications. The engines are designed with integrated cooling systems, efficient fuel injection, and sturdy mounting frames to ensure long-term operational stability.
Model Comparison
Engine Technical Specifications
| Model | Bore & Stroke | Configuration |
|---|---|---|
| QC380D | 80 x 90 mm | 3-Cylinder |
| QC385D | 85 x 90 mm | 3-Cylinder |
| QC480D | 80 x 90 mm | 4-Cylinder |
| N485D | 85 x 100 mm | 4-Cylinder |
| QC490D | 90 x 100 mm | 4-Cylinder |
Technical Features
- Engine Cycle
- Four-stroke
- Cooling System
- Liquid-cooled with radiator and fan assembly
- Injection Type
- Direct fuel injection
- Aspiration
- Naturally AspiratedTurbochargedIntercooled
Component Details
Key Components
- Cast iron engine block and cylinder head
- Mechanical governor for speed stability
- Full-flow oil filtration system
- Heavy-duty starter motor
- Integrated air intake filter
- Robust metal mounting frame
Application
Primary Application
Diesel Generator SetsIndustrial MachineryPower Generation
