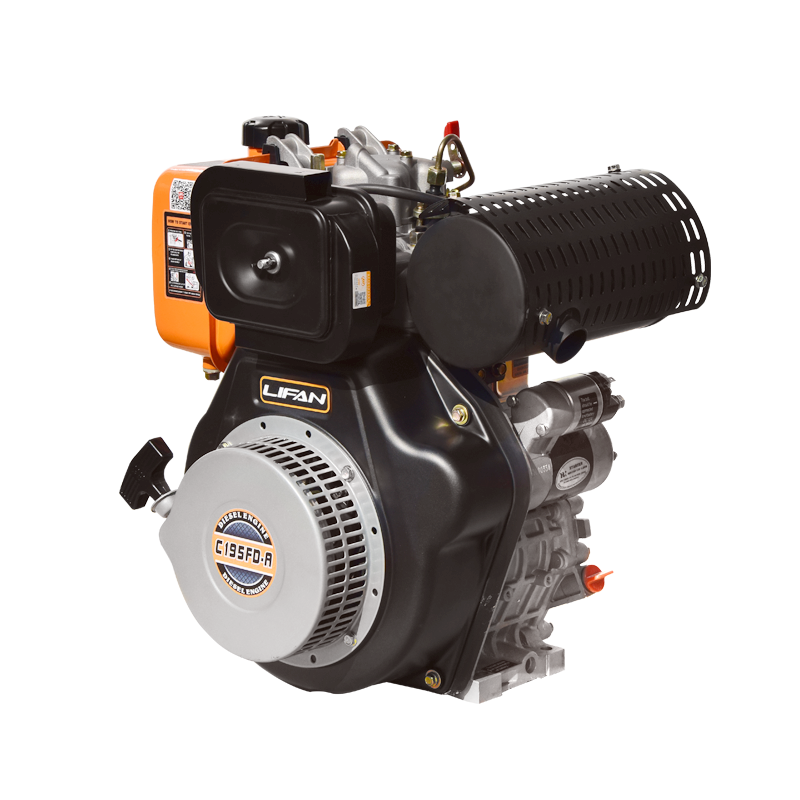

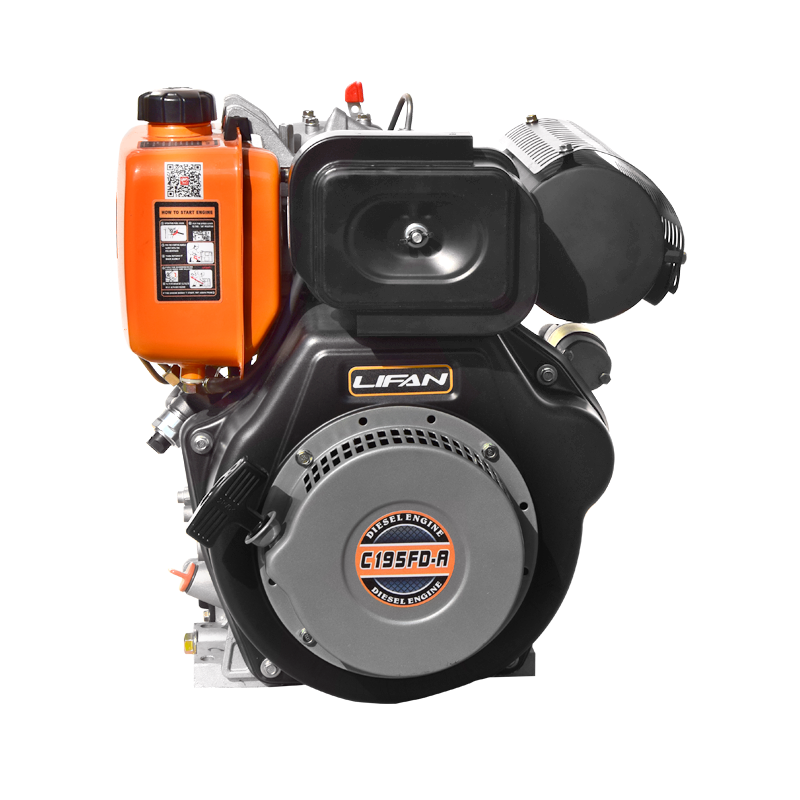

Diesel Engine for Power Generation
This diesel engine is designed for power generation and various industrial applications. Its durable construction and efficient combustion ensure reliable performance and a long service life.
Technical Specifications
Overview
Robust Diesel Power Solution
This single-cylinder, 4-stroke diesel engine is engineered for reliable power generation and industrial applications. Featuring direct injection and air-cooling, it delivers a balance of efficient performance and durability. Its compact design and electric starter system ensure ease of integration and operation for various machinery needs.
Performance Metrics
Max Output Power
10.2 kW
Max Output Power
Rated Output Power
9.2 kW
Rated Output Power
Technical Specifications
- Engine Type
- Single-cylinder, vertical, 4-stroke, direct injection, air-cooled
- Bore × Stroke
- 95 × 75 mm
- Displacement
- 532 cc
- Compression Ratio
- 19:1
- Engine Speed
- 3600 r/min
- Max Torque
- 27.3 N.m
- Specific Fuel Consumption
- ≤280 g/kW.h
- Starter System
- Electric
Capacity & Dimensions
- Fuel Tank Capacity
- 5.5 L
- Lube Capacity
- 1.65 L
- Net Weight
- 50 kg
- Packing Size (L×W×H)
- 580 × 500 × 610 mm
Logistics
Container Loading Capacity
| Container Type | Units |
|---|---|
| 20GP | 176 |
| 40GP | 352 |
| 40HQ | 352 |
