Diesel Engine for Generator Sets
This diesel engine provides fast and easy starting for generator sets with power outputs of 50kW to 88kW. It is engineered for reliable power generation in diverse applications.
Technical Specifications
Overview
High-Performance Diesel Engines for Power Generation
These diesel engines are specifically engineered for generator sets, offering a fast and easy start mechanism for reliable backup and prime power applications. With a power range spanning from 50kw to 88kw, these units provide versatile solutions for various industrial and commercial energy needs. The robust construction and efficient cooling systems ensure long-term durability and stable performance in demanding environments.
Performance Metrics
Available Power Outputs
50 kw
Minimum Power
88 kw
Maximum Power
- Power Variants
- 50kw55kw60kw80kw88kw
Engine Models
Available Engine Models
| Series | Model Identifiers |
|---|---|
| QC Series | QC380D, QC385D, QC480D, QC490D, QC4112ZLD, QC6112ZLD |
| N Series | N485D |
| JR Series | 4JR3ABD |
Technical Design
Key Technical Features
- Four-stroke cycle operation
- Direct fuel injection system

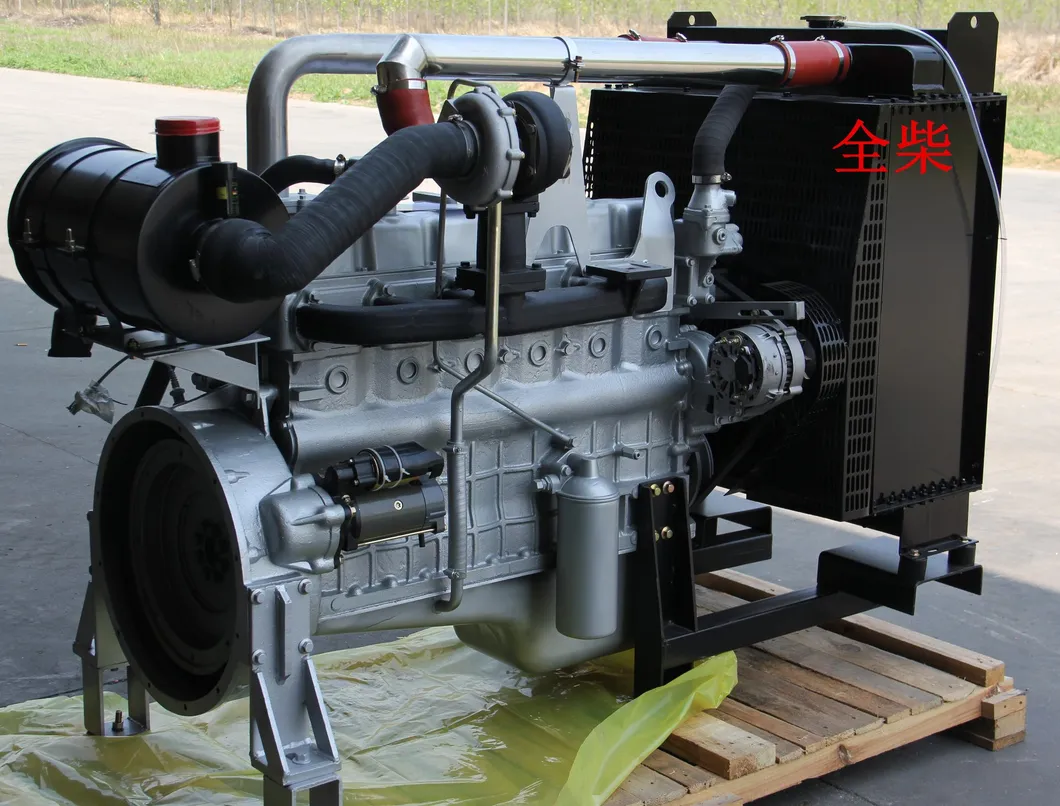

- Turbocharged aspiration (on select models)
- Robust cast iron engine block and cylinder head
- Integrated radiator cooling system
- Heavy-duty flywheel for smooth power delivery
- Starting System
- Electric starter motor for fast and easy start
Maintenance & Reliability

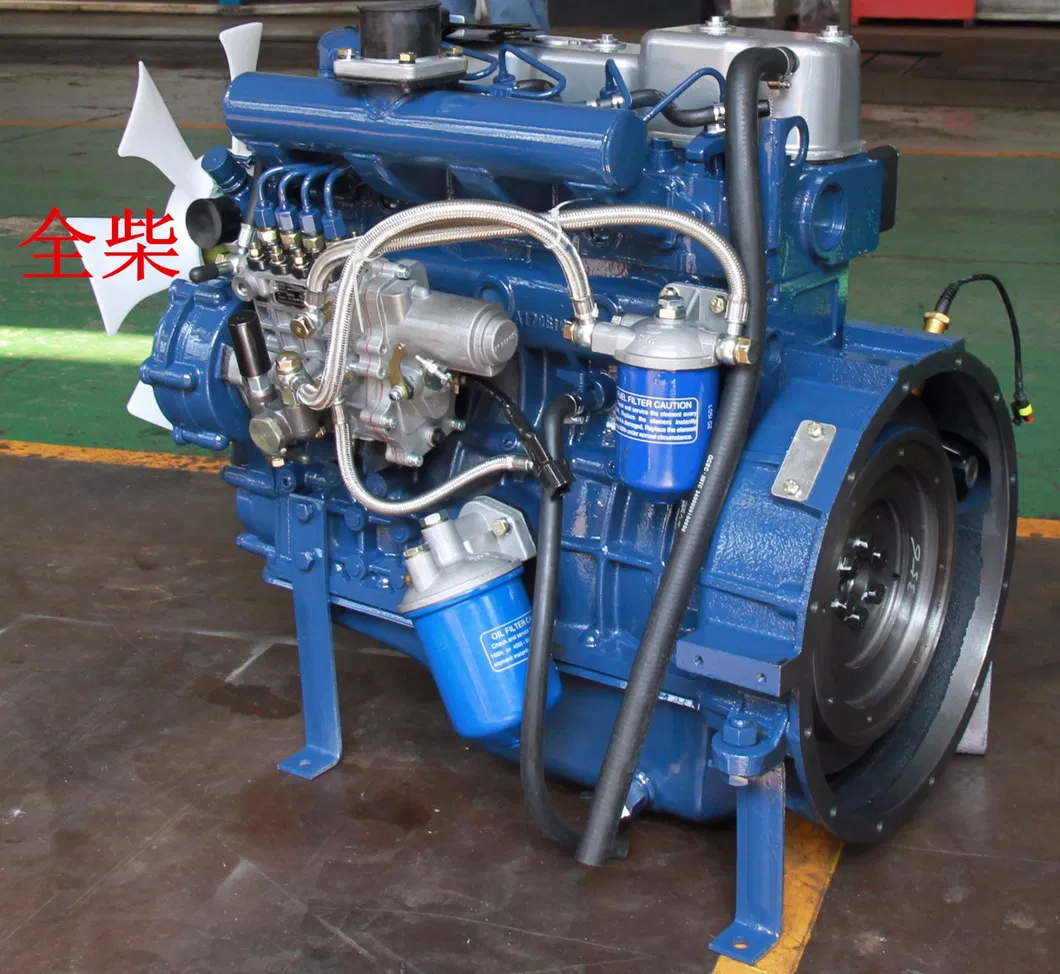

Filtration & Protection
- High-efficiency oil filters
- Multiple fuel filter configuration
- Industrial-grade air intake system
- Integrated water pump for temperature management

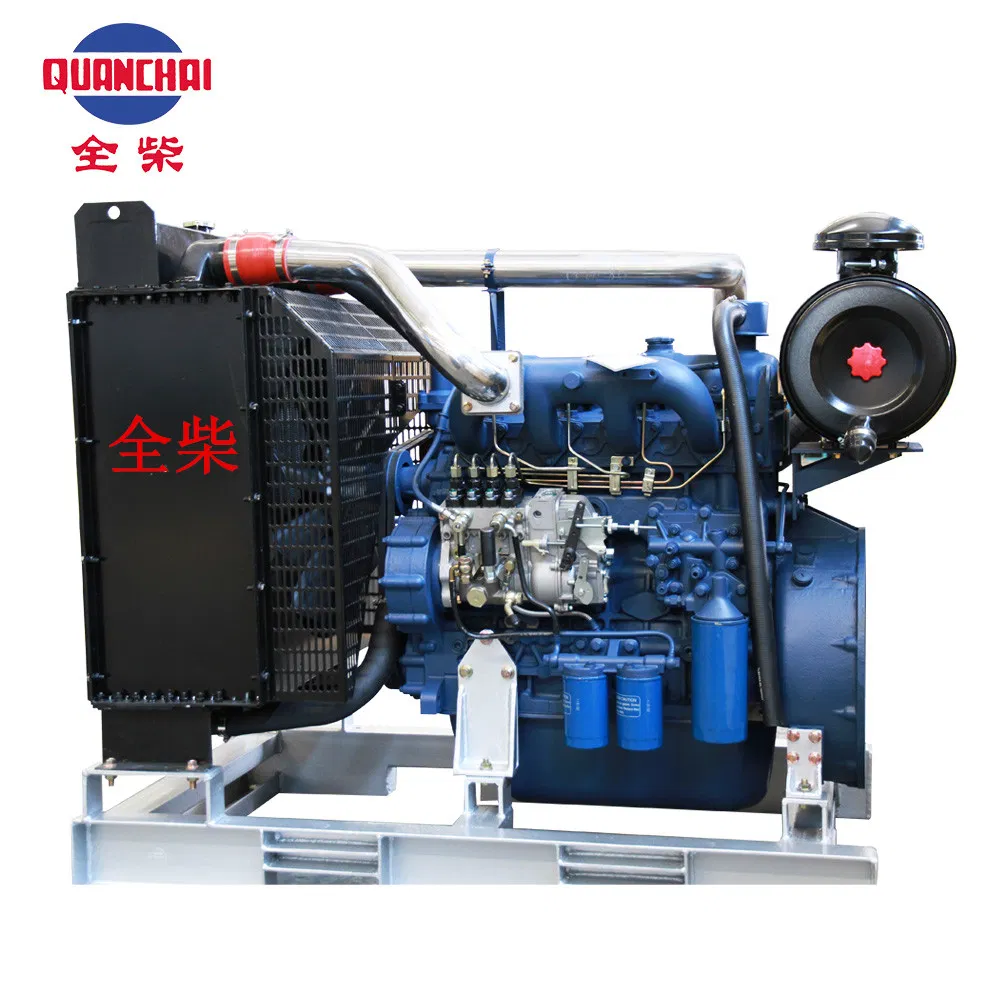

- Installation Base
- Sturdy metal frame/base for stable operation and easy installation
