Diesel Engine for Generator Sets
This diesel engine is designed for generator sets. It features direct injection for easy starting, low fuel consumption, and good economy.
Technical Specifications
Product Overview

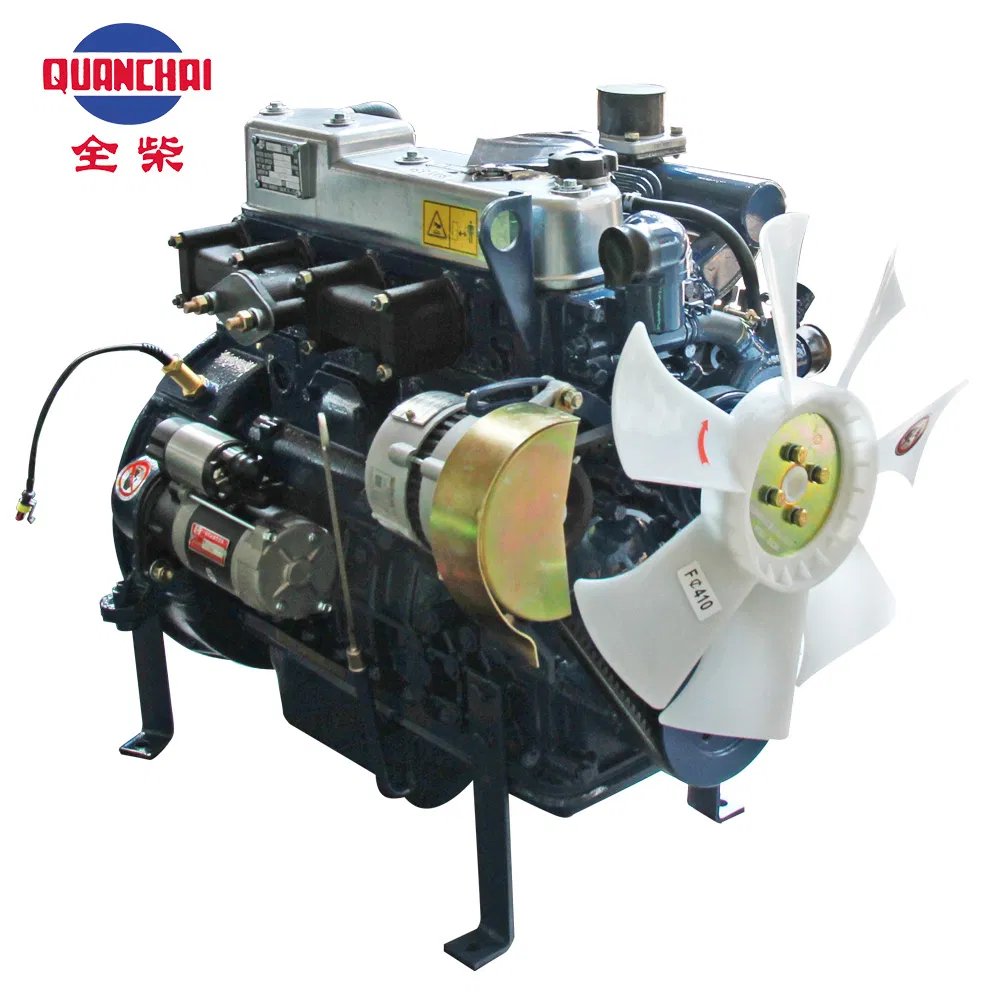

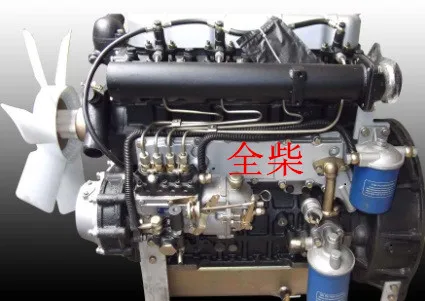

High-Performance Diesel Engine for Generator Sets
The N485D is a robust diesel engine specifically engineered for reliable power generation in industrial and commercial applications. Featuring a direct injection combustion chamber, it offers easy starting, low fuel consumption, and superior economic efficiency. Its compact and lightweight design ensures easy installation while providing strong power output with minimal vibration for stable operation.
Performance Metrics
Rated Performance
17 kW
Standby Power (1500 RPM)
20 kW
Standby Power (1800 RPM)
240 g/kW.h
Max Fuel Consumption
Engine Specifications
Cylinder Liner Type
Wet Type
- Model
- N485D
- Displacement
- 2.156 L
- Bore x Stroke
- 85mm x 95mm
- Intake Way
- Natural Intake
Technical Interface
Flywheel & Housing
- Flywheel Housing: SAE 4#
- Flywheel: SAE 7.5"
Key Features
Main Advantages
- Direct injection combustion for better economy
- Compact structure and light weight for easy installation
- High reliability with vehicle-grade key spare parts
- Excellent speed-governing and low vibration
Operational Characteristics
Speed & Power Correlation
| Speed (r/min) | Standby Power (kW) |
|---|---|
| 1,500 | 17 |
| 1,800 | 20 |

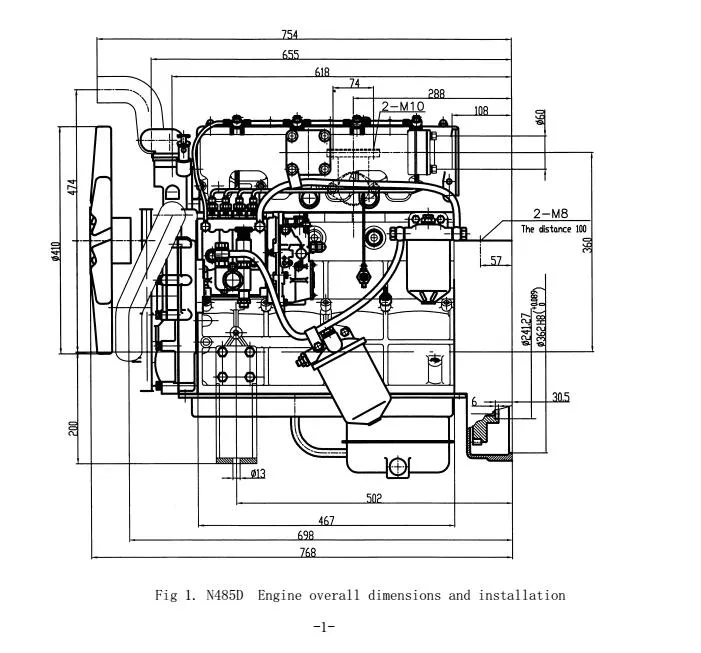

Dimensions & Installation
Installation Dimensions
- Overall Length: 754mm
- Overall Width: 502mm
- Fan Diameter: 410mm
- Mounting Hole Specs: 2-M10, 2-M8
