Diesel Engine for Generator Sets
This diesel engine is turbocharged and intercooled for optimal performance. It is designed for use in generator sets.
Technical Specifications
Overview
High-Performance Diesel Engine for Power Generation

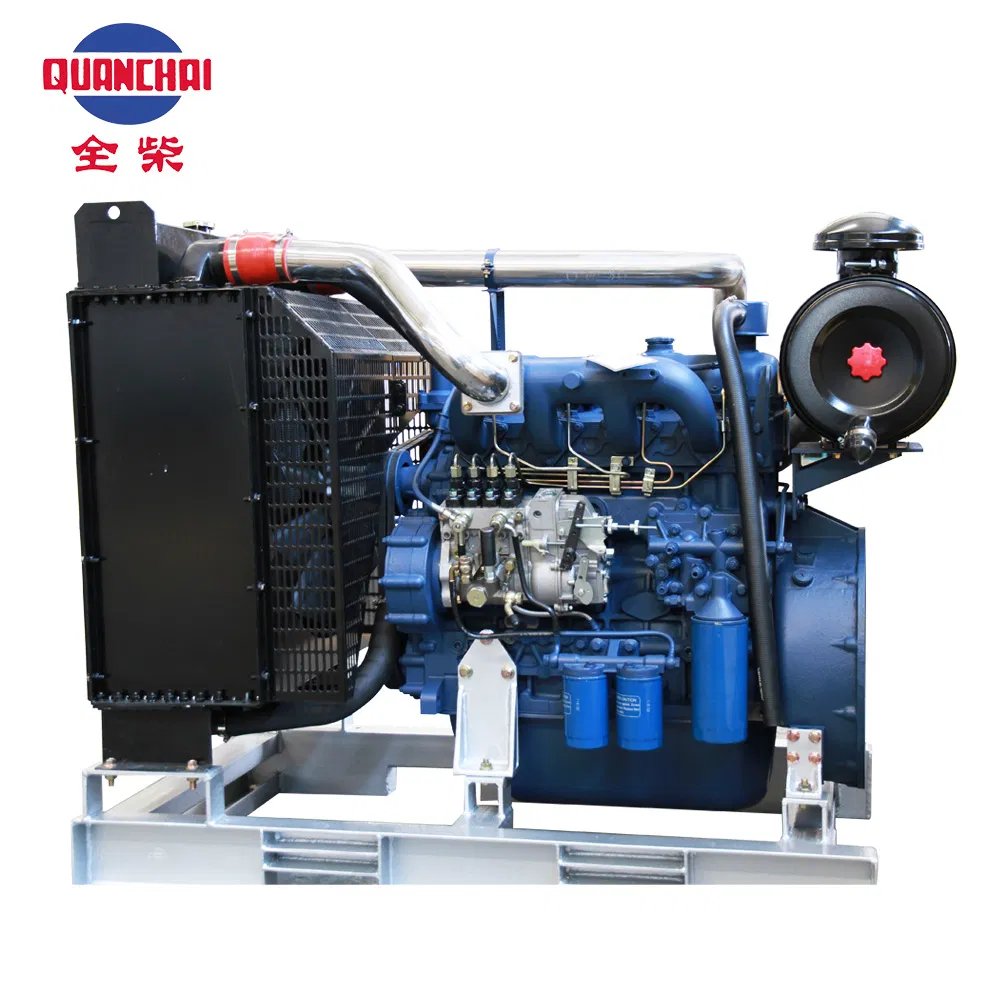

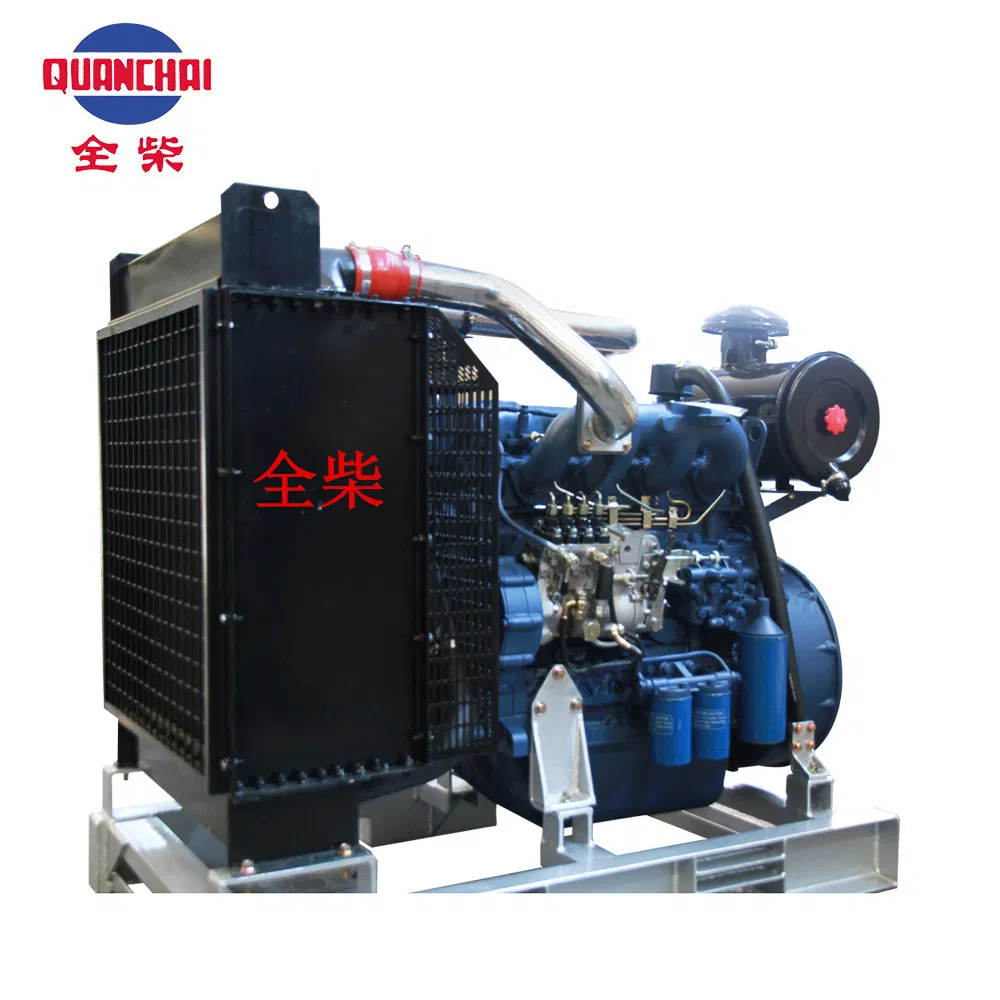

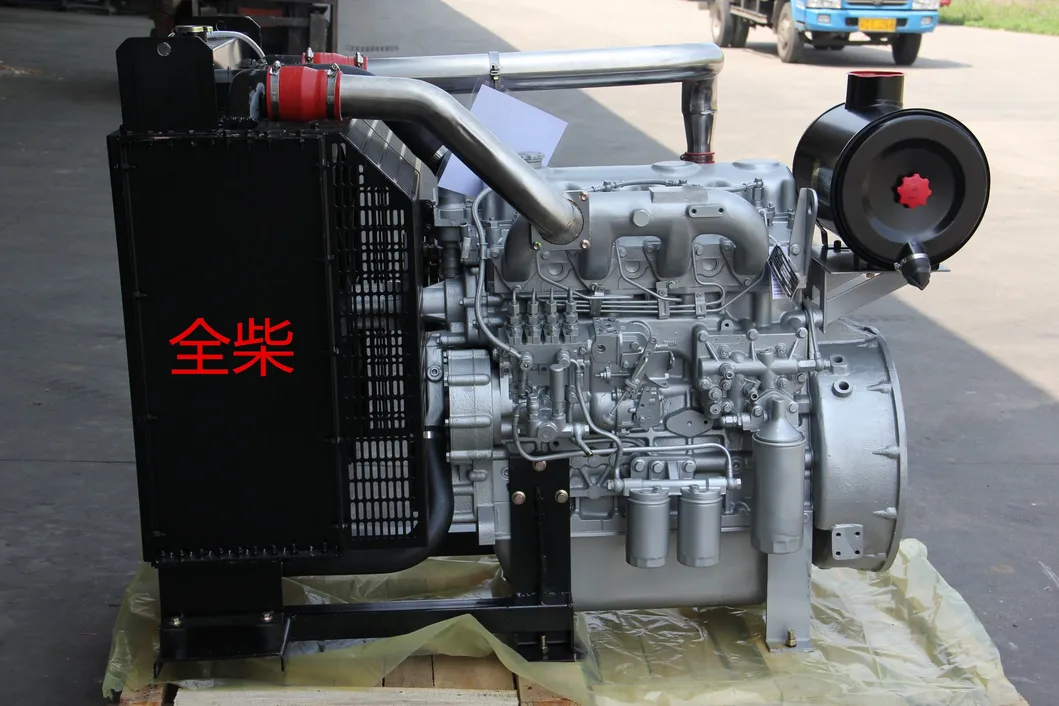

The QC4112ZLD is a turbocharged and inter-cooled diesel engine specifically engineered for reliable generator set applications. It features a direct injection combustion chamber for easy starting and enhanced fuel economy, making it an efficient choice for industrial power needs. With a compact and lightweight design, this engine offers strong power output with minimal vibration and superior speed-governing capabilities.
Core Performance
Performance Metrics
100 kW
Standby Power
1,500 r/min
Rated Speed
5.32 L
Displacement
Technical Specifications
Engine Technical Data
| Parameter | Value |
|---|---|
| Model | QC4112ZLD |
| Bore & Stroke | 112 x 135 mm |
| Cylinder Liner Type | Wet |
| Intake Method | Turbocharged and Inter-cooled |
| Fuel Consumption Ratio | ≤ 196 g/(kW·h) |
| Flywheel Cover Type | SAE 3# |
| Flywheel Type | SAE 11.5" |
Key Features
Main Features
- Direct injection combustion chamber for better economy
- Compact structure and light weight for easy installation
- Strong power with low vibration levels
- High reliability with parts comparable to high-speed vehicle engines
- Excellent speed-governing performance
Applications
- Suitable Applications
- Generator SetsIndustrial Power UnitsStationary PowerConstruction EquipmentAgricultural Machinery
