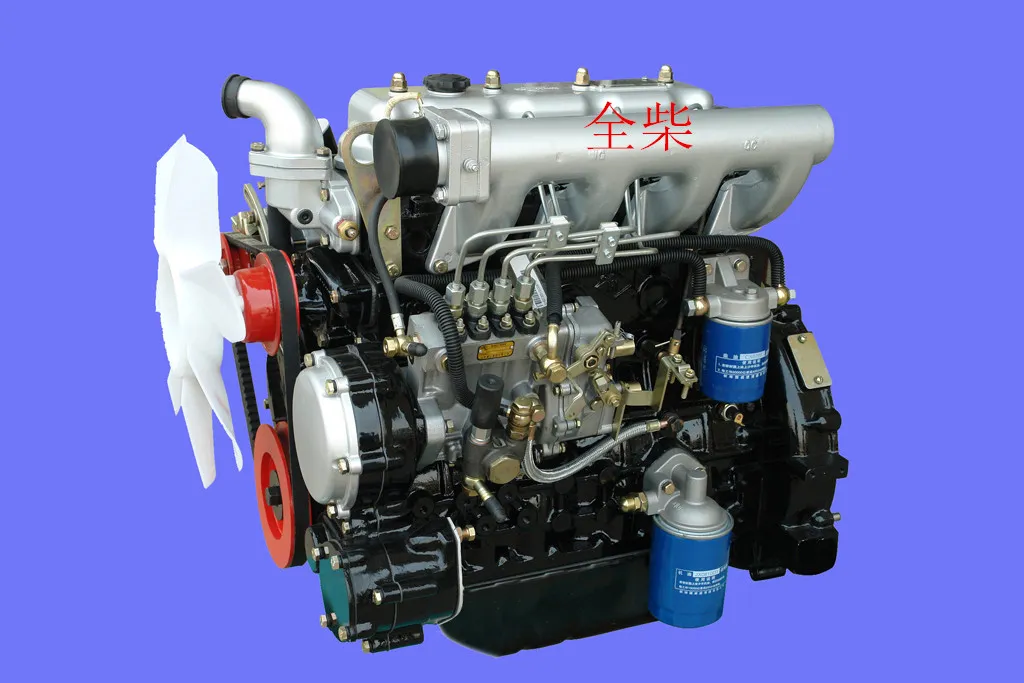

Diesel Engine for Forklift Trucks
This diesel motor engine is specifically designed for forklift applications. It integrates advanced engine design concepts for high reliability and strong power.
Technical Specifications
Overview
High-Performance Forklift Power Solution
This diesel engine series is specifically engineered for forklift trucks ranging from 1.5 to 4.5 tons, utilizing advanced 3D design and CAE analysis to ensure structural stiffness and high reliability. Featuring a direct injection combustion chamber, the engine provides easy starting and excellent fuel economy for demanding industrial environments. Its compact and lightweight design allows for convenient installation while delivering strong power and stable hydraulic PTO output.
Technical Performance
Performance Ratings
39 kW
Rated Output
2,650 rpm
Rated Speed
157 N.m
Max Torque
Engine Specifications
- Model
- QC-490GA
- Number of Cylinders
- 4
- Bore & Stroke
- 90 x 105 mm
- Displacement
- 2.67 L
Efficiency & Emissions
Emission Standard
State Two
- Fuel Consumption Rate
- 232 g/kw.h
Key Features
Core Advantages
- Direct injection combustion for low oil consumption
- Long stroke design for large torque backup
- Strengthened gear system with large flow cooling nozzle
- Stable hydraulic PTO power output
- Low vibration and noise levels
- High parts universality for easy maintenance
Applications
- Recommended Usage
- 1.5 - 4.5 Ton ForkliftsMultidirectional ForkliftsIndustrial Power Sources
