Diesel Engine for Forklift Trucks
This diesel engine provides a reliable power source for multidirectional forklifts. The QC490GA model features a 4-cylinder design, delivering efficient performance for various forklift applications.
Technical Specifications
Product Overview
High-Performance Forklift Power Solution

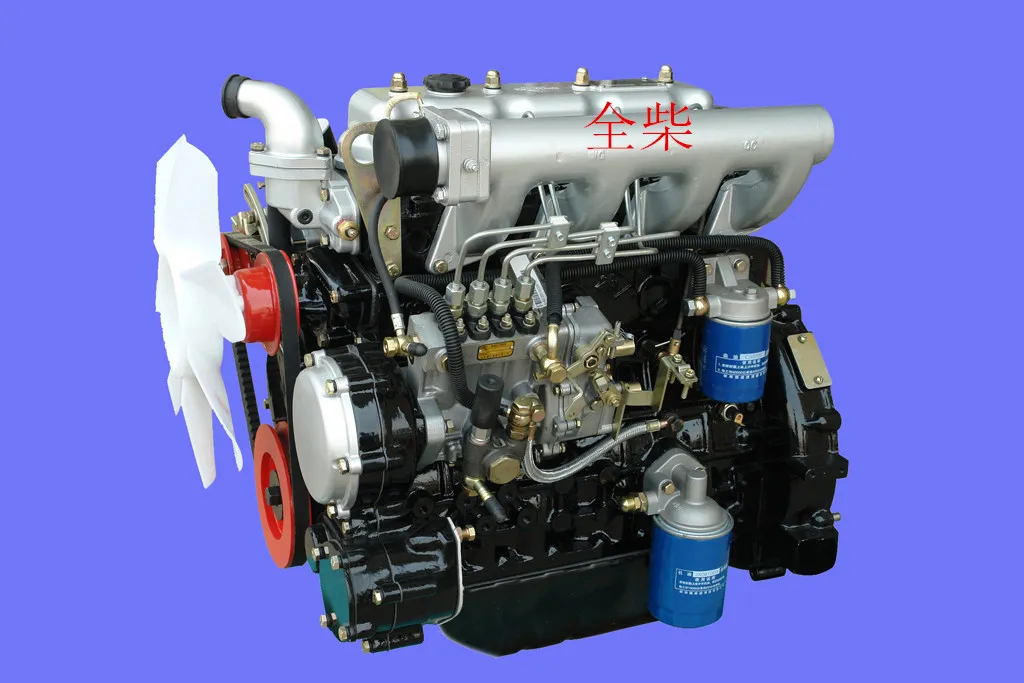

The QC490GA diesel engine is a high-performance power solution specifically engineered for 1.5 to 4.5-ton forklift trucks. Utilizing advanced 3D design software and CAE analysis, this engine delivers robust power, high torque backup, and exceptional reliability in demanding industrial environments. Its compact, lightweight design ensures easy installation, while the direct injection combustion system promotes efficient fuel consumption and stable performance.
Technical Specifications
Emission Standard
State Two
- Model
- QC490GA
- Number of Cylinders
- 4
- Bore & Stroke
- 90*105 mm
- Displacement
- 2.67 L
Performance Metrics
Rated Output
39 KW
Rated Output
2,650 rpm
Rated Speed
Max Torque
157 N.m
Max Torque
1,980 rpm
Speed at Max Torque
- Fuel Consumption Rate
- ≤232 g/kw.h
Key Features
Operational Advantages
- Direct injection combustion system for easy starting
- Low fuel consumption and high economic efficiency
- Long stroke design for large torque backup
- Strengthened gear system with large flow cooling nozzle
- Stable hydraulic PTO power output
- Low noise and vibration levels
- Compact and lightweight structure for easy installation
