Technical Specifications
Product Overview

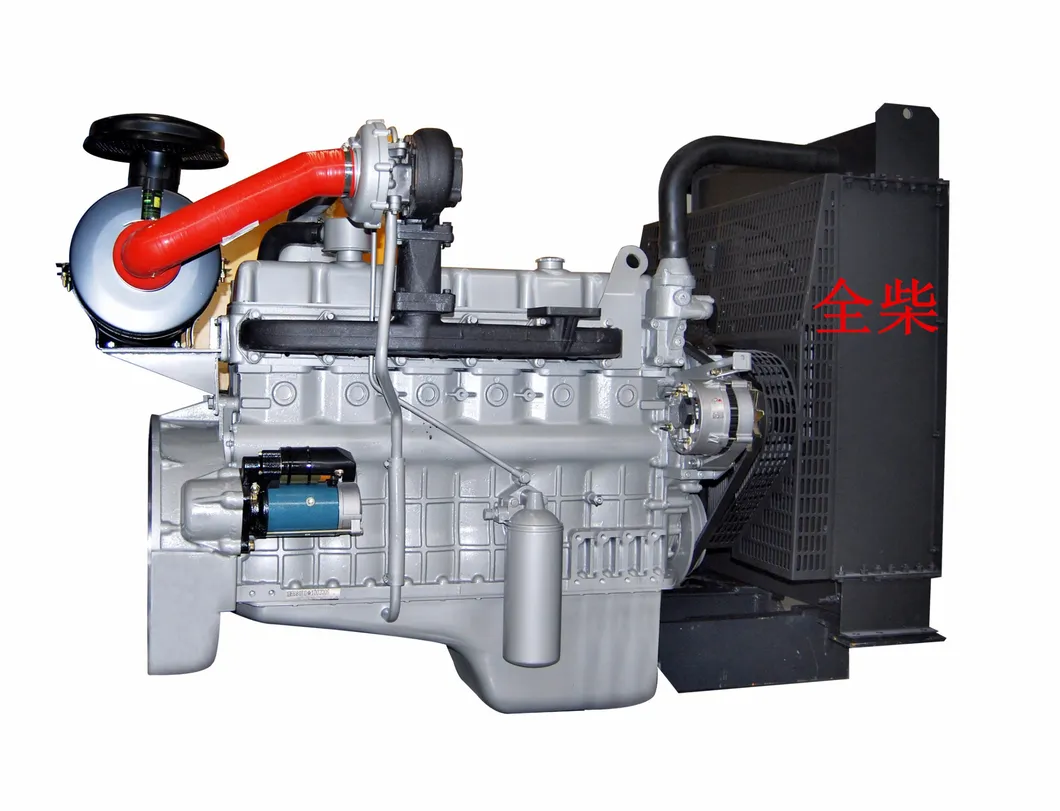

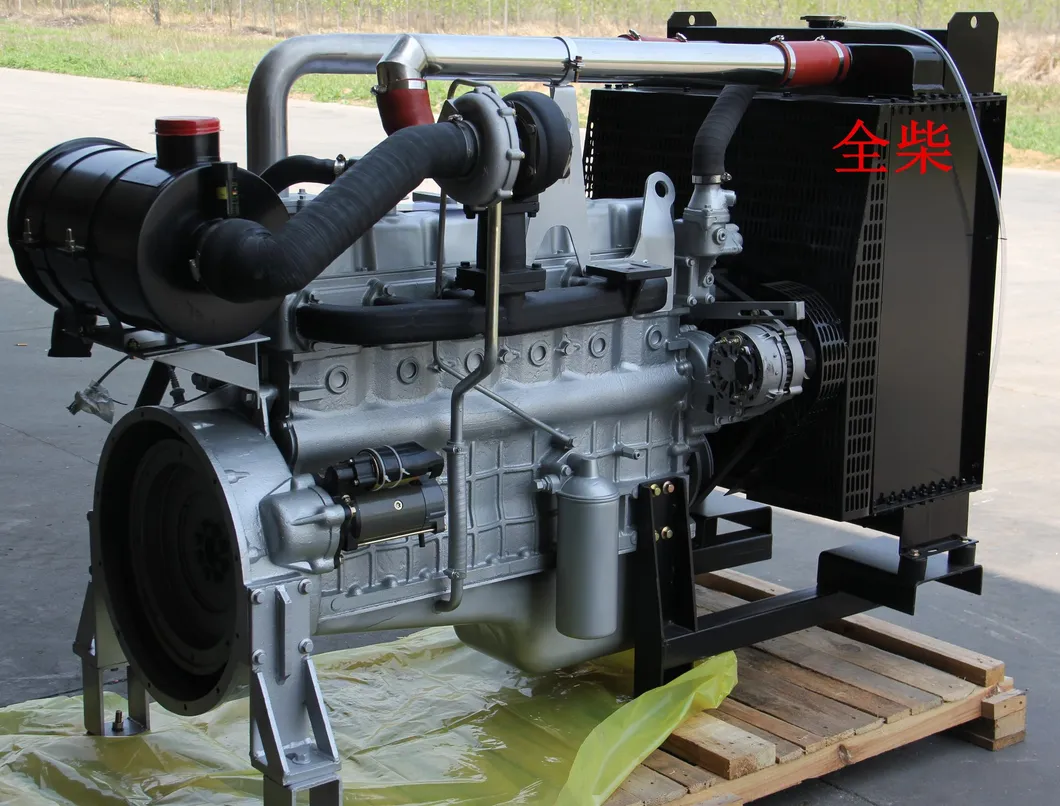

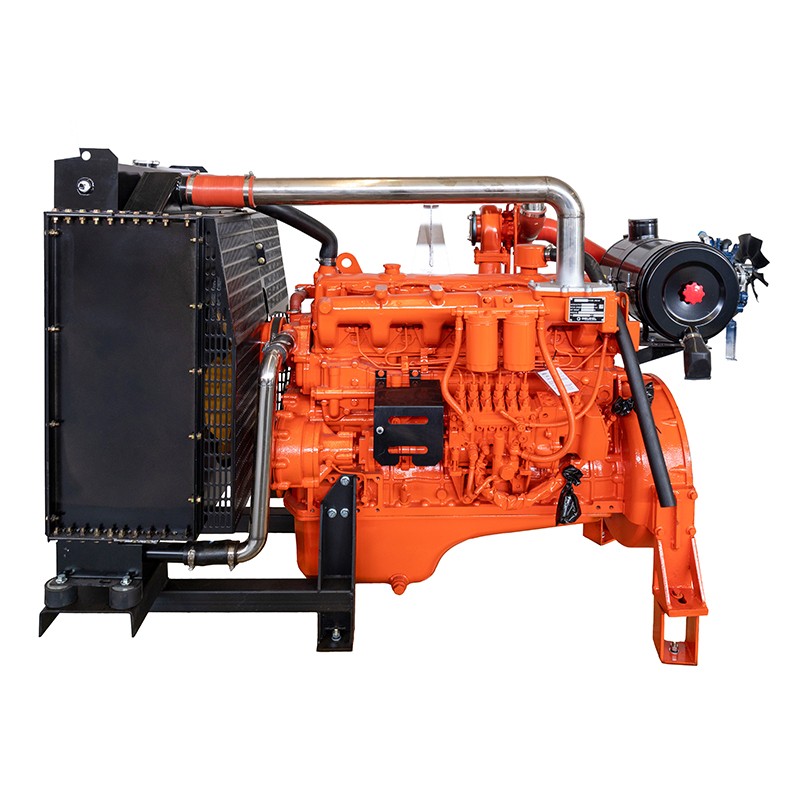

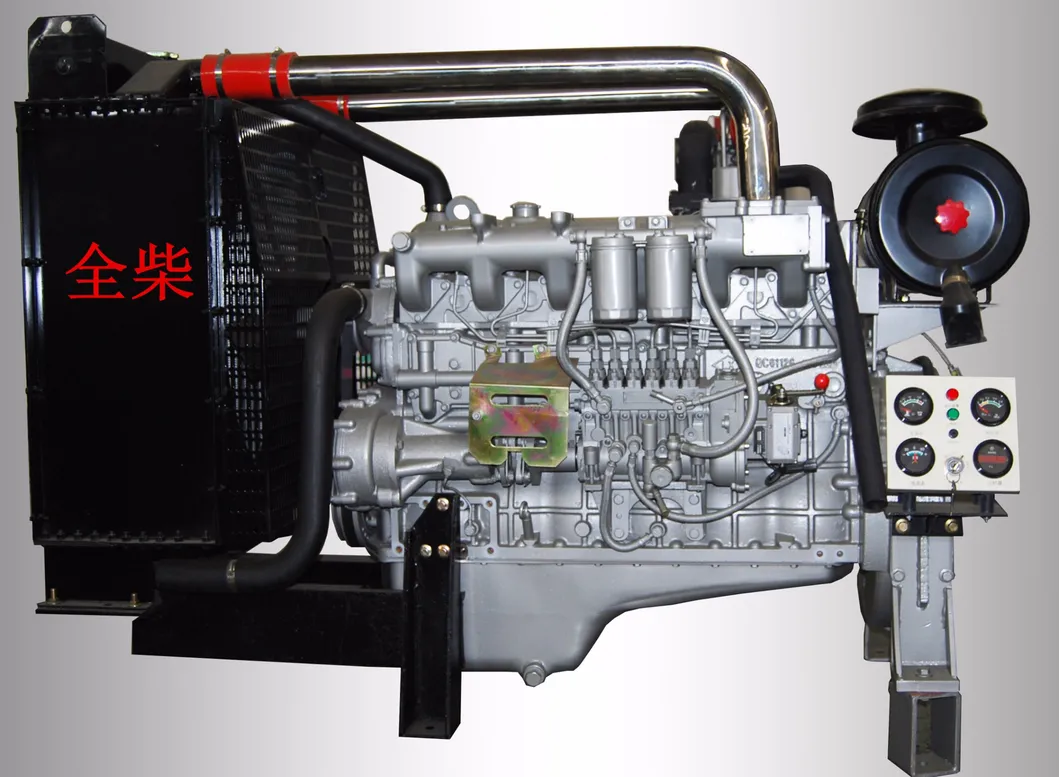

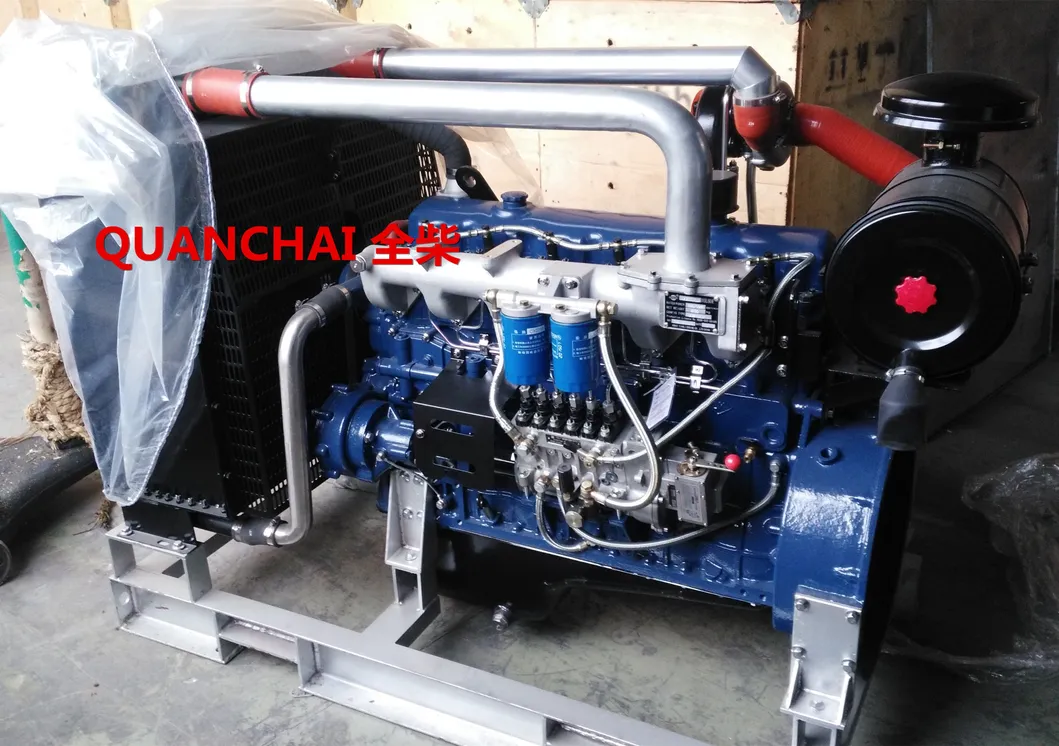

High-Performance Diesel Engine for Power Generation
This 165kW diesel engine is specifically engineered for generator sets, offering a robust and reliable power source for industrial and commercial applications. Featuring a direct injection combustion chamber, it ensures an easy start and superior fuel economy. The vertical, in-line configuration is combined with turbocharging and inter-cooling technologies to maximize efficiency and performance in demanding environments.
Performance Metrics
Power Ratings
165 kW
Standby Power (Min)
180 kW
Standby Power (Max)
1,500 r/min
Rated Speed
Engine Configuration
Cylinder Liner Type
Wet Type
- Model
- QC6112ZLD
- Engine Type
- Vertical, in-line, water-cooled, four-stroke, turbocharged and inter-cooled
- Displacement
- 7.98 L
- Bore & Stroke
- 6-112 x 135 mm
Technical Specifications
Operating Parameters
| Parameter | Value at 1500 r/min | Value at 1800 r/min |
|---|---|---|
| Fuel Consumption Ratio | ≤ 198 g/kW·h | ≤ 196 g/kW·h |
| Smooth Speed Rate | ≤ 5% | ≤ 5% |
Mechanical Interface
Housing & Flywheel
- Flywheel Cover: SAE 2#
- Flywheel Type: SAE 11.5"
Key Features
- Advantages
- Direct InjectionEasy StartLow Fuel ConsumptionTurbochargedInter-cooledWater-cooled
