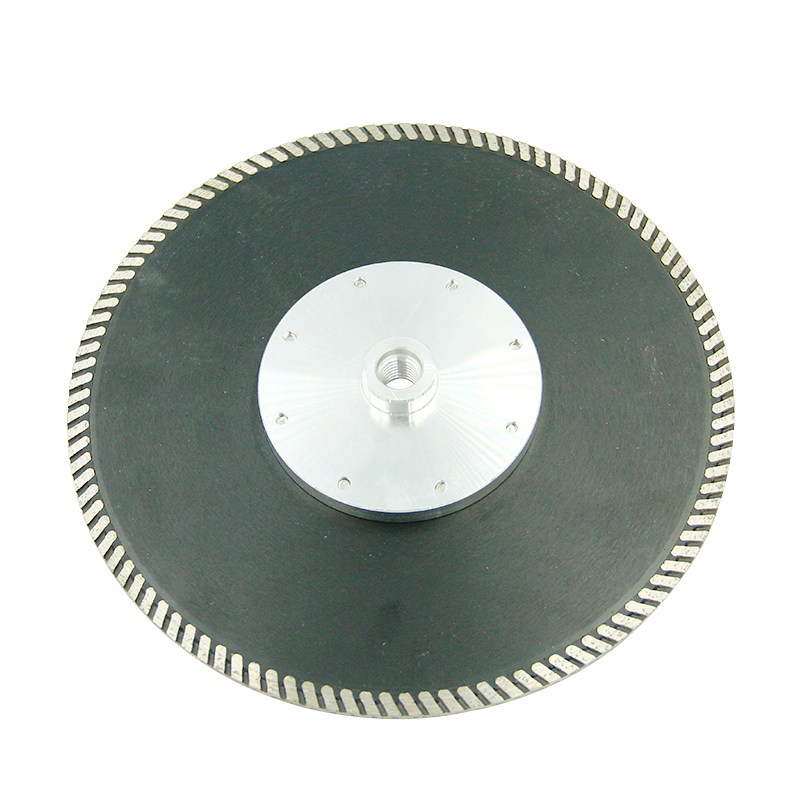

Diamond Cutting and Grinding Disc
This diamond cutting and grinding disc is designed for efficient material removal and surface preparation. It features high-quality diamond segments and an optimized segment geometry for aggressive cutting and grinding performance on concrete, stone, and masonry.
Technical Specifications
Product Overview
High-Performance Diamond Disc
This diamond cutting and grinding disc is engineered for professional construction and industrial applications. It features a sintered hot-pressed segment design that ensures aggressive cutting capabilities while maintaining a smooth, clean finish. Built with a high-alloy, heat-treated steel core, the disc minimizes vibration and maximizes durability, making it an ideal choice for cutting and grinding concrete, stone, and masonry.
Technical Specifications
- Diameter Range
- 115 - 230 mm
- Segment Height
- 8 mm
- Segment Thickness
- 2.8 - 3.5 mm
- Body Thickness
- 1.8 - 2.2 mm
- Bore Diameter
- 22.2 mm (7/8 inch)
Materials & Construction
- Body Material
- 65Mn Steel
- Segment Material
- Diamond and Metal powder
Compatibility & Usage
Tool Compatibility
- Angle Grinders
- Marble Cutters
- Compatible Materials
- ConcreteReinforced ConcreteExposed AggregateGraniteQuarry SlabsSand-lime StoneBrickMasonry
Packaging & Options
Available Packaging
Color BoxWhite BoxDouble BlisterPVC BagBlister Card
