Delta Robot for High-Speed Sorting and Packing
This delta robot is designed for high-speed holding, unholding, and sorting operations. It is widely used in electronics, light industry, food, and medicine.
Technical Specifications
Overview
High-Speed Delta Robot
This high-speed, high-precision parallel robot is engineered for rapid pick-and-place, assembly, and sorting operations. Featuring a rigid frame construction for enhanced stability and accuracy, it integrates advanced control algorithms to ensure smooth, precise motion even at high speeds. Its compact design allows for seamless integration into space-constrained environments, making it an ideal solution for the electronics, food, medicine, and light industry sectors.
Application Fields
- Suitable Industries
- ElectronicsLight IndustryFood ProcessingMedical/PharmaceuticalPackaging
Technical Performance
Key Performance Metrics
120 m/s²
Top Acceleration
10 m/s
Top Velocity
0.05 mm
Repeatability
Technical Specifications
Model Specifications
| Specification | C3-1100 | C4-1000 |
|---|---|---|
| Degrees of Freedom | 3 | 4 |
| Rated Loading (kg) | 1 | 1 |
| Max Loading (kg) | 3 | 3 |

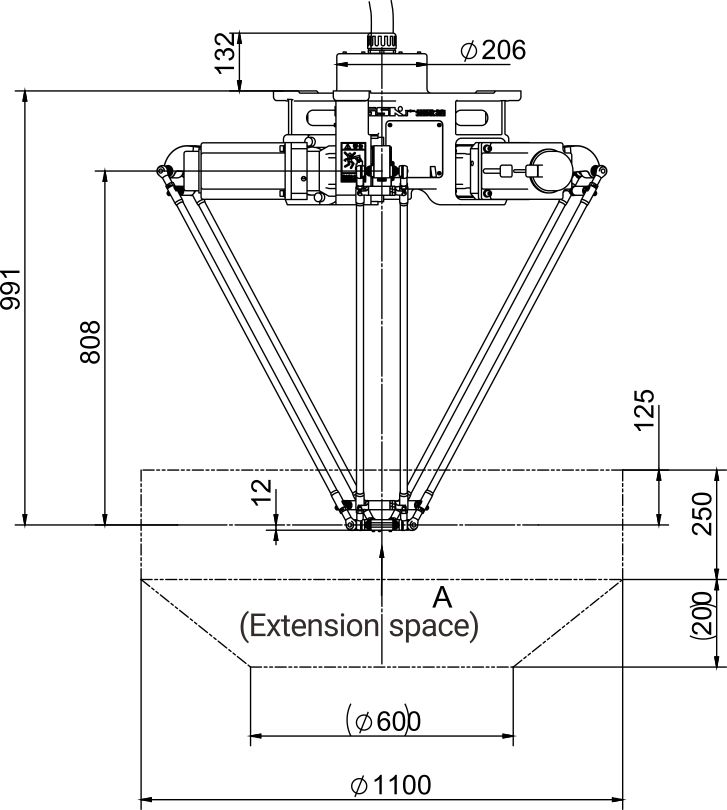

| Working Range (mm) | Φ1100x250 | Φ1000x250 |
| Machine Weight (kg) | 95 | 110 |
- Drive System
- AC Servo Drive
- Revolving Angle
- 180 °
