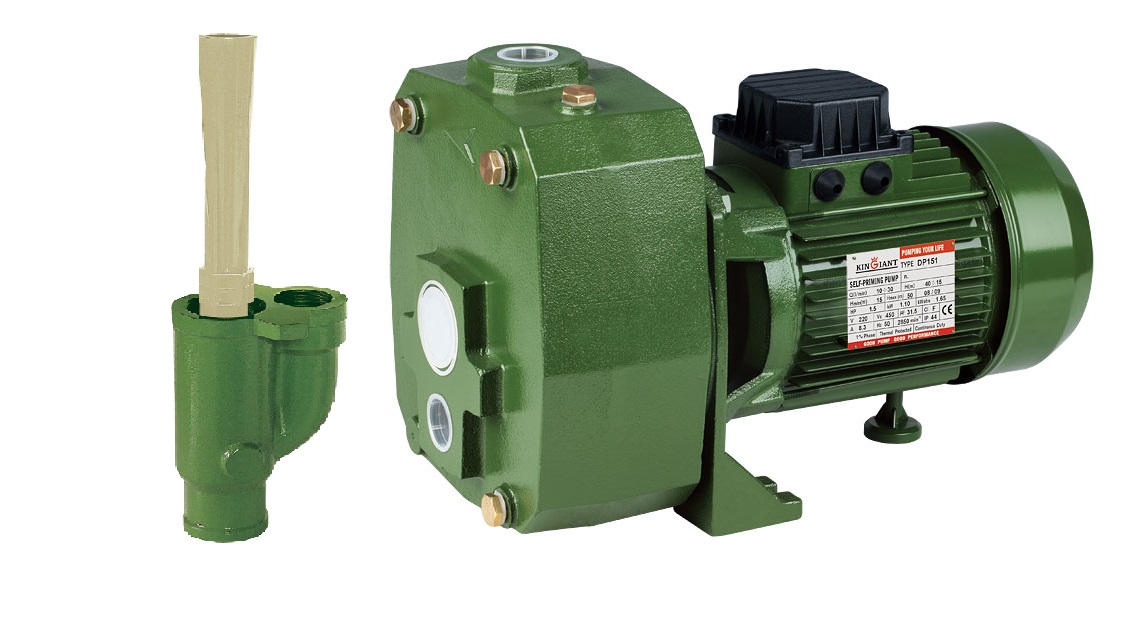

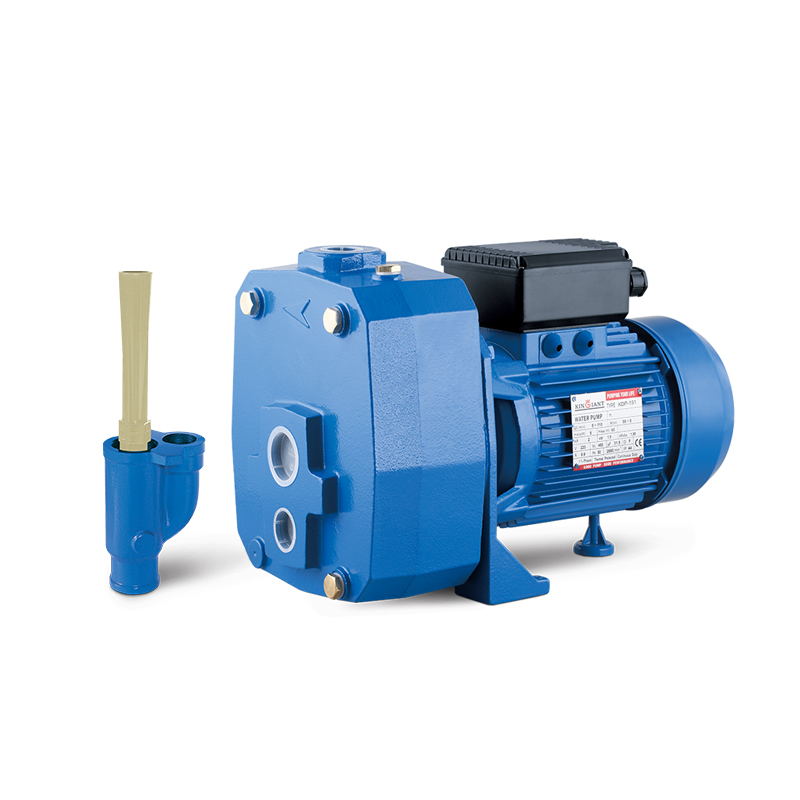

Deep Well Jet Pump
This jet pump is engineered for efficient water extraction from deep wells. Its self-priming design eliminates manual priming after the initial setup, ensuring reliable performance.
Technical Specifications
Product Overview
High-Efficiency Deep Well Solution
This self-priming jet pump is specifically engineered for reliable water extraction from deep wells, capable of reaching water levels between 7 and 20 meters. Designed for versatility, it supports applications ranging from residential water supply and irrigation to industrial pressure boosting. Its robust construction ensures consistent performance and durability, even in demanding operational environments.
Performance Metrics
Key Performance Indicators
50 m
Max Head
50 L/min
Max Flow Rate
0.75 kW
Power Output
2,850 min-1
Speed
Technical Specifications
Electrical Characteristics
| Parameter | Value |
|---|---|
| Voltage | 220 V |
| Frequency | 50 Hz |
| Current | 1.1 A |
| Duty Cycle | S1 (Continuous) |
- Ingress Protection Rating
- IP55
- Operating Suction Depth
- 7-20 m
Features & Applications
Key Advantages
- Self-priming capability for easy operation
- Robust construction for long-lasting durability
- Optimized impeller design for high suction lift
- Thermal protection included
- Suitable Applications
- Residential Water SupplyAgricultural IrrigationPressure BoostingIndustrial Use
