Technical Specifications
Overview

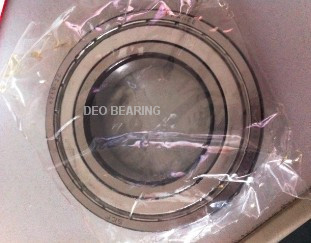

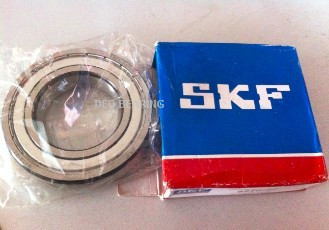

Deep Groove Radial Ball Bearing 6211ZZ
This deep groove ball bearing is designed for high-speed applications, offering the ability to support both axial and radial loads simultaneously. The non-dismantlable design ensures structural integrity and ease of use in various industrial settings. Featuring metal shields on both sides, this bearing is pre-lubricated and protected against contaminants, significantly reducing maintenance requirements.
Technical Dimensions
Dimensional Specifications
| Parameter | Value (mm) |
|---|---|
| Bore Diameter (d) | 55 |
| Outer Diameter (D) | 100 |
| Width (B) | 21 |
| Fillet Radius (r) | 1.5 |
| Abutment Diameter (da) | 63 |
| Abutment Diameter (Da) | 95 |
| Fillet Radius (ra) | 1.5 |
Performance Metrics
Load Capacity
43.2 kN
Dynamic Load Rating (Cr)
29.2 kN
Static Load Rating (Cor)
Limiting Speeds
6,000 rpm
Grease Speed
7,500 rpm
Oil Speed
General Information
- Physical Properties
- 0.58 kg
- Bearing Type
- Deep GrooveRadialShielded
