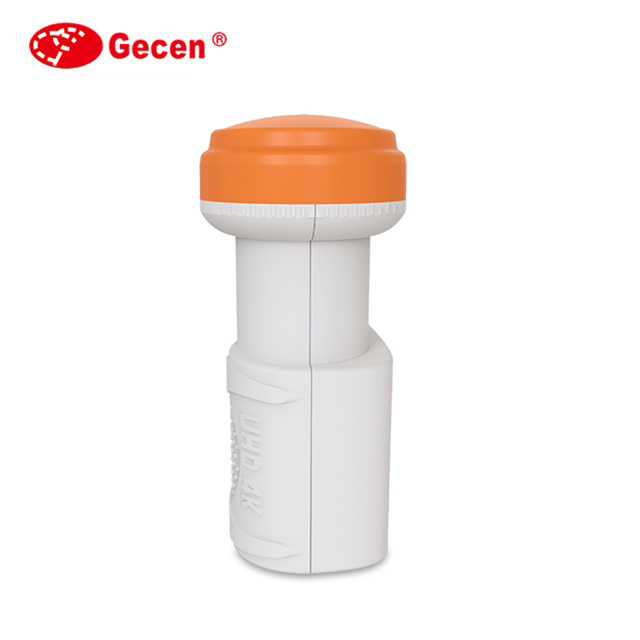

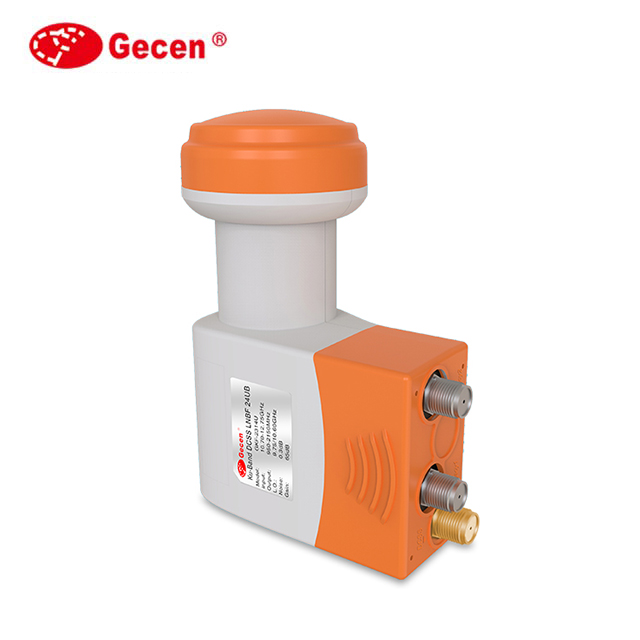

dCSS LNB 24UB Satellite Receiver
This LNB features one dCSS output and two legacy outputs. It is designed to connect up to 26 user bands with low noise and high cross-polarization isolation.
Technical Specifications
Product Overview
Advanced Satellite Reception Solution
The dCSS LNB 24UB is a high-performance satellite receiver designed to simplify complex installations by providing 24 User Bands over a single cable. It features one dCSS output and two legacy outputs, ensuring compatibility with both modern digital stacking systems and traditional satellite receivers. This unit is DVB-S2 compliant, supporting both HD and UHD 4K content for a premium viewing experience.
Key Features
Main Features
- DVB-S2 (HD and UHD) compliant
- Low noise figure for clear signal
- Low power consumption
- High cross-pol isolation
- High frequency stability
- UV-resistant weather protection housing
- Custom-fit weather protection cap
- PC Windows application for configuration
Technical Specifications
Performance Metrics
24
User Bands (UB)
0.3 dB
Noise Figure
65 dB
Gain
Frequency Ranges
| Parameter | Range |
|---|---|
| Input Frequency (Low Band) | 10.70 ~ 11.70 GHz |
| Input Frequency (High Band) | 11.70 ~ 12.75 GHz |
| Output Frequency | 950 ~ 2150 MHz |
| LO Frequency | 9.75 / 10.60 GHz |
| Gain Flatness | ±0.5dB / 27MHz |
Connectivity & Protocols
Output Configuration
- 1 x dCSS Output
- 2 x Legacy Output
- Supported Protocols
- DiSEqC EN50494DiSEqC EN50607dCSSLegacy ModeDynamic Mode
Environmental & Durability
Durability Features
- Extremely heat resistant
- Extremely cold resistant
- UV-resistant housing
Service & Support
Certifications
CEISO 9001
- Warranty
- 1-2 year product warranty with a defective rate below 0.2%
