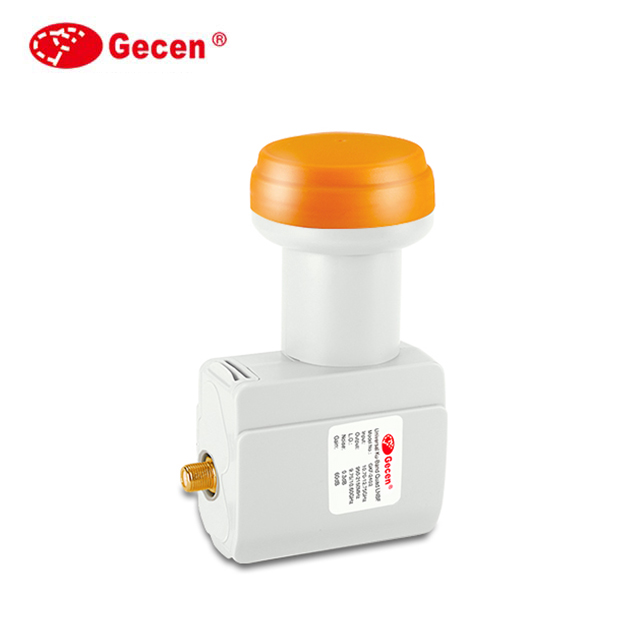

dCSS 16 User Band LNB
This low-noise block downconverter is designed for satellite signal reception. It uses digital channel stacking switch (dCSS) technology to allow simultaneous distribution of multiple satellite signals over a single coaxial cable, connecting up to 16 user bands.
Technical Specifications
Product Overview
Advanced dCSS Satellite Distribution
The dCSS 16 User Band LNB is a high-performance solution designed for modern satellite installations, supporting up to 16 user bands over a single coaxial cable. It is fully compliant with DVB-S2 (HD and UHD) standards and features DiSEqC EN50494 and EN50607 protocols for seamless integration. Built with a UV-resistant, weather-protected housing, this LNB ensures reliable signal stability in extreme temperature conditions while reducing the need for expensive multiswitches.
Technical Performance
User Bands
16
User Bands (UB)
- Input Frequency Range
- 10.7 GHz - 12.75 GHz
- Noise Figure
- 0.3 dB
- Conversion Gain
- 60 dB
Connectivity & Protocols
Output Specifications
| Parameter | Value |
|---|---|
| Output Frequency | 950 - 2150 MHz |
| L.O. Frequency | 9.75 / 10.6 GHz |
| Output Power | High |
| Cross-pol Isolation | High |
- Supported Protocols
- DiSEqC EN50494DiSEqC EN50607DVB-S2HD/UHD Compliant
Physical & Environmental
Environmental Protection
- UV-resistant weather protection housing
- Custom-fit weather protection cap
- Extremely heat resistant
- Extremely cold resistant
Installation Benefits
Key Advantages
- Reduces number of required cables
- Saves cost on external multiswitches
- Dynamic Mode support
- Low power consumption
- High frequency stability
Configuration
- Configuration Support
- PC Windows application provided for custom product configuration via dCSS controller
