DC12-48V SMD LED Double Flash Emergency Beacon

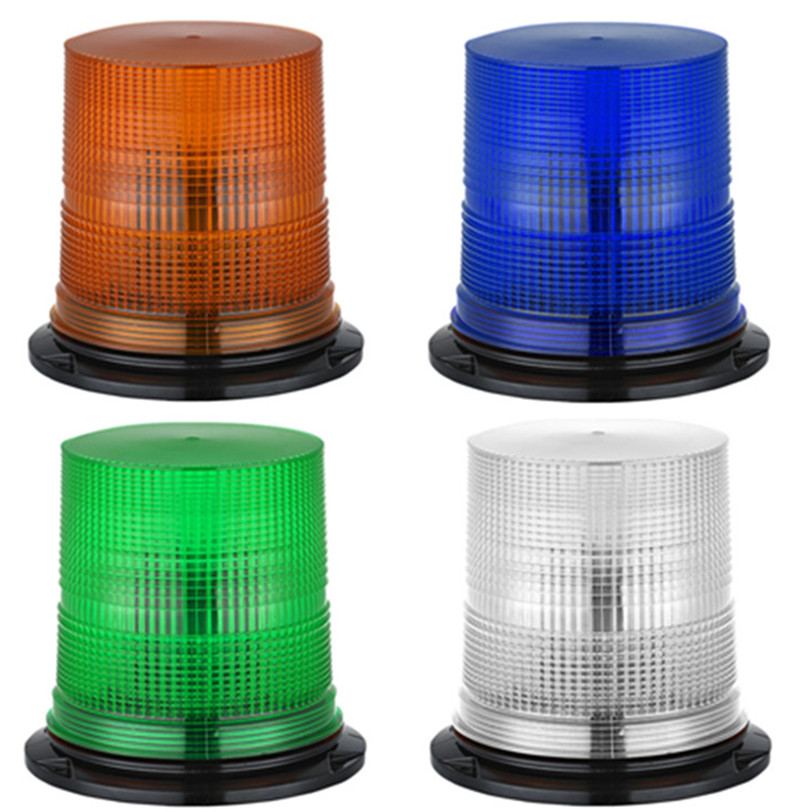

This DC12-48V SMD LED beacon features a double flash and rotating function for emergency signaling. It is designed with super bright SMD LEDs and is available in multiple colors.
Technical Specifications
Overview
High-Visibility Emergency Beacon

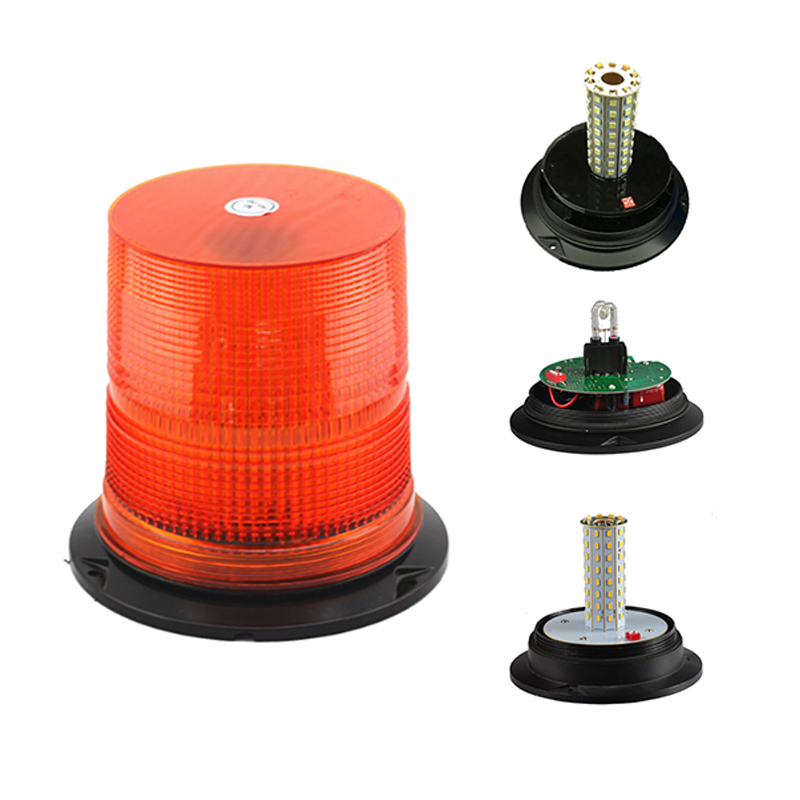

This versatile LED emergency beacon is engineered for superior visibility in demanding industrial and automotive environments. Supporting a wide range of voltages from DC12-48V to AC220V, it offers flexible installation options for utility trucks, construction vehicles, and agricultural machinery. The unit features multiple operational modes including single flash, double flash, and rotation to ensure maximum safety and attention.
Technical Specifications
LED Technology
- Power LED (1W)
- SMD LED (0.2W)
- Flux LED (0.2W)
- Standard LED (0.05W)
Dimensions
163 mm
Width
156 mm
Height
- Flash Modes
- Single FlashDouble FlashRotating
- Voltage Compatibility
- DC12-24VDC12-48VAC12-220V
Design & Construction
Construction Materials
- Aluminium alloy or Plastic base
- PC lens
- Silicone drive rotator
Protection Standard
IP56
Key Features
- Quiet operation via silicone drive
- DIN-mount base for quick replacement
- Magnetic version rated for 70mph
- Tough and durable housing
Compatibility
Suitable Applications
- Utility trucks
- Mining areas
- Construction vehicles
- Pilot cars
- Pickup trucks
- Tractors and farm machinery
