DC to AC Power Inverter
This DC to AC inverter converts electrical power from 12V or 24V to a 220V output. It converts direct current (DC) power from a battery source into alternating current (AC) power.
Technical Specifications
Overview
Versatile DC to AC Power Solution
This series of DC to AC inverters is designed to convert battery power into reliable AC electricity for a wide range of electronic devices and appliances. Featuring a modified sine wave output, these units are ideal for mobile power applications, including use in vehicles, boats, and remote locations. The system integrates automatic switching, battery charging capabilities, and robust protection mechanisms to ensure safe and efficient operation.
Performance Specs
Transfer Time
- Inverter to Mains: <4ms
- Mains to Inverter: <20ms
- Capacity Range
- 600VA/480W1200VA/960W2000VA/1600W3000VA/2400W
- Efficiency
- 90 %
Technical Details
Certifications
CELVDEMC
- Output Waveform
- Modified Sine Wave
- Cooling System
- Smart Fan (Automatic startup at 65°C)
Protection Features
- Integrated Protections
- High VoltageLow VoltageOverheatOverloadShort Circuit
Model Comparison

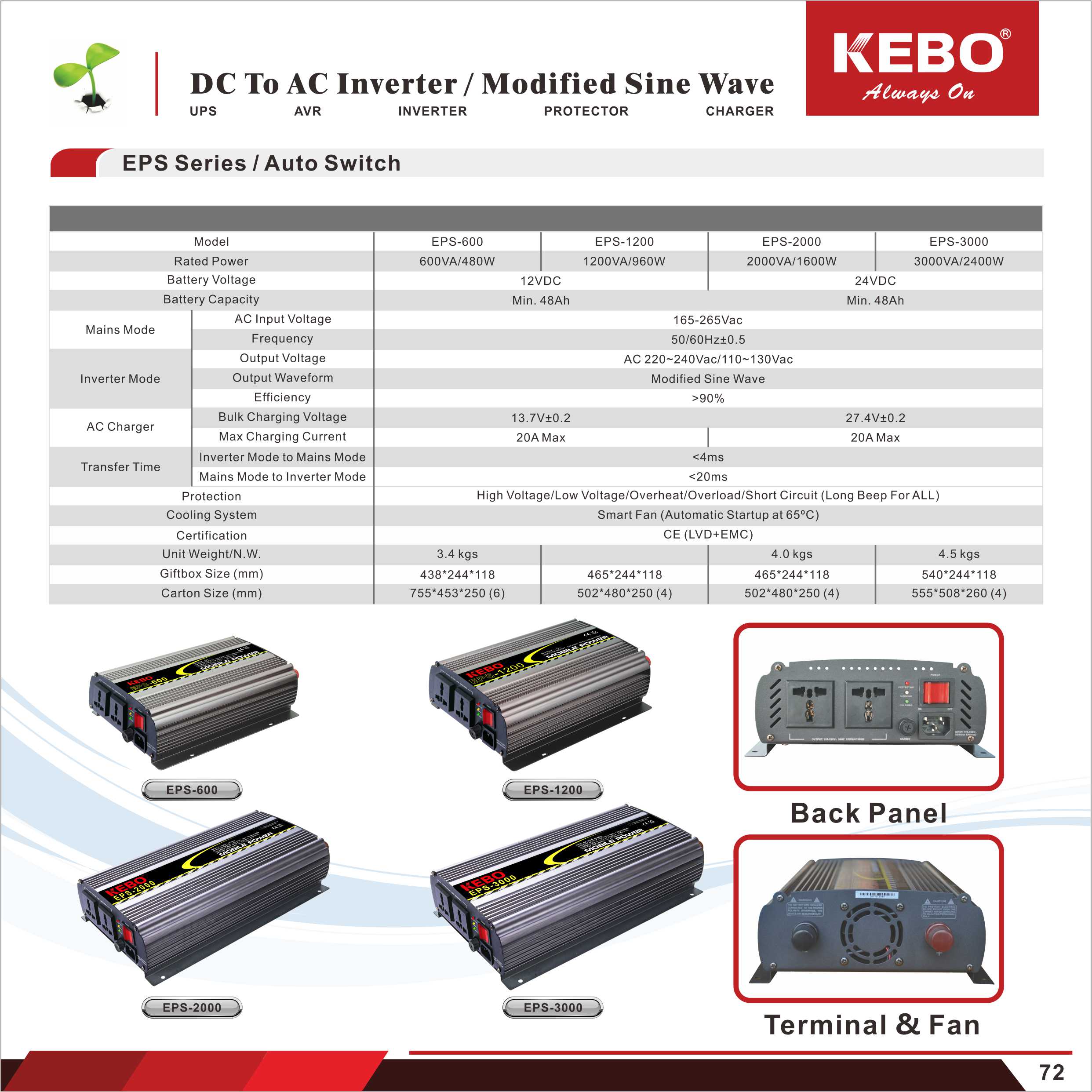

Model Specifications
| Model | Rated Power | Weight (kg) |
|---|---|---|
| EPS-600 | 600VA/480W | 3.4 |
| EPS-1200 | 1200VA/960W | 4 |
| EPS-3000 | 3000VA/2400W | 4.5 |
