DC Solar Water Pump 4-6T/h
This DC solar water pump is designed for water pumping applications using solar power. It is suitable for irrigation, livestock watering, and domestic water supply with a flow rate of 4 to 6 tons per hour.
Technical Specifications
Product Overview
High-Efficiency DC Solar Pumping Solution

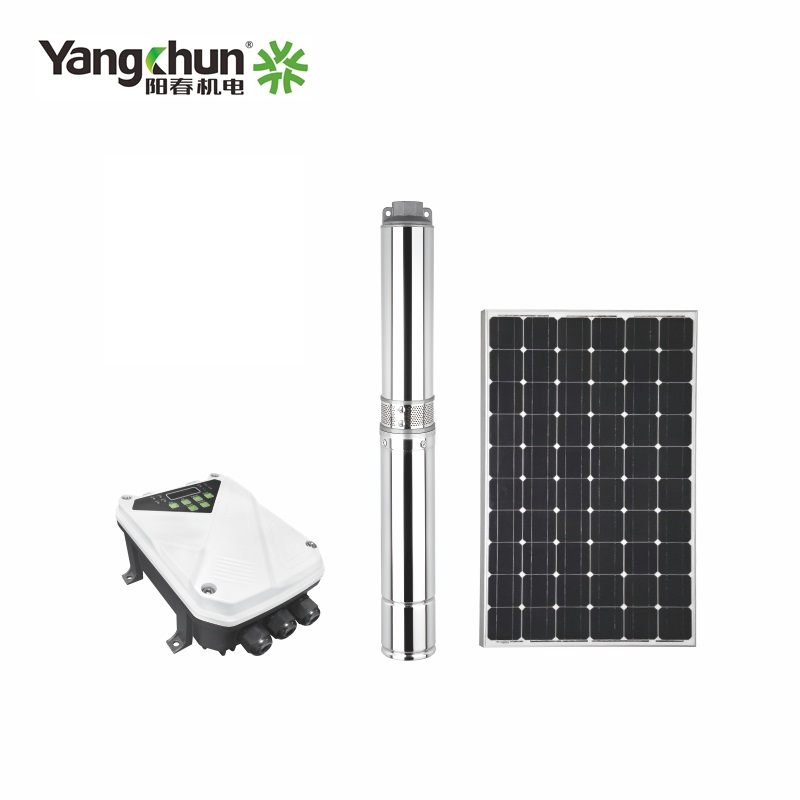

This 4-inch DC solar water pump system is designed for sustainable water management in off-grid environments, delivering flow rates between 4 to 6 tons per hour. Powered by a high-efficiency permanent magnet brushless motor and a dedicated solar photovoltaic array, it eliminates the need for grid connection or batteries. The system is ideal for agricultural irrigation, livestock watering, and domestic supply, offering a cost-effective and environmentally friendly alternative to traditional pumping methods.
Core Performance
Key Performance Metrics
3,600 r/min
Rated Speed
6 m³/h
Max Flow Rate
132 m
Maximum Head
Technical Specifications
Model Specifications Table
| Model | Power (W) | Voltage (VDC) | Max Head (m) |
|---|---|---|---|
| 4TY6-22/5-750W/72V | 750 | 72 | 45 |
| 4TY6-27/6-900W/96V | 900 | 96 | 55 |
| 4TY6-39/8-1200W/110V | 1,200 | 110 | 67 |
| 4TY6-51/11-1500W/110V | 1,500 | 110 | 92 |
| 4TY6-80/16-2200W/280V | 2,200 | 280 | 132 |
Intelligent Controller Functions
Safety & Protection Systems
- Under-voltage protection to extend battery/system lifespan
- Overvoltage protection for circuit safety
- Water shortage protection (auto-stop after 3 minutes)
- Automatic overload protection (auto-stop after 2 minutes)
- Automatic card machine protection with reverse operation
- High-temperature thermal protection
Motor & Drive Technology
- Motor Technology
- Permanent magnet brushless motor
- Drive Method
- Sine wave start commutation
Application & Materials
- Pump Material
- Stainless steel
- Recommended Uses
- Agricultural IrrigationLivestock WateringDomestic Water SupplyRemote Area Water Supply

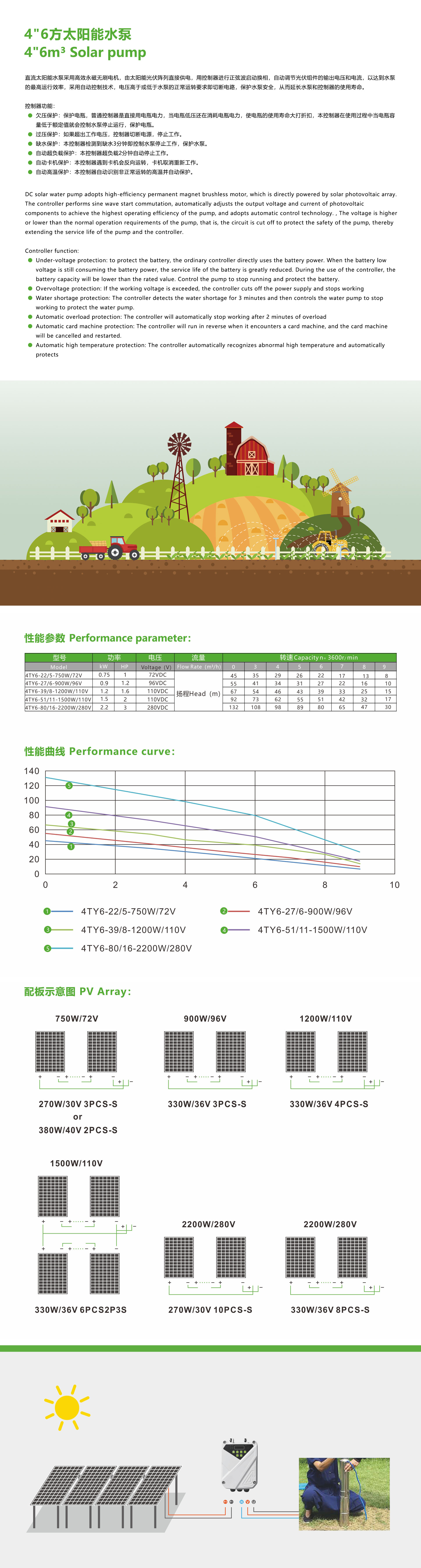

Solar Configuration
PV Array Configurations
- 750W/72V: 270W/30V x 3PCS (Series) or 380W/40V x 2PCS (Series)
- 900W/96V: 330W/36V x 3PCS (Series)
- 1200W/110V: 330W/36V x 4PCS (Series)
- 1500W/110V: 330W/36V x 6PCS (2P3S)
- 2200W/280V: 270W/30V x 10PCS (Series) or 330W/36V x 8PCS (Series)
