Technical Specifications
Product Overview

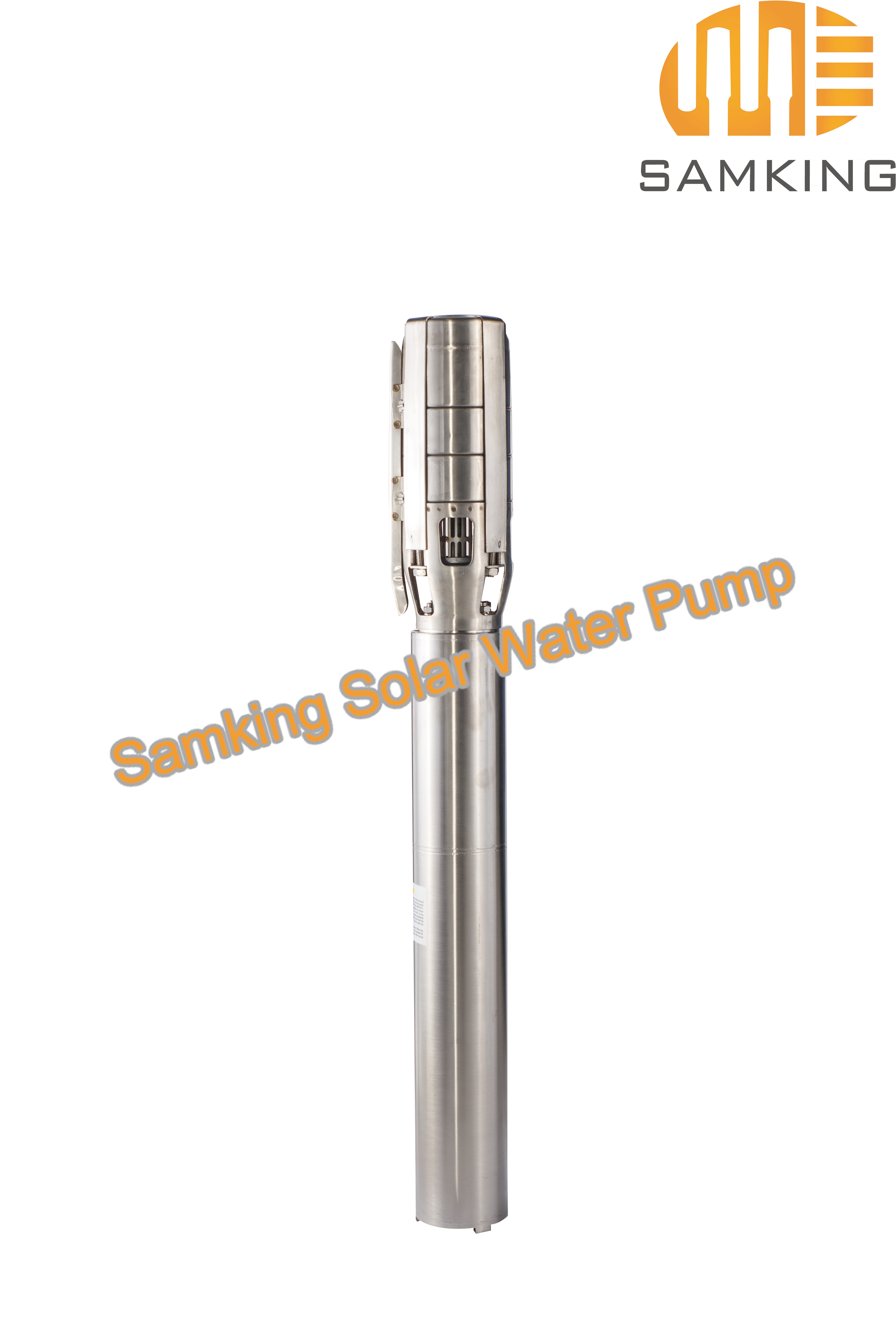

High-Efficiency Hybrid Solar Pump
This 3HP submersible water pump is engineered for reliable water extraction in off-grid and remote locations. Featuring a robust stainless steel construction and a brushless DC motor with an integrated controller, it offers a versatile hybrid power solution capable of running on both solar DC input and AC grid power. With built-in protection systems and advanced frequency conversion, this pump ensures sustainable and cost-effective water supply for irrigation and domestic use.
Performance Metrics
Key Performance Indicators
3 HP
Max Power
43 m
Max Head
670 L/min
Max Flow
150 m
Max Submergence
Technical Specifications
Power Input
| Source | Range |
|---|---|
| DC Voltage | 60-380 Vmp |
| AC Voltage | 90-240 V |
| Max VOC | 440 V |
Dimensions
- Pump Diameter: 6 inch
- Discharge Size: 3 inch
- Motor Configuration
- Brushless DCWater-filledSingle PhaseBuilt-in Controller
System Features
Safety & Protection
Dry-running protectionOver-current protectionInput Over-voltage ProtectionOverload protective
Advanced Functions
- Soft starting running
- Thrust bearing system
- Automatic running
- GPRS monitor (optional)
- Generator auto turn on/off (optional)
Warranty & Support
- Warranty
- 2 years
