DC Electric Motor
This DC electric motor is designed for various industrial applications. It features robust construction and efficient operation for reliable performance in automation, robotics, and precision motion control.
Technical Specifications
Overview
High-Performance DC Motors
These brush DC motors are engineered for demanding industrial and commercial applications, including gym equipment and pump systems. Designed for precision motion control, they offer robust construction and efficient operation across various power and speed configurations. With multiple series available, these motors provide reliable torque and performance for diverse automation needs.
Technical Specifications

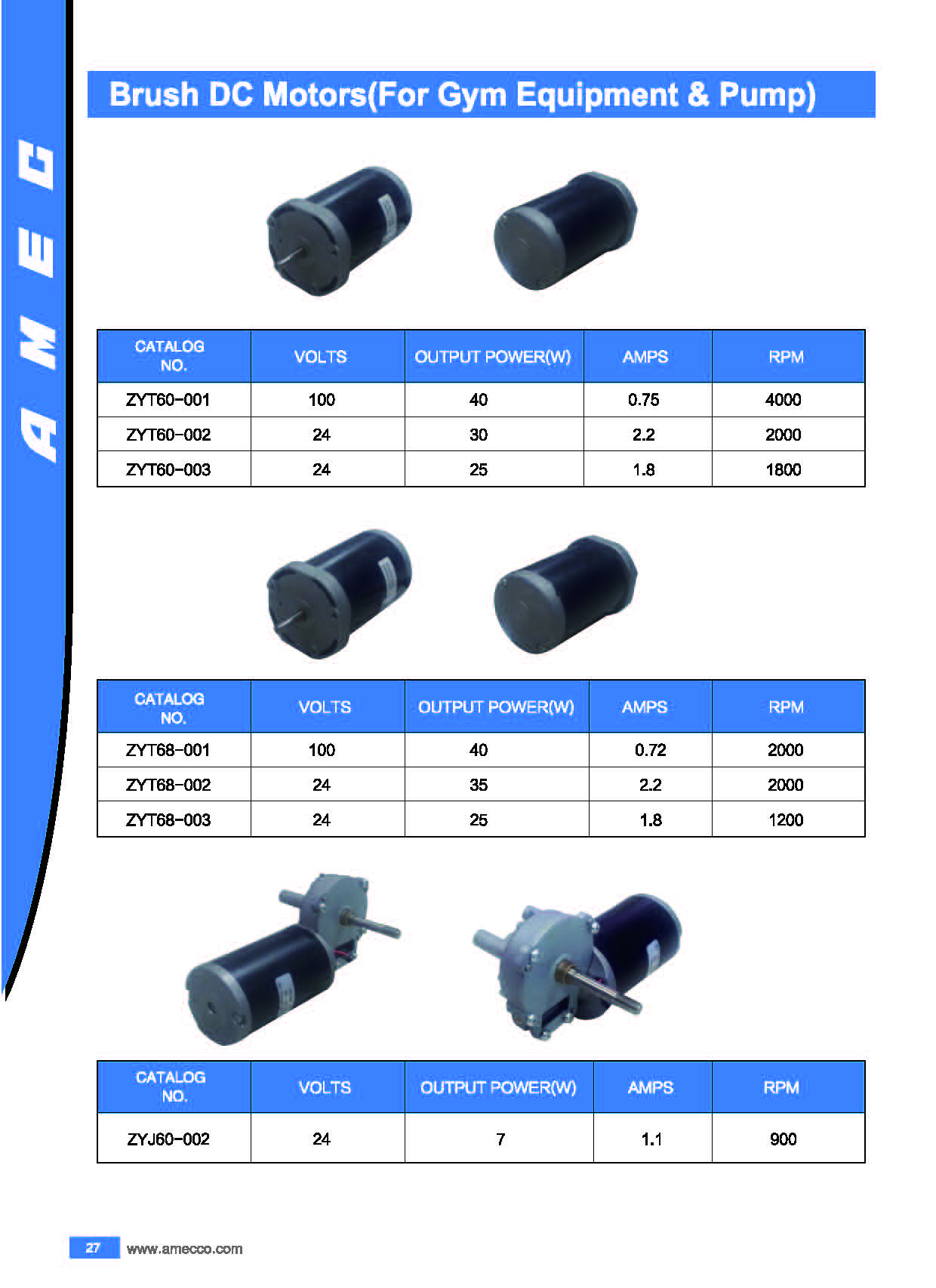

Model Specifications
| Model | Voltage (V) | Output (W) | Current (A) | Speed (RPM) |
|---|---|---|---|---|
| ZYT60-001 | 100 | 40 | 0.75 | 4,000 |
| ZYT60-002 | 24 | 30 | 2.2 | 2,000 |
| ZYT60-003 | 24 | 25 | 1.8 | 1,800 |
| ZYT68-001 | 100 | 40 | 0.72 | 2,000 |
| ZYT68-002 | 24 | 35 | 2.2 | 2,000 |
| ZYT68-003 | 24 | 25 | 1.8 | 1,200 |
| ZYJ60-002 | 24 | 7 | 1.1 | 900 |
- Available Series
- ZYT60ZYT68ZYJ60
Applications
Recommended Applications
- Gym Equipment
- Pump Systems
- Automation Systems
- Robotics
- Precision Motion Control
