Technical Specifications
Overview

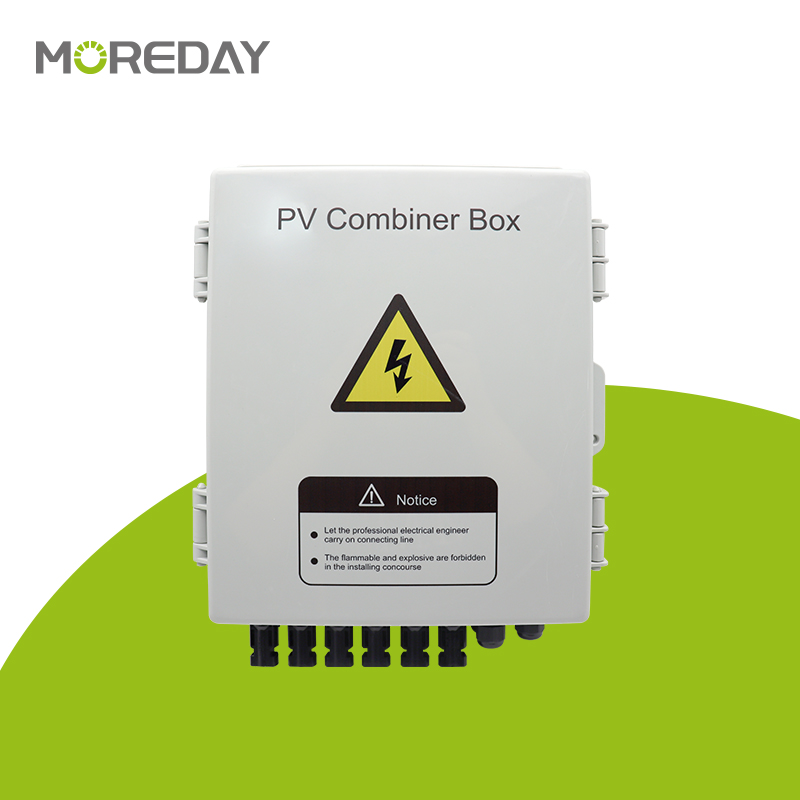

Professional PV Combiner Box

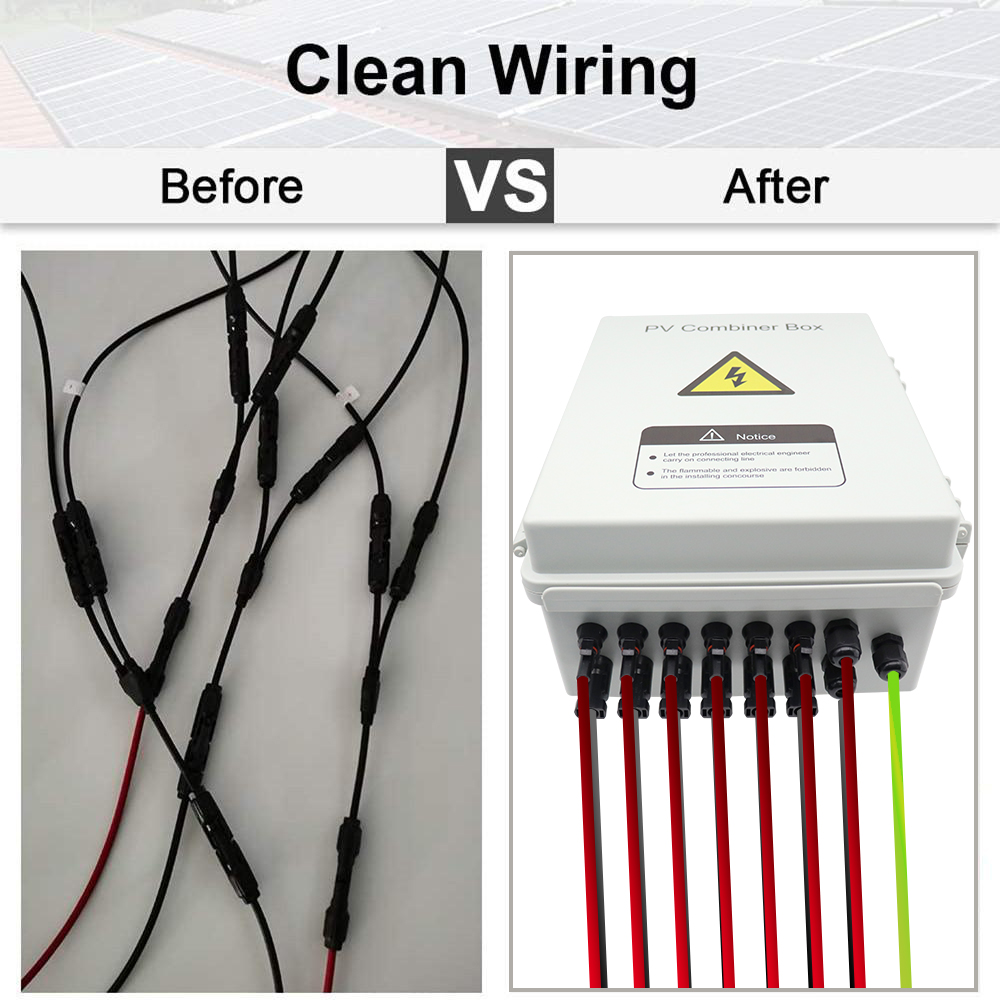

This photovoltaic combiner box is designed to consolidate multiple solar panel inputs into a single output, streamlining connections to your inverter for both grid-connected and off-grid systems. Featuring a rugged IP65-rated enclosure, it provides robust protection against dust and water, making it ideal for reliable outdoor installations. The unit includes integrated overcurrent, short-circuit, and surge protection components to ensure the safety and efficiency of your solar power infrastructure.
Technical Specifications
Ingress Protection
IP65
- Input Strings
- 6 strings
- Rated Voltage
- 600V1000V

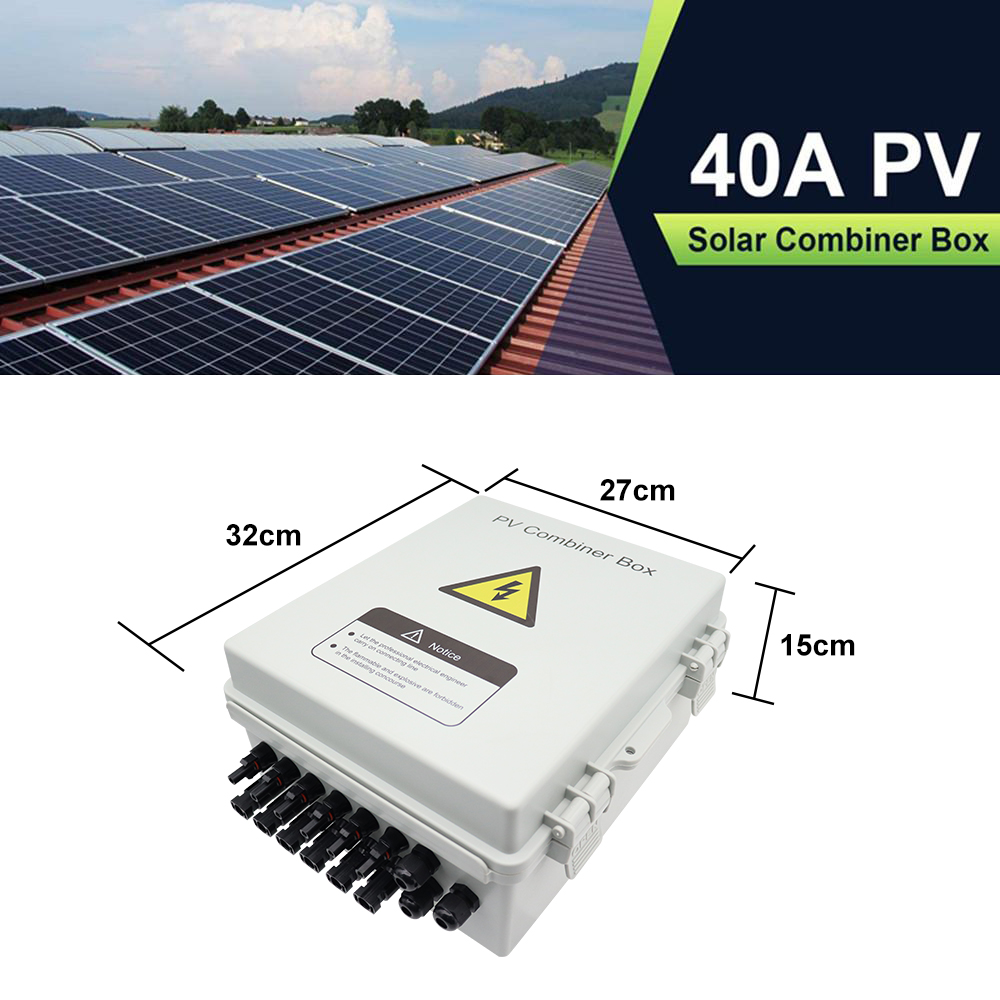

- Physical Dimensions
- 32cm (W) x 27cm (L) x 15cm (H)
Safety & Protection

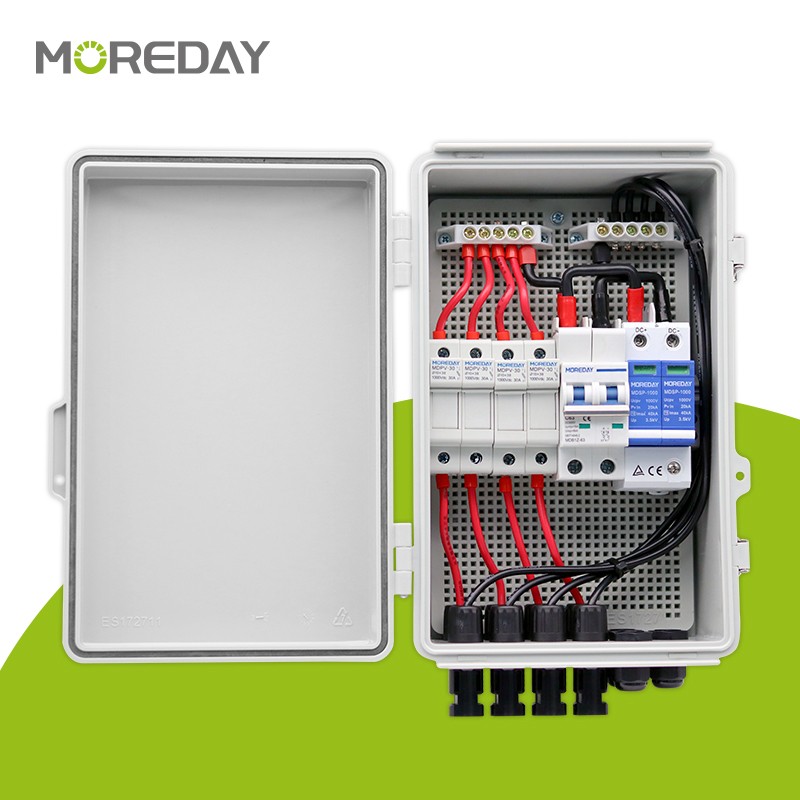

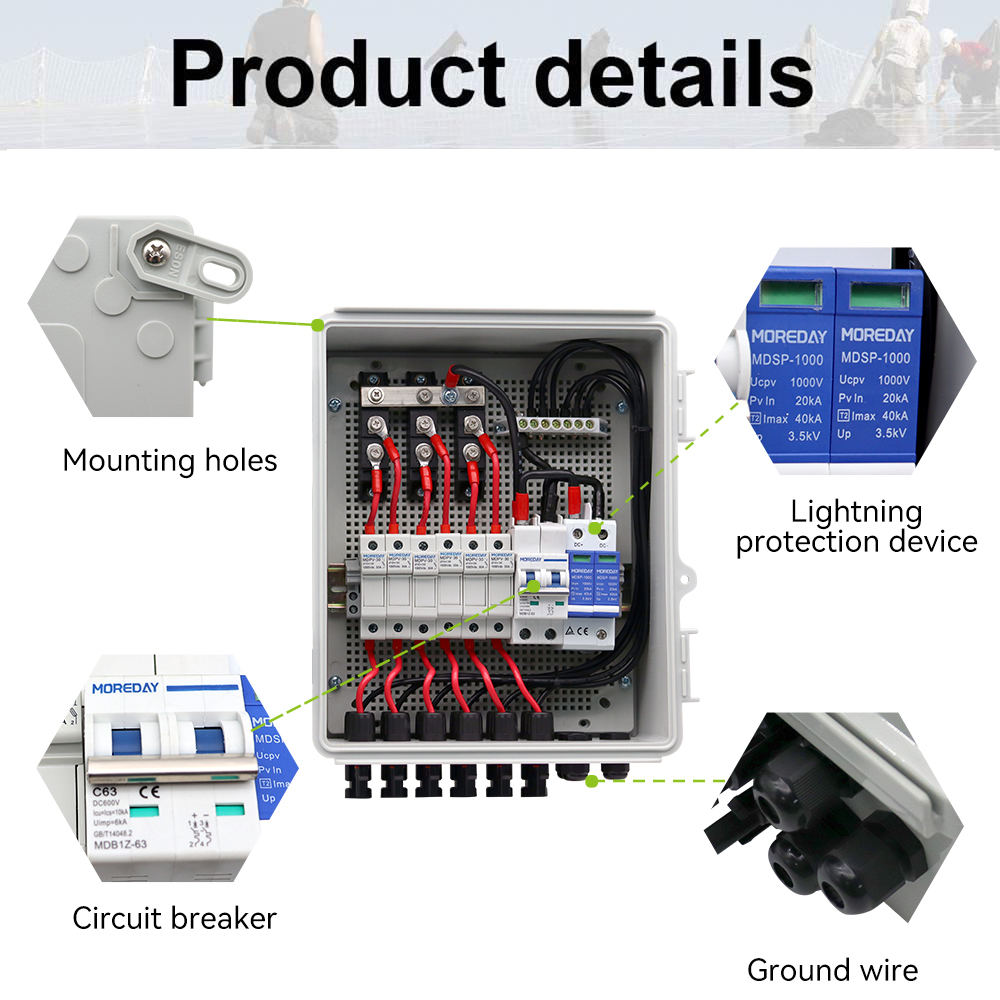

Key Protection Components
- 2P 600V DC Surge Protector
- 15A DC Fuse (Positive input)
- Overcurrent Circuit Breaker
- Grounding Terminal
- Lightning Protection Device
Performance Metrics
40 A
Max Total Input
10 A
Per Port Capacity
