DC Combiner Box for Solar PV Systems
This combiner box is designed for photovoltaic grid-connected and off-grid power generation. It combines DC output from solar panels into a single DC input for the inverter.
Technical Specifications
Product Overview

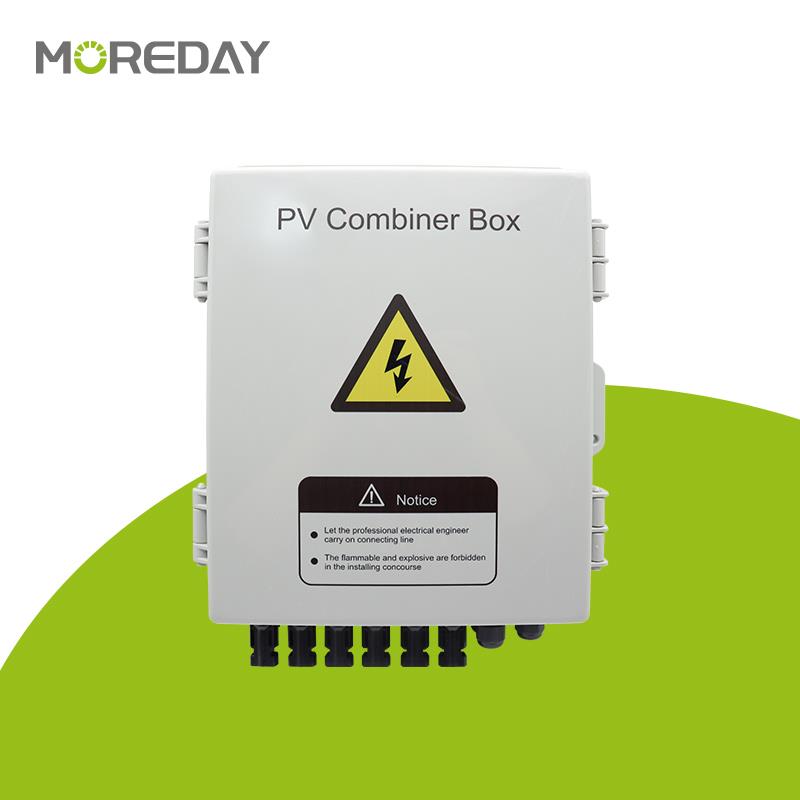

Professional PV Solar Combiner Box
This photovoltaic combiner box is designed for both grid-connected and off-grid solar power systems. It efficiently consolidates 4 to 6 solar strings into a single output, streamlining wiring and improving overall system reliability. Built with an IP65-rated enclosure, it provides robust protection against dust and water ingress, making it suitable for demanding outdoor environments.
Technical Specifications
Ingress Protection
- Supported Strings
- 6 strings
- Voltage Rating
- 600V1000V
Electrical Components

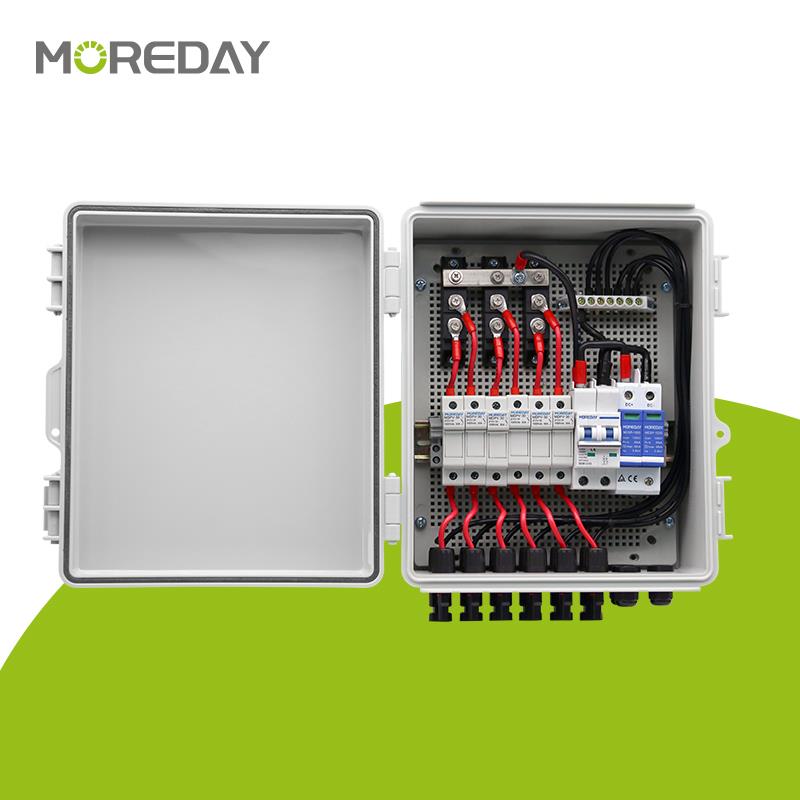

Integrated Safety

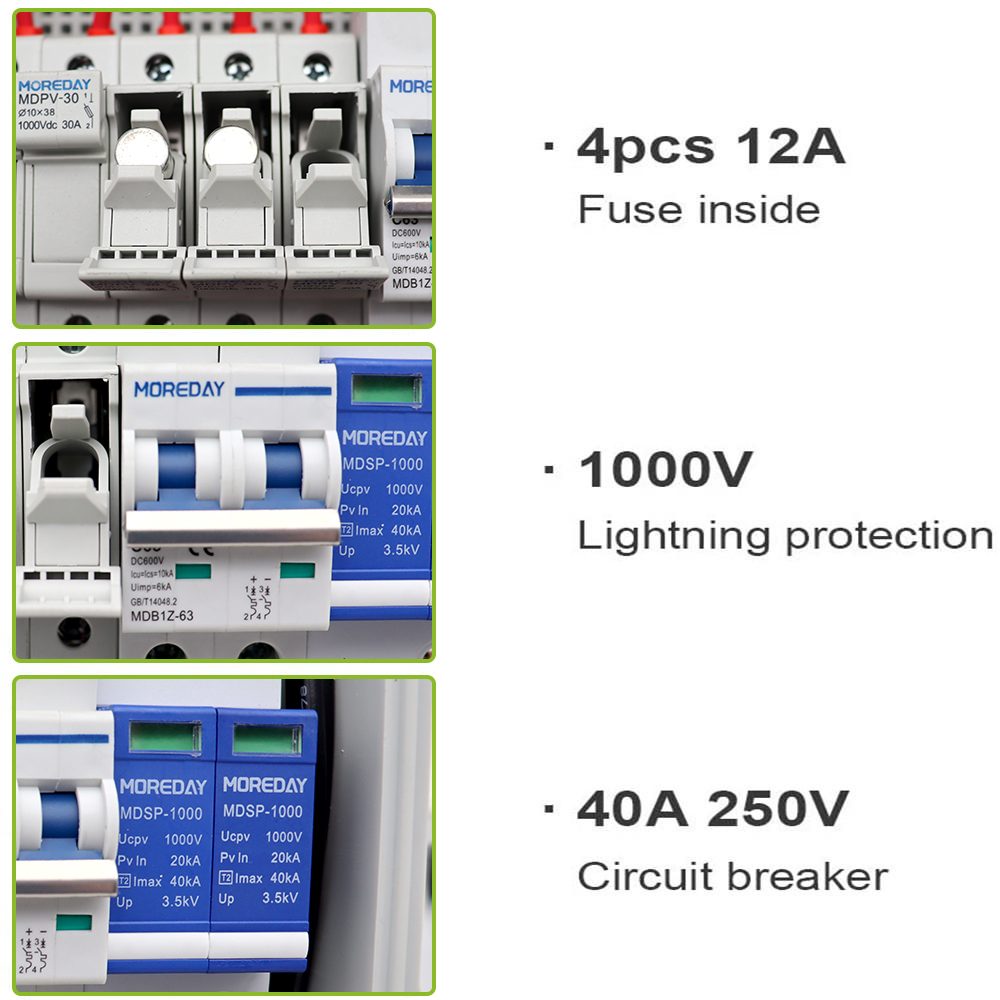

- 2P 600V DC surge protection device
- 15A DC fuse for positive inputs
- Grounding protection
- Leakage protection
- Circuit breaker overcurrent protection
Key Performance Metrics
Design and Installation
Safety Warning
Installation must be performed by a professional electrical engineer. Flammable and explosive materials must be kept away from the installation area. The box features lockable hinged doors for easy access and dedicated mounting holes for secure exterior installation.
