DC Combiner Box for Solar Power Systems
This DC combiner box is designed for solar power systems, decreasing connecting lines and easing maintenance. It provides reverse current prevention, over-current protection, over-voltage protection, and lightning protection.
Technical Specifications
Overview
Solar PV Combiner Box
This DC combiner box is designed to optimize solar power systems by connecting multiple solar panel strings into a single output. It streamlines wiring, simplifies maintenance, and enhances overall system safety and reliability between solar arrays and the inverter. Engineered for robust performance, it provides essential protection against reverse currents, over-current, over-voltage, and lightning strikes, ensuring a stable energy collection process.
Technical Specifications
IP Rating
IP65
- Voltage Compatibility
- 1000V1500V
- Operating Temperature Range
- -25°C to +55°C
- Permissible Humidity
- 0-95% (no condensation)
- Box Material
- Metal
Protection Features
Integrated Protections
- Reverse current prevention
- Over-current protection
- Over-voltage protection
- Lightning protection
- Arc detection
- Leakage detection (optional)
System Integration

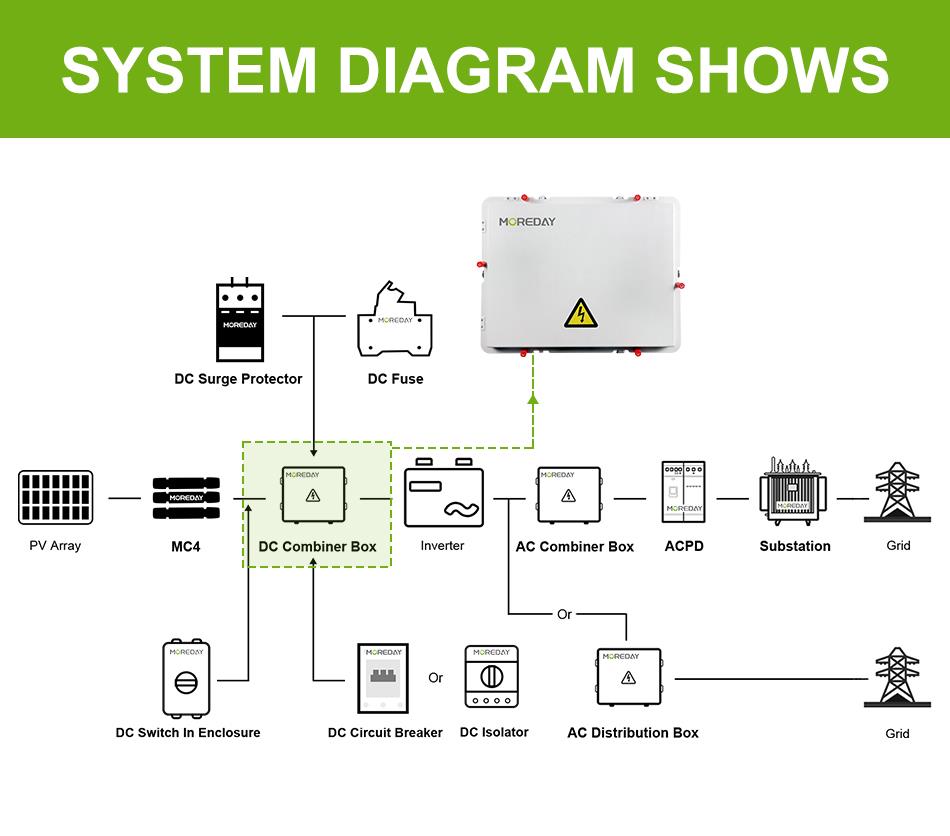

System Flow
| Component | Function |
|---|---|
| PV Array | Energy Generation |
| Combiner Box | Junction & Protection |
| Inverter | DC to AC Conversion |
| Grid/Load | Power Distribution |
- Mounting Style
- Wall mounting
