DC 12V Lead-Acid Battery Charger Series
These battery chargers are designed for various DC12V lead-acid batteries. They offer multiple protections including overheating, short circuit, and over-current protection.
Technical Specifications
Product Overview
Professional Lead-Acid Battery Charger Series
This series of high-efficiency battery chargers is engineered for reliable performance with various DC12V lead-acid batteries. Designed with safety as a priority, each unit incorporates automated protection systems against overheating, short circuits, and over-current conditions. These versatile chargers are suitable for a wide range of battery capacities, making them an ideal solution for professional automotive and industrial charging needs.
Key Features
- Safety & Performance
- Overheating ProtectionShort Circuit ProtectionOver-current ProtectionAutomated ChargingHigh Efficiency
Technical Specifications

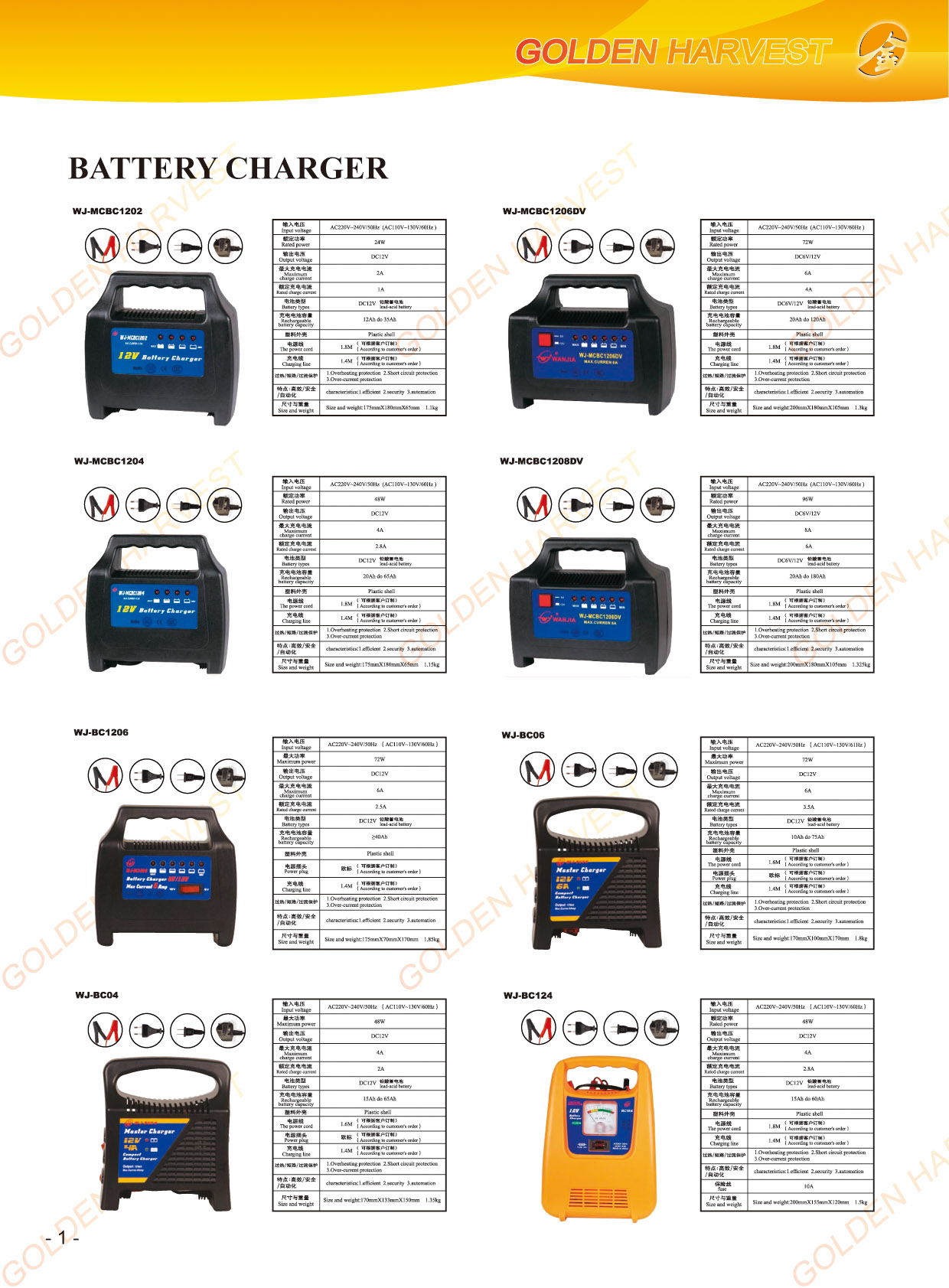

Model Comparison
| Model | Power | Max Current | Capacity Range |
|---|---|---|---|
| WJ-MCBC1202 | 24W | 2A | 12-35Ah |
| WJ-MCBC1206DV | 72W | 6A | 20-120Ah |
| WJ-BC1206 | 72W | 6A | 240Ah |
| WJ-BC124 | 48W | 2.8A | 15-60Ah |
| WJ-BC08A | 96W | 8A | 9-118Ah |
Electrical Requirements
Input Voltage
- AC220V-240V / 50Hz
- AC110V-130V / 60Hz
Output Voltage
DC12VDC6V/12V
Physical Attributes
Cable Lengths
1.4 M
Charging Line
1.8 M
Power Cord
- Enclosure Material
- Plastic Shell
