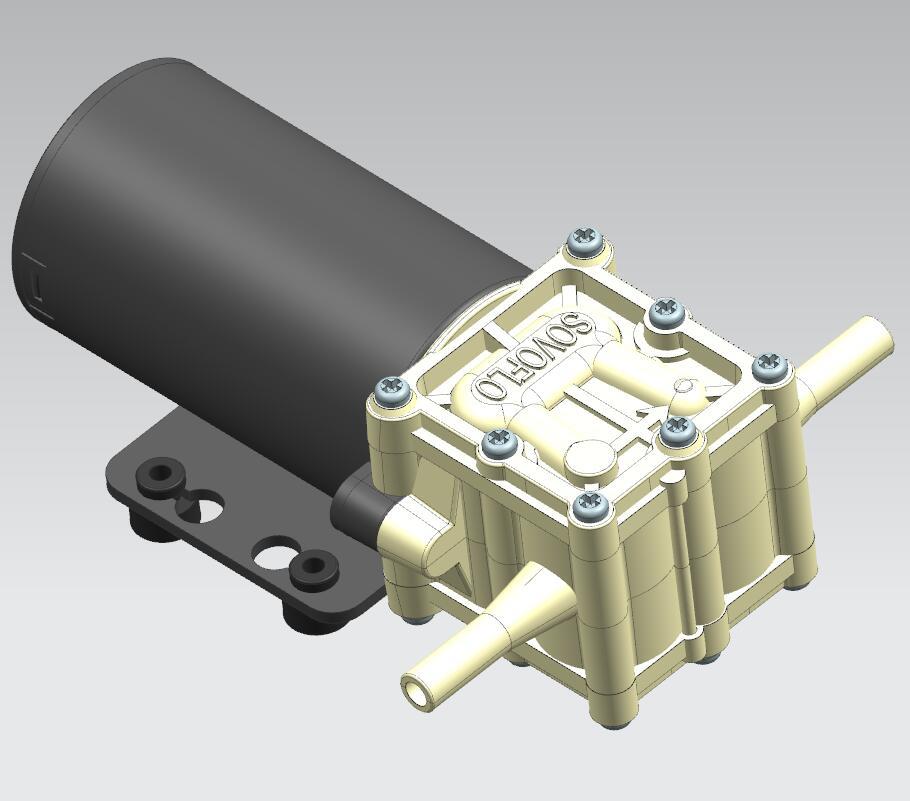

DC 12/24V Diaphragm Pump for Water Dispenser
This DC diaphragm pump is designed for dispensing both cold and hot water in various applications. It features food-grade construction and a compact size for easy installation.
Technical Specifications
Overview

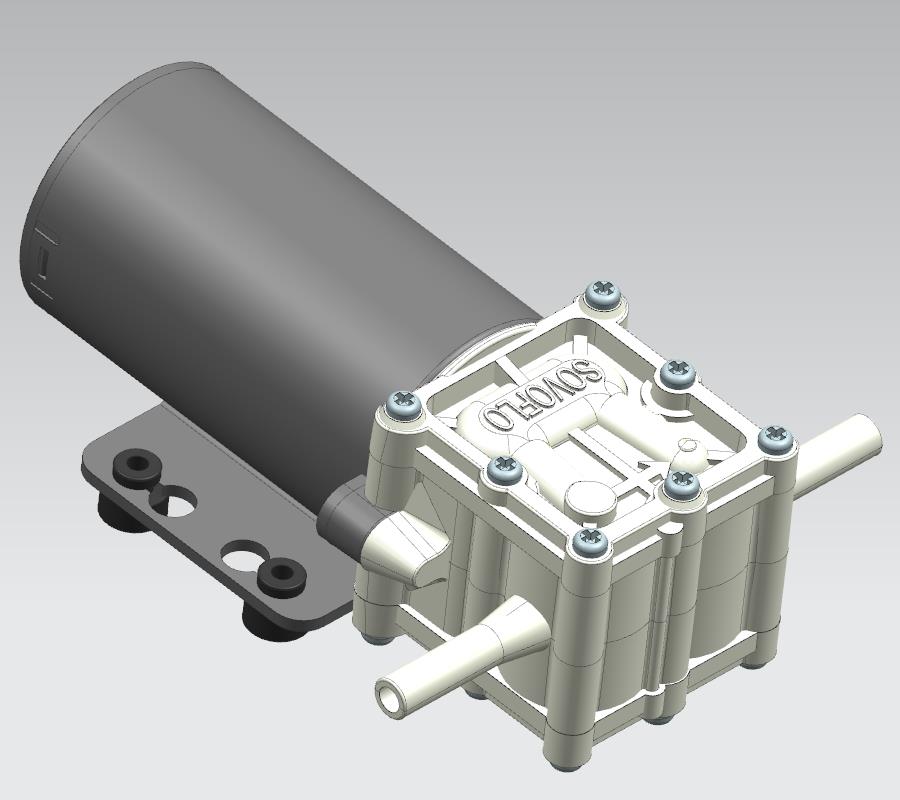

High-Performance DC Diaphragm Pump
The KDP-14 series is a versatile, food-grade diaphragm pump designed for reliable water handling in beverage and vending equipment. Featuring a permanent magnet DC motor, it offers self-priming capabilities and the ability to run dry without damage. Its robust, explosion-proof design ensures safe and efficient operation with both cold and hot water up to 100°C.
- Key Features
- Food GradeSelf-primingDry Run SafeLow NoiseExplosion Proof
Technical Specifications
Electrical Ratings
12 VDC
Rated Voltage (Option 1)
24 VDC
Rated Voltage (Option 2)
Operational Performance
| Metric | Value/Range |
|---|---|
| Flow Rate | 0.8 - 1.5 L/min |
| Dry Suction | 1 - 10 m |
| Noise Level | 43 - 50 dB |
| Max Pressure | 0.08 - 0.3 MPa |
| Fluid Temp | 0 - 100 °C |
Applications
Suitable Applications
- Water Dispenser
- Coffee Machine
- Vending Machine
- Ice Maker
- Tea table water dispensing
- Medical equipment
- Chemical instrument
- Electric sprayer
