Technical Specifications
Product Overview
Customizable Monocrystalline Solar Solutions

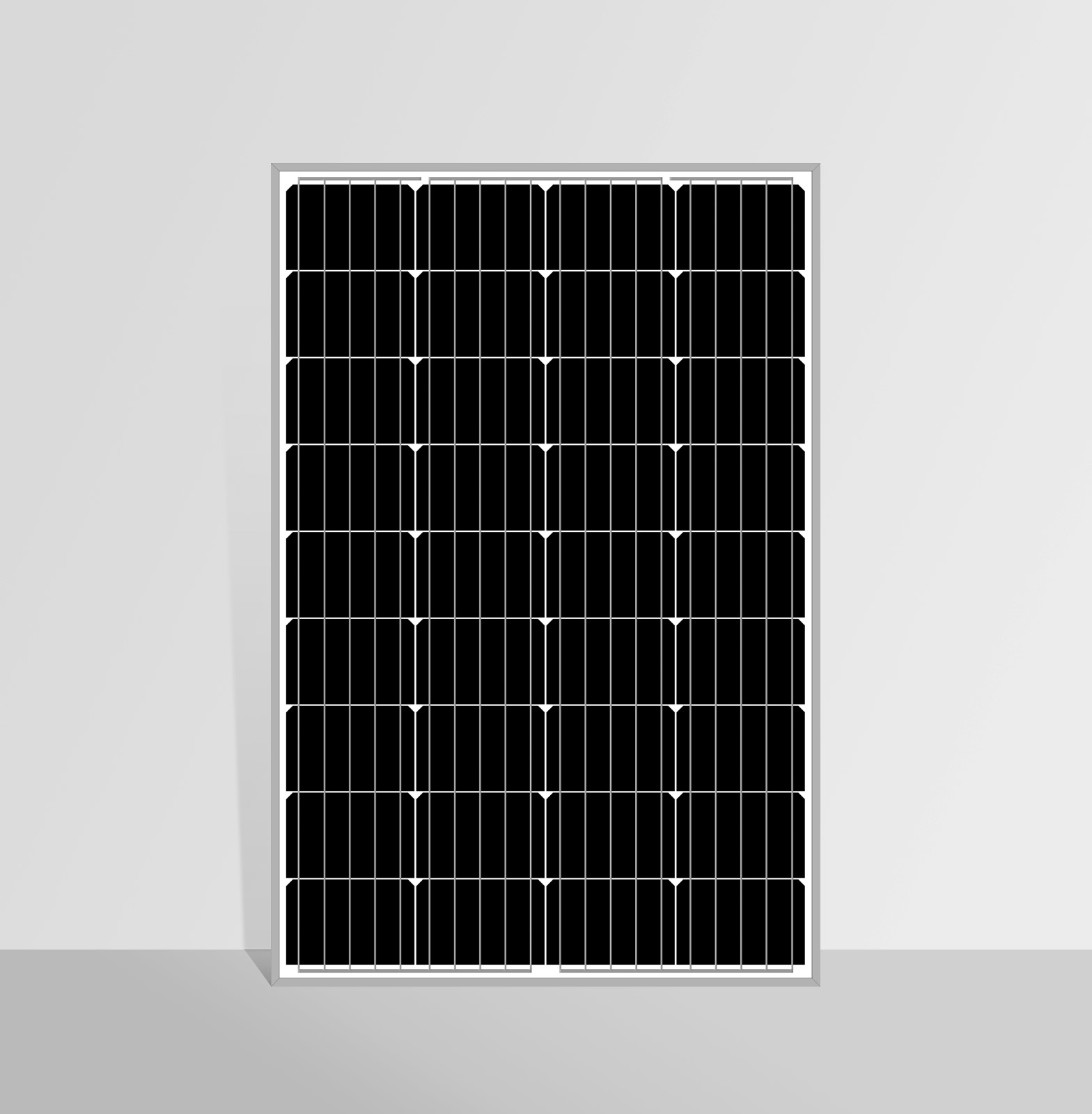

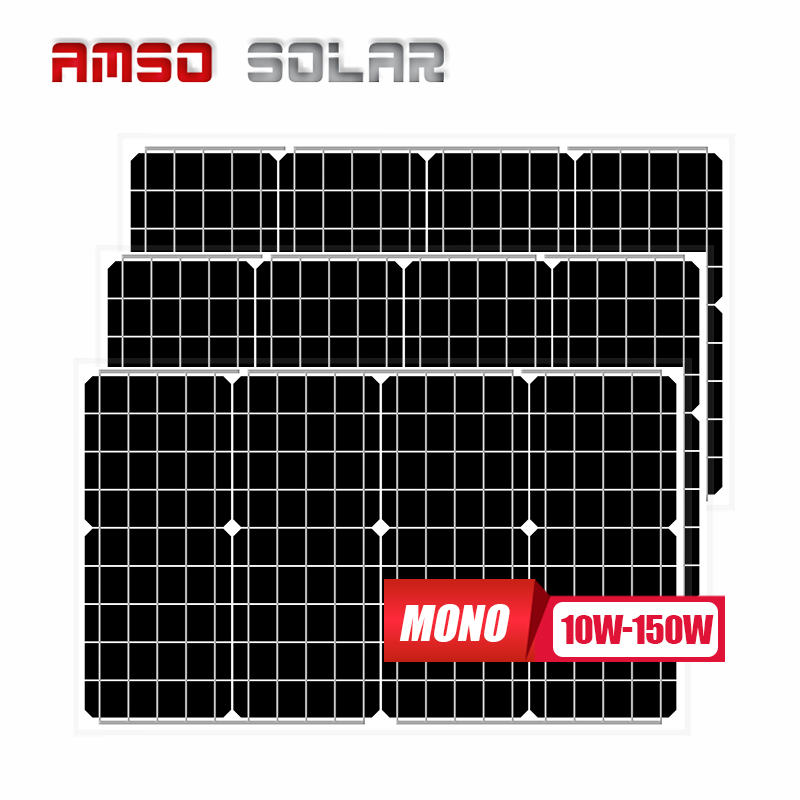

These monocrystalline solar panels are engineered for versatility, offering customizable dimensions, power outputs, and voltage configurations to suit diverse off-grid and residential applications. Ranging from 10W to 150W, the panels are designed for ease of installation and maintenance in residential garden or off-grid power systems. Each module is built for durability and high conversion efficiency, ensuring long-term reliability even in challenging weather conditions.
Technical Specifications
Performance Features
15 Years
Max Warranty Period
1,000 VDC
Max System Voltage
41 °C
NMOT
Operating Environment
- Operating temperature: -40 to +85°C
- Maximum fuse rated current: 10A
- PID free treatment available
- Flame resistant TPT back sheet
Certifications
- Certifications
- CETUVIECISO
Build Quality
Materials & Construction
| Component | Benefit |
|---|---|
| Glass | Anti-reflective, increases translucency by 2% |
| Frame | Anodized aluminum alloy, load resistance up to 5400 Pa |
| Junction Box | IP67/IP68 rated with 3 bypass diodes |
| EVA Film | High UV resistance and 92%+ light transmittance |
