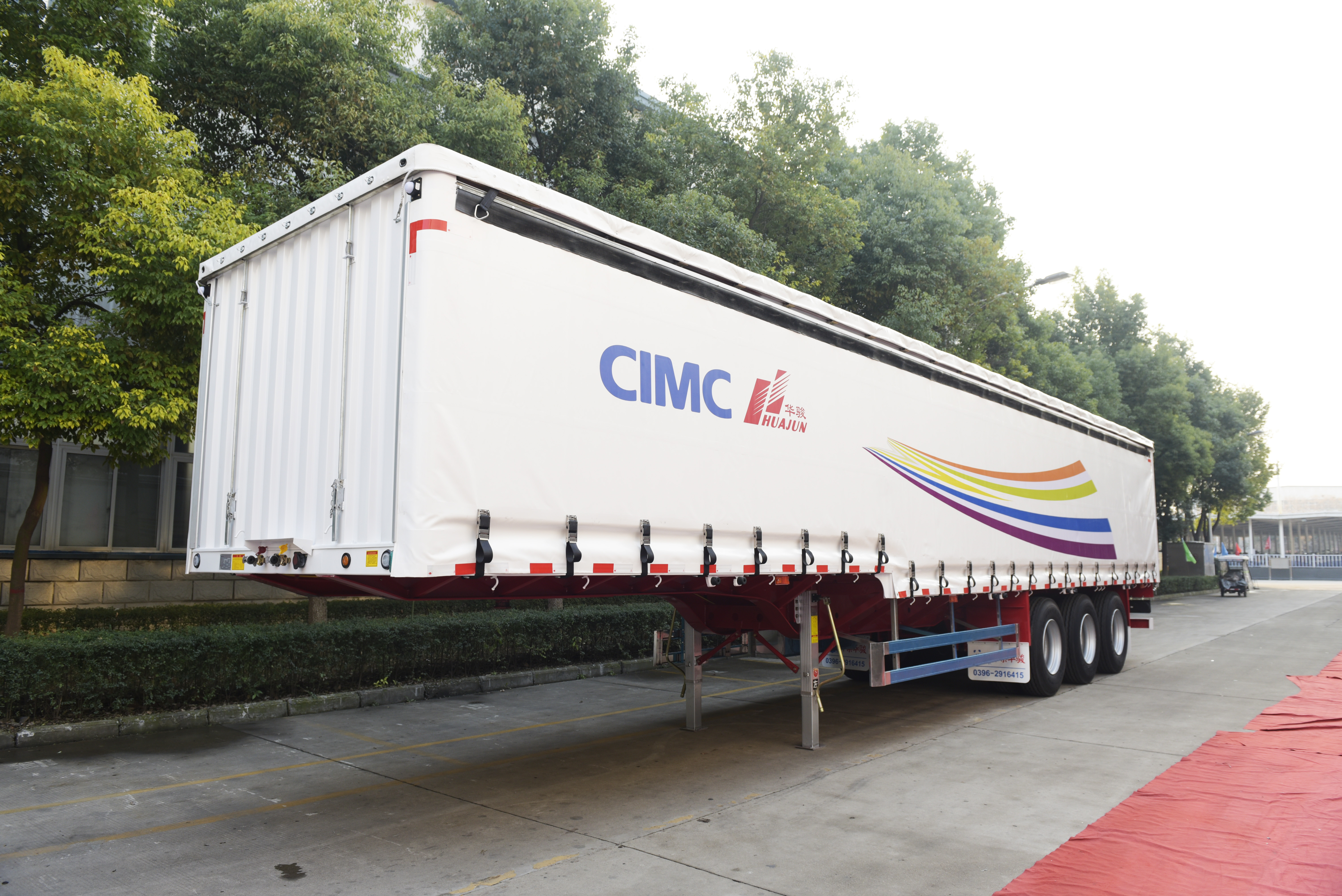

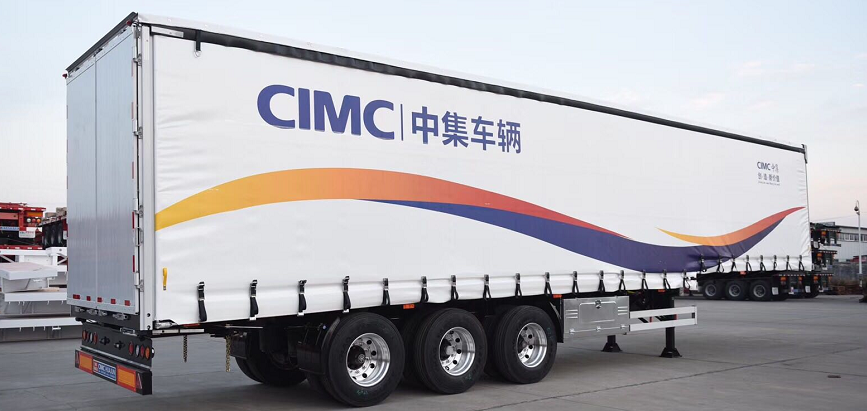

Curtain Sider Semi-Trailer
This curtain sider semi-trailer is designed for efficient and secure transportation of goods. The trailer features a retractable curtain system on both sides, allowing for easy loading and unloading of cargo from the sides.
Technical Specifications
Overview
High-Capacity Curtain Sider Semi-Trailer
This curtain sider semi-trailer is engineered for efficient and secure logistics, offering a versatile solution for diverse cargo transportation needs. Built with high-strength Q345 carbon steel, it features a robust chassis design that ensures long-term durability and reliable performance under heavy loads. The retractable curtain system allows for rapid side loading and unloading, significantly optimizing operational efficiency for logistics providers.
Dimensions
Trailer Dimensions
13,000 mm
Length
2,500 mm
Width
2,300 mm
Box Height
Performance
- Maximum Payload
- 40000 kg
Structural Specifications
Chassis and Frame Components
| Component | Specification |
|---|---|
| Material | Q345 Carbon Steel |
| Platform Floor | 4mm thickness |
| Main Beam | 500mm / 12mm web |
| Wingplate | 20/20mm |
| Side Beam | 20# channel steel |
Running Gear
- Axle Specifications
- 16T capacity per axle
- Suspension
- Heavy duty leaf-spring (10pcs)
- Landing Gear
- Two speed (TFOC)
Safety & Braking
- Braking System
- Dual air brakeABSWABCO relay valve
- Brake Chamber Type
- 30/30
Wheels & Tires
Tires and Rims
- Rims: 9.0-20/12
- Tires: 12R22.5-16PR/12
Components
- King Pin
- 3.5'' bolting
