Cryogenic Butterfly Valve for Low-Temperature Applications
This butterfly valve is designed for low-pressure pipeline medium switch control. The valve can control air, water, steam, corrosive medium, mud, oil, liquid metal, and radioactive medium flow.
Technical Specifications
Product Overview

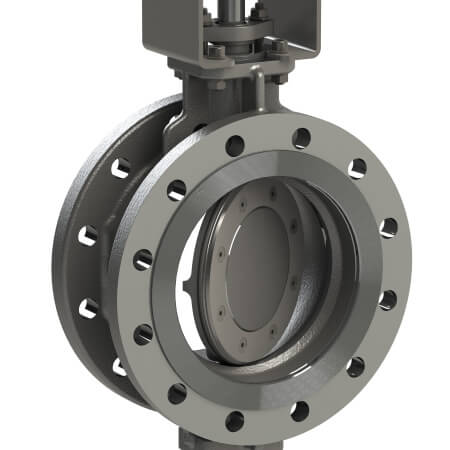

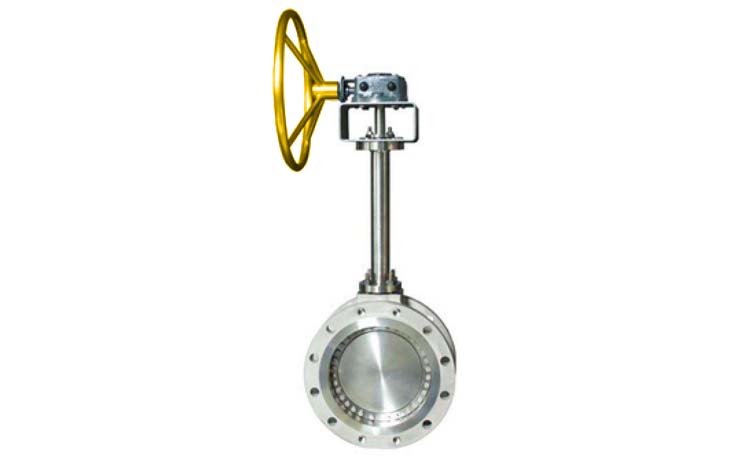

Cryogenic Butterfly Valve
This cryogenic butterfly valve is engineered specifically for reliable performance in extreme low-temperature applications. Featuring a robust stainless steel construction with a tight shut-off mechanism, it ensures efficient and leak-proof flow control for critical industrial processes. The design includes versatile operation options, including manual handwheel control and actuator compatibility for automated systems.
Technical Specifications
Recommended Torque Safety Factor
1.5 x
Max Multiplier
1.2 x
Min Multiplier
Actuator Structure Configurations
| Configuration Type | Mechanism Description |
|---|---|
| Without Thrust Plate | Direct output torque mechanism. |
| With Thrust Plate | Output torque is converted to output thrust via stem nut. |
Installation Considerations
- Hollow output shaft must exceed stem outer diameter
- Verify stem diameter and keyway dimensions for proper assembly
- Ensure actuator output torque meets operational requirements
- Calculate rotation turns using M=H/ZS formula
Design Features
Operation Modes
Manual HandwheelActuator CompatibleRemote Control Ready
- Material & Build
- Stainless Steel BodyCryogenic-Grade Internal ComponentsCircular Flange Design
