CPM/SCM Series Centrifugal Water Pump
This CPM/SCM series centrifugal water pump is designed for various applications, including domestic water supply and irrigation. It features a robust construction with a cast iron pump body and a brass impeller.
Technical Specifications
Product Overview
CPM/SCM Series Centrifugal Water Pump
The CPM/SCM series centrifugal water pumps are engineered for efficient and consistent water delivery in domestic and garden applications. These pumps feature a robust construction with a cast iron body and a copper impeller, ensuring reliable performance and a long service life. Designed for pumping clean water without grains or corrosive substances, they provide uniform lift and flow distribution, making them ideal for family water supply, irrigation, and pressure boosting.
Construction & Materials
- Pump Body Material
- Cast iron
- Chassis Material
- Aluminum-cast
- Impeller Material
- Copper (Aluminum or Plastic available upon request)
Operating Requirements
Primary Applications
- Family water pumping
- Garden watering
- Domestic water supply
- Irrigation
- Pressure boosting
- Suitable Fluids
- Clean waterNo-grain liquidsNon-corrosive liquids
Technical Performance
- Inlet/Outlet Size
- 1" x 1"
- Maximum Suction
- 8 m
Model Specifications

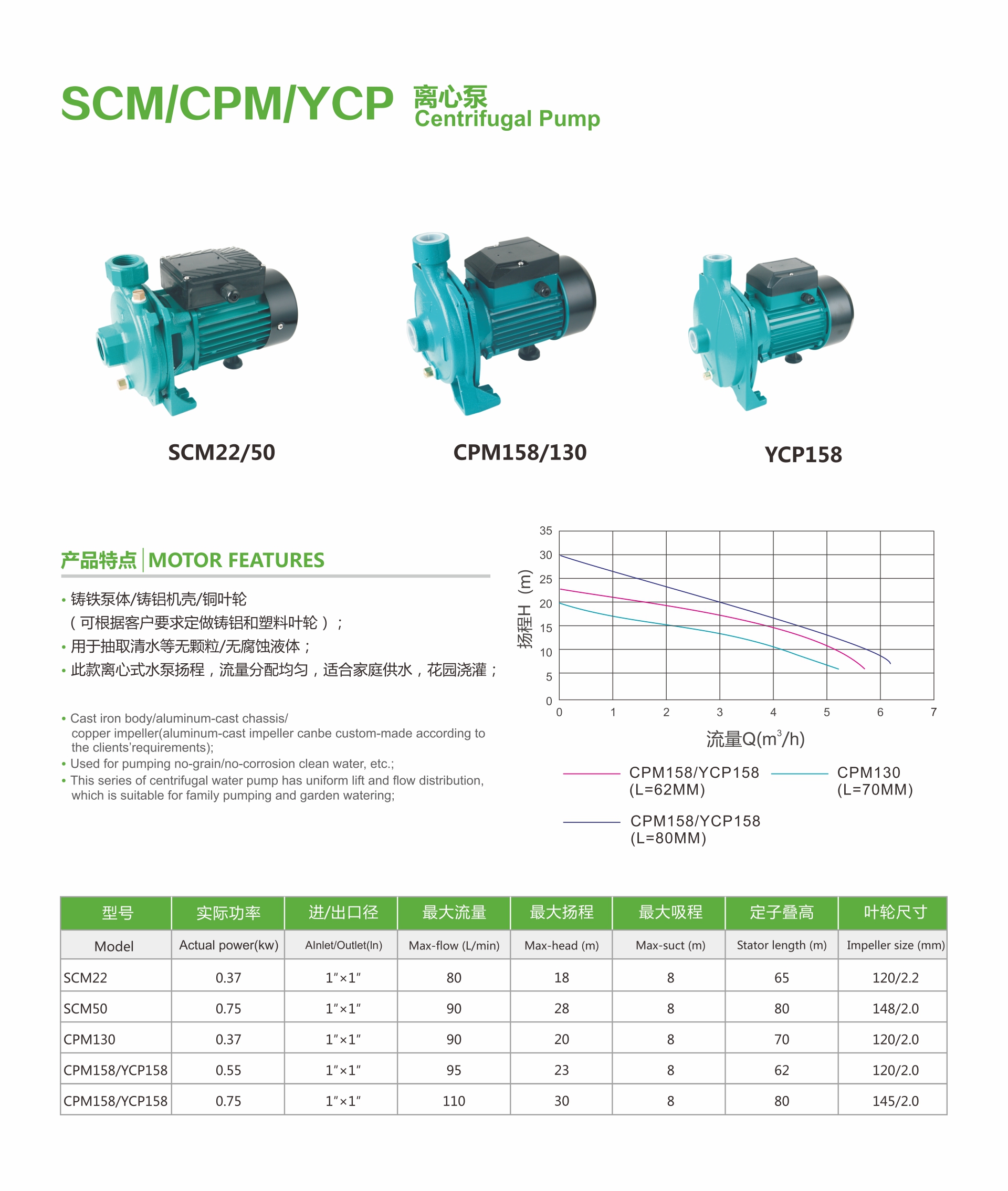

Model Performance Data
| Model | Power (kW) | Max Flow (L/min) | Max Head (m) | Stator Length (mm) |
|---|---|---|---|---|
| SCM22 | 0.37 | 80 | 18 | 65 |
| SCM50 | 0.75 | 90 | 28 | 80 |
| CPM130 | 0.37 | 90 | 20 | 70 |
| CPM158 (L62) | 0.55 | 95 | 23 | 62 |
| CPM158 (L80) | 0.75 | 110 | 30 | 80 |
Key Features
Motor Features
Continuous DutyThermally ProtectedUniform Flow Distribution
