Countersunk Mounting Magnet

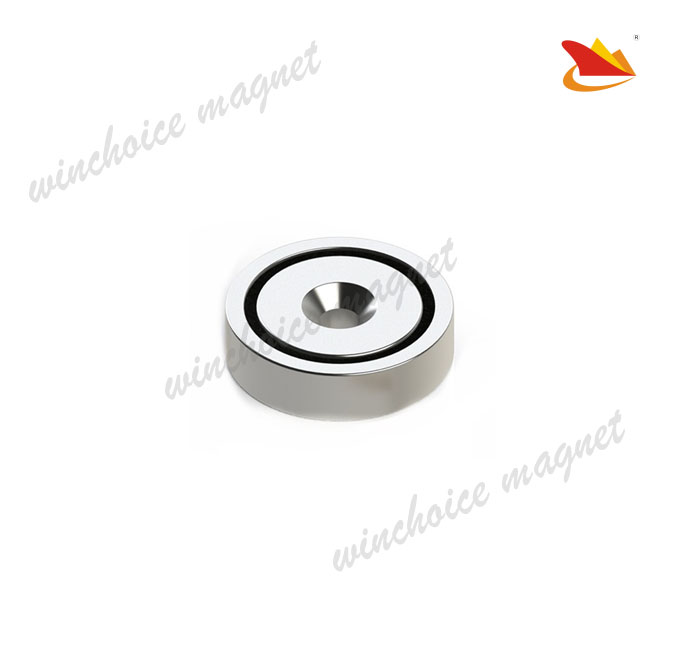

This pot magnet features a cylindrical body with a central countersunk hole, optimized for strong holding force on ferrous surfaces. It is ideal for applications requiring secure and reliable magnetic attachment.
Technical Specifications
Product Overview
High-Performance Mounting Magnets
These neodymium pot magnets are engineered for superior holding power in industrial and workshop applications. Featuring a durable steel housing that protects the magnet and concentrates magnetic force, they are designed for direct contact with ferrous surfaces. The integrated countersunk hole allows for easy, secure mounting using standard screws or bolts, making them an ideal solution for robust fastening needs.
Material & Finish
- Composition
- NdFeBSteel Pot
- Coating
- Nickel
Technical Specifications
Dimensions and Performance Table
| Model | D (mm) | D1 (mm) | D2 (mm) | H (mm) | Weight (g) | Breakaway (Kg) |
|---|---|---|---|---|---|---|
| POTN04-10 | 10 | 3.5 | 6.5 | 5 | 3 | 1 |
| POTN04-12 | 12 | 3.5 | 6.5 | 5 | 4 | 1.5 |
| POTN04-14 | 14 | 3.5 | 6.5 | 4.5 | 5 | 4 |
| POTN04-16 | 16 | 3.5 | 6.5 | 5.2 | 7 | 6 |
| POTN04-18 | 18 | 4.5 | 8.6 | 6 | 10 | 8 |
| POTN04-20 | 20 | 4.5 | 8.6 | 7.2 | 15 | 9 |
| POTN04-22 | 22 | 4.5 | 8.6 | 6.9 | 18 | 15 |
| POTN04-25 | 25 | 5.5 | 11 | 7.7 | 24 | 19 |
| POTN04-28 | 28 | 5.5 | 11 | 6.4 | 28 | 25 |
| POTN04-30 | 30 | 5.5 | 11 | 6.4 | 32 | 29 |
| POTN04-32 | 32 | 5.5 | 11 | 7.8 | 39 | 32 |
| POTN04-34 | 34 | 5.5 | 11 | 7.3 | 45 | 35 |
| POTN04-36 | 36 | 6.5 | 12 | 7.6 | 50 | 41 |
| POTN04-38 | 38 | 6.5 | 12 | 7.4 | 60 | 47 |
| POTN04-40 | 40 | 6.5 | 12 | 7.8 | 69 | 52 |
| POTN04-42 | 42 | 6.5 | 12 | 8.8 | 77 | 61 |
| POTN04-45 | 45 | 6.5 | 12 | 8.7 | 90 | 70 |
| POTN04-48 | 48 | 8.5 | 19 | 10.8 | 120 | 75 |
| POTN04-50 | 50 | 8.5 | 19 | 10.7 | 136 | 89 |
| POTN04-55 | 55 | 8.5 | 19 | 12 | 192 | 102 |
| POTN04-60 | 60 | 8.5 | 19 | 15 | 243 | 115 |
| POTN04-65 | 65 | 8.5 | 19 | 14.9 | 338 | 130 |
| POTN04-70 | 70 | 10.5 | 21 | 16.9 | 440 | 148 |
| POTN04-75 | 75 | 10.5 | 21 | 17.8 | 480 | 163 |
| POTN04-80 | 80 | 10.5 | 21 | 19 | 655 | 192 |
| POTN04-90 | 90 | 10.5 | 21 | 18 | 822 | 280 |
| POTN04-100 | 100 | 12.5 | 25 | 18 | 1,030 | 320 |
| POTN04-110 | 110 | 12.5 | 25 | 18 | 1,226 | 360 |
| POTN04-120 | 120 | 12.5 | 25 | 18 | 1,420 | 400 |
