Copper Cable Lug for Low Voltage Connection
This copper cable lug is designed for connecting copper cables to the copper ends of electrical equipment in low-voltage systems. It provides a reliable connection for power transmission and distribution applications.
Technical Specifications
Product Overview
Copper Cable Lug for Low Voltage Connections
These high-conductivity copper cable lugs are engineered for secure and reliable termination of copper cables in low-voltage electrical equipment. Constructed from high-purity copper (Cu ≥ 99.9%) with a durable tin-plated surface, they ensure optimal electrical performance and corrosion resistance. Designed for a wide range of power transmission and distribution applications, these lugs accommodate various conductor sizes and stud configurations to meet diverse installation requirements.
Material & Construction
- Material Composition
- Copper (Cu ≥ 99.9%)Tin Plated
- Primary Application
- Low voltage electrical equipment connections

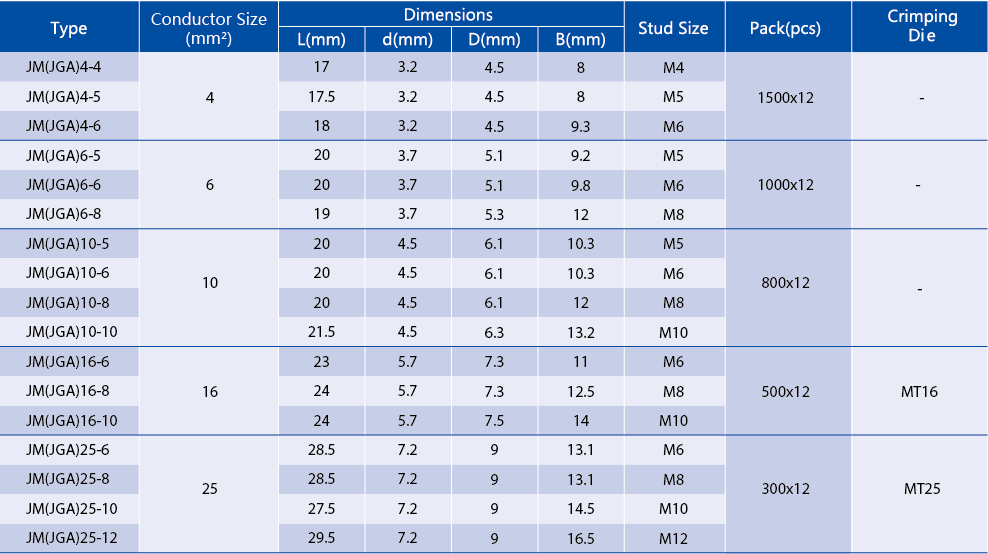

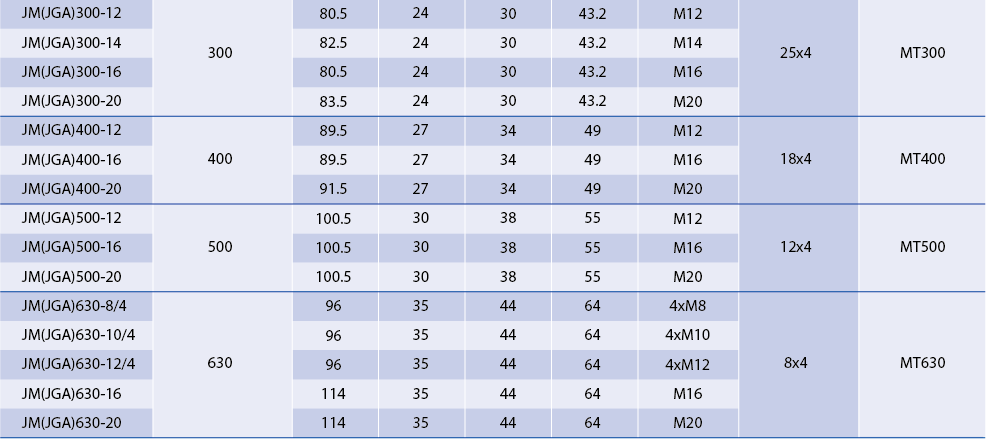

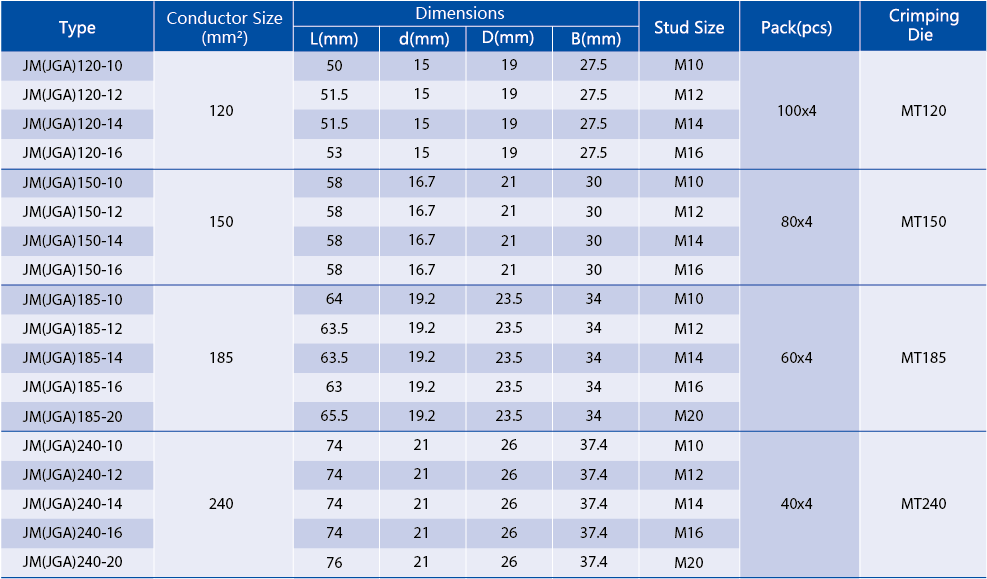

Technical Specifications
Conductor Size Range
4 mm²
Minimum
630 mm²
Maximum
Available Stud Sizes
M4M5M6M8M10M12M14M16M20
Compatible Crimping Dies
- MT16
- MT25
- MT35
- MT50
- MT70
- MT95
- MT120
- MT150
- MT185
- MT240
- MT300
- MT400
- MT500
- MT630
