Copper Cable Link for Low Voltage Connections
This copper cable link is used for intermediate connection of copper cables in low voltage applications. It provides a secure and reliable electrical connection.
Technical Specifications
Overview
High-Conductivity Copper Cable Links
These GTY series cable links are designed for the intermediate connection of copper cables in low voltage electrical systems. Manufactured from high-purity copper (Cu ≥ 99.9%), they ensure maximum electrical conductivity and minimal power loss. The tin-plated surface provides excellent corrosion resistance, making them a reliable choice for long-lasting power transmission and distribution applications.
Material & Build
Material Composition
99.9 %
Copper Purity
Surface Treatment
Tin Plated
- Primary Application
- Intermediate connection of copper cables in low voltage systems
Technical Specifications

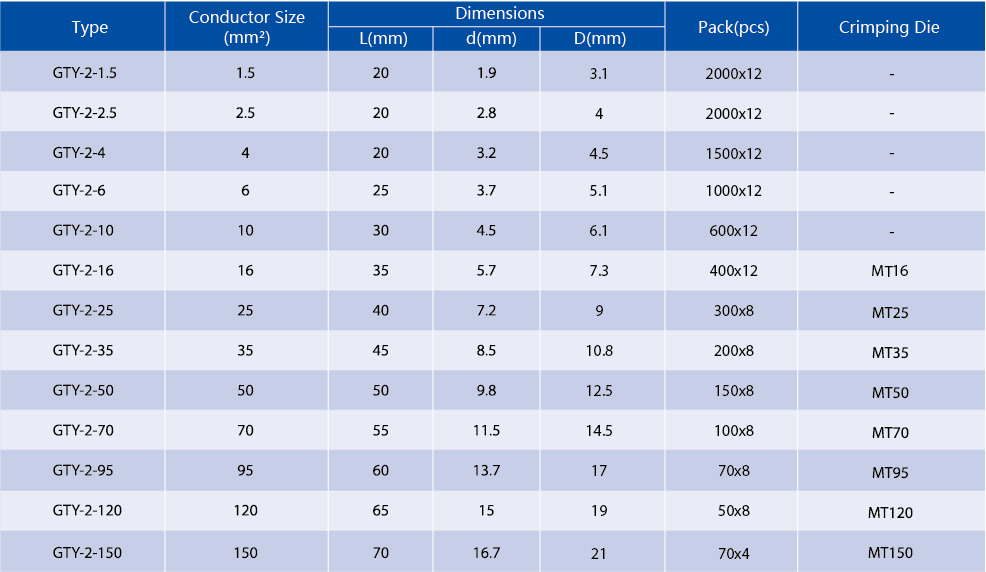

Standard Model Specifications
| Model | Conductor Size (mm²) | Length L (mm) | ID d (mm) | OD D (mm) | Crimping Die |
|---|---|---|---|---|---|
| GTY-2-1.5 | 1.5 | 20 | 1.9 | 3.1 | - |
| GTY-2-6 | 6 | 25 | 3.7 | 5.1 | - |
| GTY-2-16 | 16 | 35 | 5.7 | 7.3 | MT16 |
| GTY-2-35 | 35 | 45 | 8.5 | 10.8 | MT35 |
| GTY-2-70 | 70 | 55 | 11.5 | 14.5 | MT70 |
| GTY-2-120 | 120 | 65 | 15 | 19 | MT120 |
| GTY-2-240 | 240 | 80 | 21 | 26 | MT240 |
| GTY-2-500 | 500 | 100 | 30 | 38 | MT500 |
| GTY-2-1000 | 1,000 | 170 | 44 | 56 | MT1000 |
Key Features
- High-conductivity electrolytic copper
- Corrosion-resistant tin plating
- Secure crimp-on termination
- Robust construction for power distribution
- Conductor Size Range
- 1.5 mm² to 1000 mm²
