GTD Series Copper Cable Connectors
The GTD Series copper cable connectors are engineered for reliable intermediate connections in medium voltage applications. Manufactured from high-purity copper (Cu ≥ 99.9%) and finished with a durable tin-plated surface, these connectors ensure optimal conductivity and corrosion resistance. Designed to meet DIN 46267 standards, they feature precise barrel markings to assist with accurate crimping, ensuring a secure and professional installation every time.
Technical Specifications
Key Features
- Clear barrel markings for crimping location
- Compatible with DIN Standard crimping dies
- High-conductivity copper construction
- Corrosion-resistant tin plating
- Material
- Copper (Cu ≥ 99.9%)
- Surface Finish
- Tin plated
- Standard
- DIN 46267
- Application
- Medium VoltageIntermediate ConnectionPower Transmission
Dimensions and Sizing

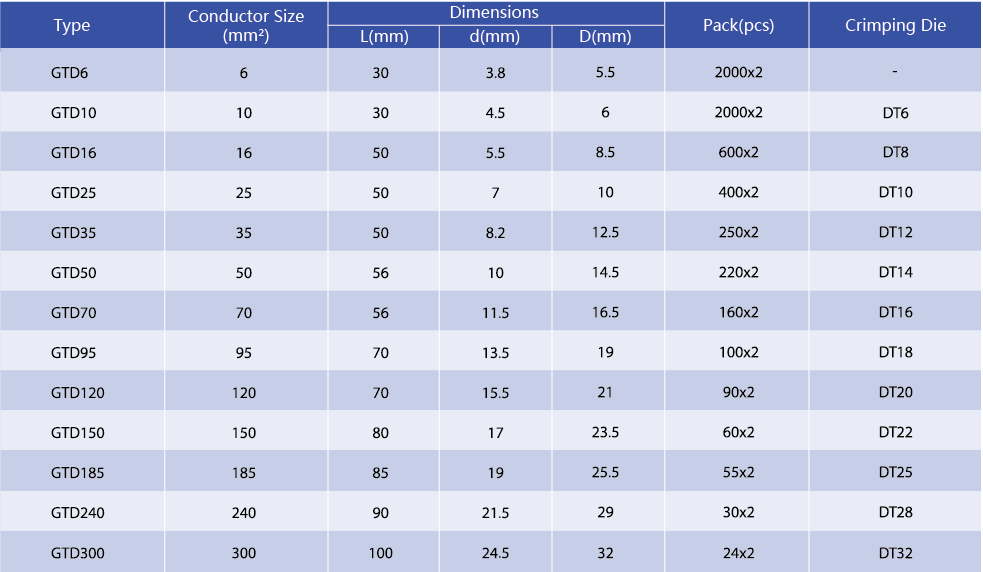

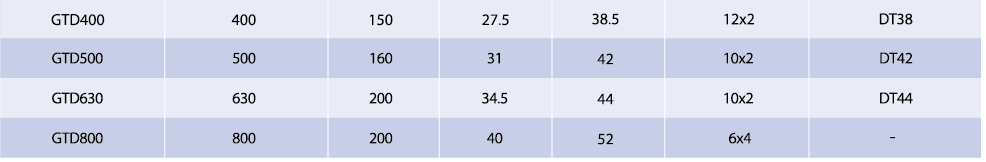

Standard Size Specifications
| Type | Conductor Size (mm²) | Length (mm) | Inner Diameter (mm) | Outer Diameter (mm) | Crimping Die |
|---|---|---|---|---|---|
| GTD6 | 6 | 30 | 3.8 | 5.5 | - |
| GTD10 | 10 | 30 | 4.5 | 6 | DT6 |
| GTD16 | 16 | 50 | 5.5 | 8.5 | DT8 |
| GTD25 | 25 | 50 | 7 | 10 | DT10 |
| GTD35 | 35 | 50 | 8.2 | 12.5 | DT12 |
| GTD50 | 50 | 56 | 10 | 14.5 | DT14 |
| GTD70 | 70 | 56 | 11.5 | 16.5 | DT16 |
| GTD95 | 95 | 70 | 13.5 | 19 | DT18 |
| GTD120 | 120 | 70 | 15.5 | 21 | DT20 |
| GTD150 | 150 | 80 | 17 | 23.5 | DT22 |
| GTD185 | 185 | 85 | 19 | 25.5 | DT25 |
| GTD240 | 240 | 90 | 21.5 | 29 | DT28 |
| GTD300 | 300 | 100 | 24.5 | 32 | DT32 |
