Copper Cable Connector for Medium Voltage Cables
This connector is used for intermediate connection of copper cables in medium voltage applications. It is made from high-quality copper with tin plating and conforms to AS/NZS 4325.1:1995, IEC 61238-1:2003 standards.
Technical Specifications
Product Overview
Professional Medium Voltage Cable Connectors
These high-quality copper cable connectors are designed for the intermediate connection of copper cables in medium voltage applications. Engineered to meet rigorous international and regional standards, they ensure reliable electrical performance in power transmission and distribution projects. The connectors feature a durable tin-plated surface for enhanced conductivity and protection.
Technical Specifications

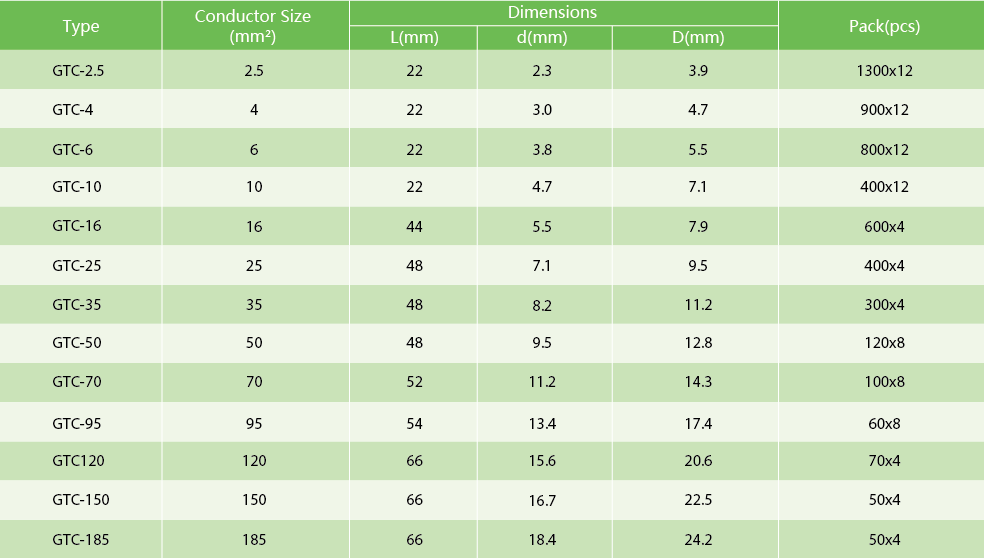

Standard Size Dimensions
| Type | Conductor Size (mm²) | Length (mm) | Inner Diameter (mm) |
|---|---|---|---|
| GTC-2.5 | 2.5 | 22 | 2.3 |
| GTC-4 | 4 | 22 | 3 |
| GTC-6 | 6 | 22 | 3.8 |
| GTC-10 | 10 | 22 | 4.7 |
| GTC-16 | 16 | 44 | 5.5 |
| GTC-25 | 25 | 48 | 7.1 |
| GTC-35 | 35 | 48 | 8.2 |
| GTC-50 | 50 | 48 | 9.5 |
| GTC-70 | 70 | 52 | 11.2 |
| GTC-95 | 95 | 54 | 13.4 |
| GTC-120 | 120 | 66 | 15.6 |
| GTC-150 | 150 | 66 | 16.7 |
| GTC-185 | 185 | 66 | 18.4 |

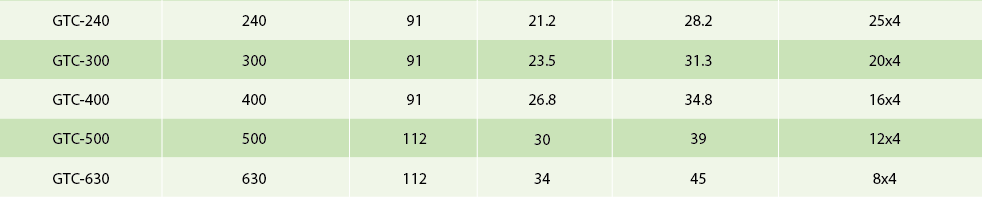

Heavy Duty / Large Size Connectors
| Type | Conductor Size (mm²) | Height (mm) |
|---|---|---|
| GTC-240 | 240 | 91 |
| GTC-300 | 300 | 91 |
| GTC-400 | 400 | 91 |
| GTC-500 | 500 | 112 |
| GTC-630 | 630 | 112 |
- Material
- Copper (Cu ≥ 99.9%)
- Surface Finish
- Tin plated
Compliance
- Standards
- AS/NZS 4325.1:1995IEC 61238-1:2003
