Conveyor Belt Return Roller
This return roller supports the conveyor belt and the materials being conveyed. It is available with standard groove angles of 30°, 35°, and 45° and includes standard, lean, and forward types to prevent belt deviation.
Technical Specifications
Product Overview

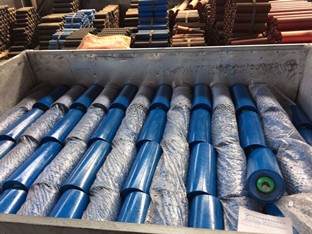

Industrial Conveyor Return Roller
These heavy-duty conveyor return rollers are engineered to provide reliable support and smooth operation for conveyor systems. Designed to minimize belt deviation and ensure efficient material transport, they feature durable steel construction suitable for demanding industrial environments. Available in various configurations, these rollers are a critical component for maintaining high performance and reducing downtime in mining, power, and logistics operations.
Technical Specifications
Groove Angles
- 30°
- 35°
- 45°
Common Configuration Data
| Roller Size | Bearing Diameter (mm) | Max Load Capacity (kg) |
|---|---|---|
| 16 inch | 15 | 94.1 |
| 20 inch | 20 | 154.6 |
| 36 inch | 20 | 128.6 |
| 48 inch | 25 | 186.9 |
- Available Types
- StandardLean TypeForward Type
Certifications
Compliance & Certifications
ISO 9001:2008ISO 14001:2015OHSAS 18001:2007CE Certified
