Continuous Slot Wedge Wire Water Well Screen
Continuous slot wedge wire screens are engineered for water well filtration and structural support. Their design maximizes open area, reduces clogging, and ensures efficient water flow while preventing sand and gravel entry.
Technical Specifications
Product Overview
High-Performance Filtration
Continuous slot wedge wire water well screens are engineered for superior filtration and structural integrity in demanding well environments. By wrapping V-shaped wire around longitudinal support rods and fusion welding every intersection, these screens create a continuous slot opening that maximizes open area. This design minimizes head loss and entrance velocity, effectively preventing sand and gravel ingress while allowing water to flow freely for long-term well performance.
Technical Specifications
Wedge Wire Dimensions
| Parameter | Available Sizes (mm) |
|---|---|
| Wire Width | 1.50, 1.80, 2.30, 3.00, 3.30, 3.70 |
| Wire Height | 2.20, 2.50, 2.70, 3.60, 4.30, 4.70, 5.60, 6.30, 7.00 |
Support Rod Specifications
| Parameter | Available Sizes (mm) |
|---|---|
| Width | 2.30, 3.00, 3.30, 3.70 |
| Height | 2.70, 3.60, 4.70, 5.60, 6.30 |
| Round Rod Diameter | 2.50 to 6.00 |
Physical Dimensions
6 meters
Max Length
1,200 mm
Max Diameter
- Slot Size Range
- 0.10mm to 6.00mm
Material & Construction

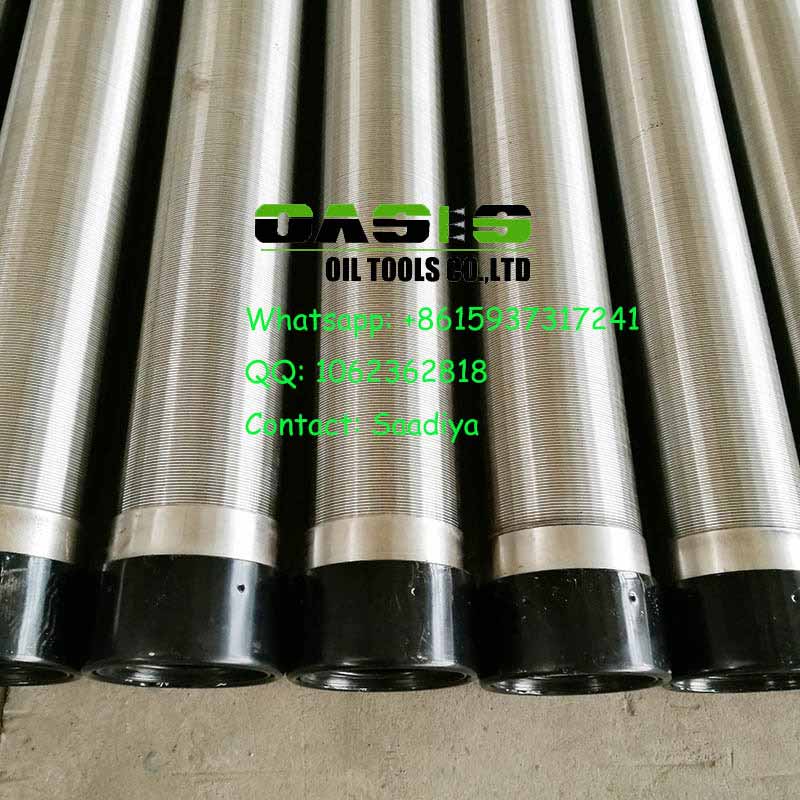

End Connections
- Plain beveled ends
- Flanged
- Threaded couplings
- Available Materials
- Galvanized Low Carbon SteelStainless Steel 304Stainless Steel 316
