Technical Specifications
Overview
High-Automation Continuous Quenching Solution

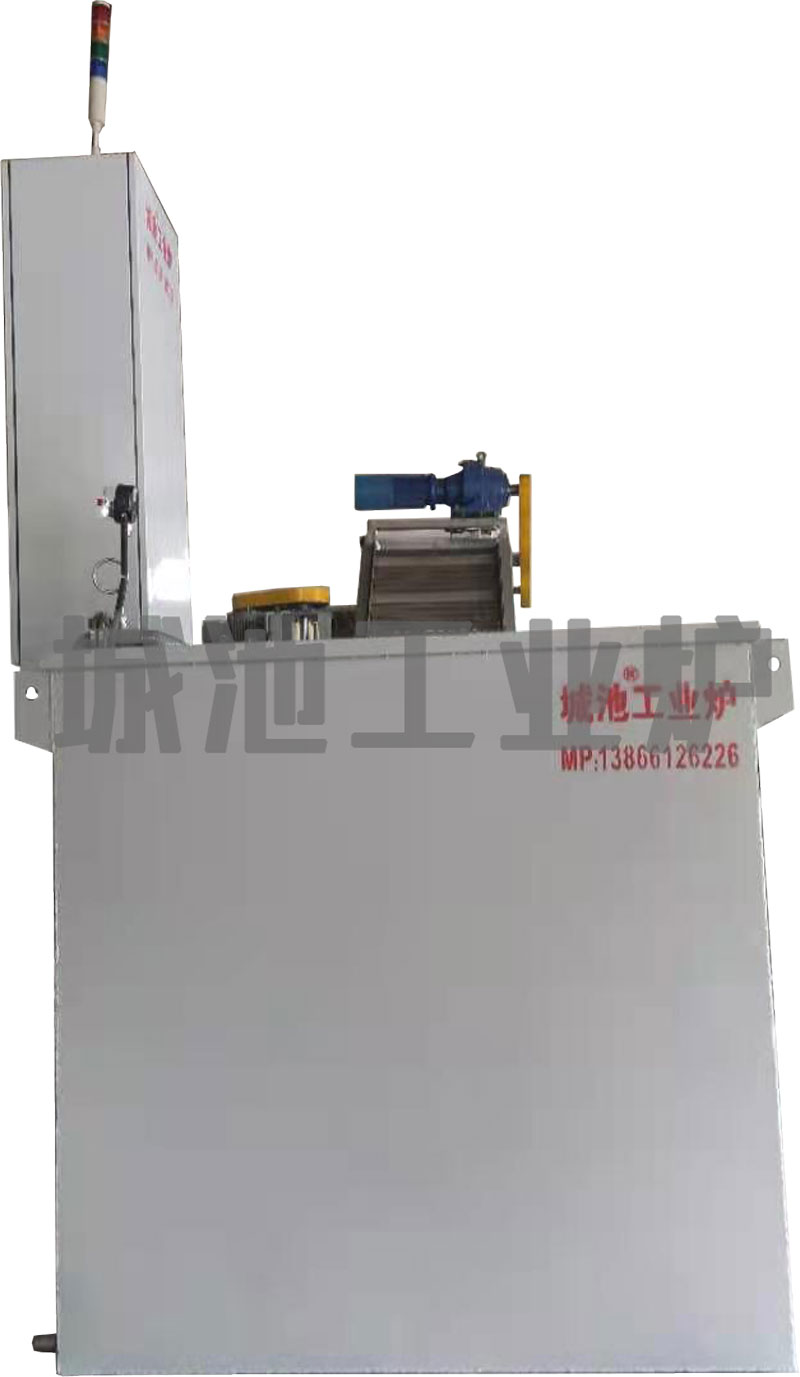

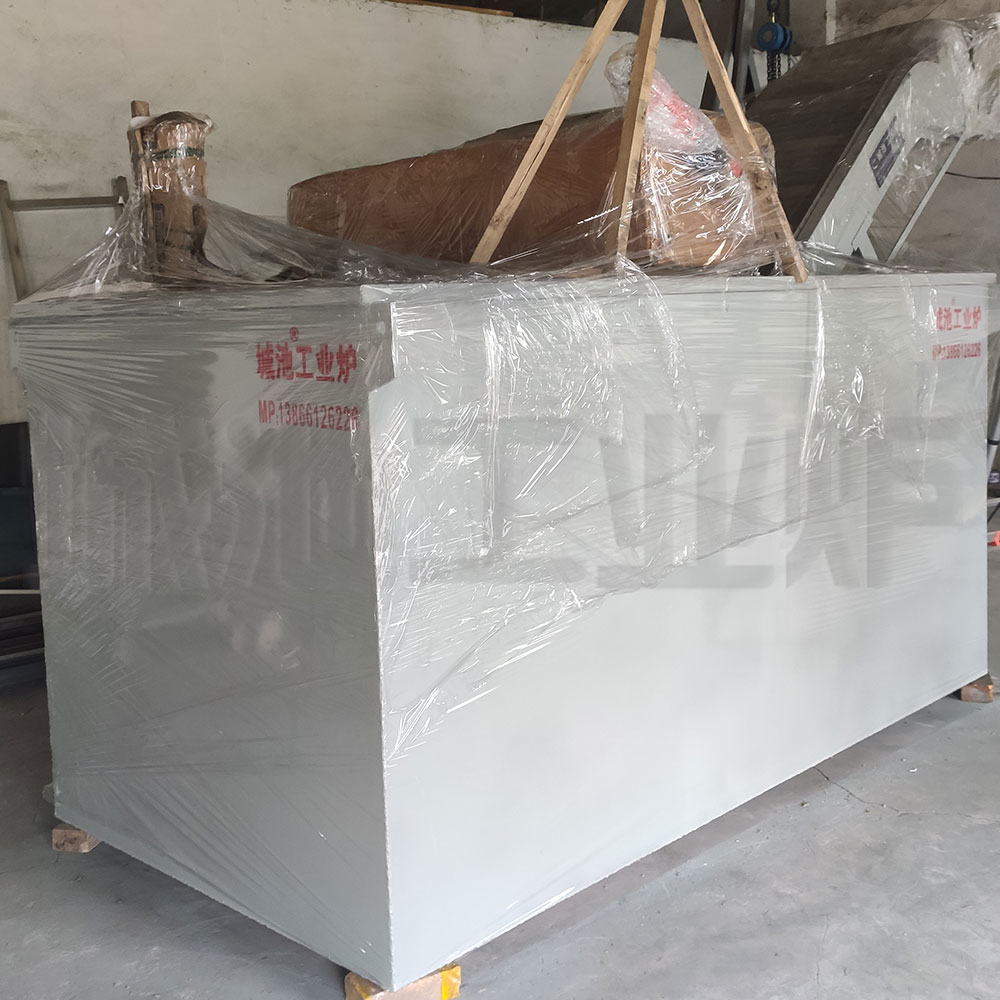

This belt lifting continuous automatic quenching tank is a digital integrated multifunctional system designed for high-volume hardening production lines. It features a robust stainless steel construction and offers high temperature and corrosion resistance for demanding industrial environments. The system ensures stable conveying performance and energy-efficient operation, making it an ideal choice for modern digital factories.
- Key Features
- High AutomationCorrosion ResistantEnergy SavingDigital IntegratedAdjustable SpeedContinuous Production
System Composition
System Components
- Stainless steel tank body
- Belt lifting system
- Heating system with stainless tubes
- Cooling circulation system
- Spray system with pressure sensors
- Stirring system with impeller
- Sensor network (Level, Pressure, Thermocouple)
- Integrated control system
Technical Specifications
Elevator & Conveyor Details
- Stainless steel mesh belt
- Integrated baffles
- Chain drive with reducer
- Stepless adjustable speed
- Material Construction
- Stainless steel channel steel, pipe, angle steel bracket, and welded stainless steel plate
Control & Connectivity
Control Hardware
- PLC (Programmable Logic Controller)
- HMI Man-Machine Interface
- Frequency converter
- Digital temperature controller
- Manual and Automatic dual-mode control
Network Interface
Ethernet
- Digital Factory Ready
- Yes
Thermal Management
- Cooling System Type
- Glue-free embedded plate heat exchanger with pump and pressure sensors
- Heating Element
- Stainless steel heating tubes
