Containerized Soundproof Diesel Generator Set

This containerized diesel generator set offers reliable power generation with a Cummins engine. The soundproof enclosure ensures quiet operation and protection from the elements.

Request a Quote Download PDFPDF

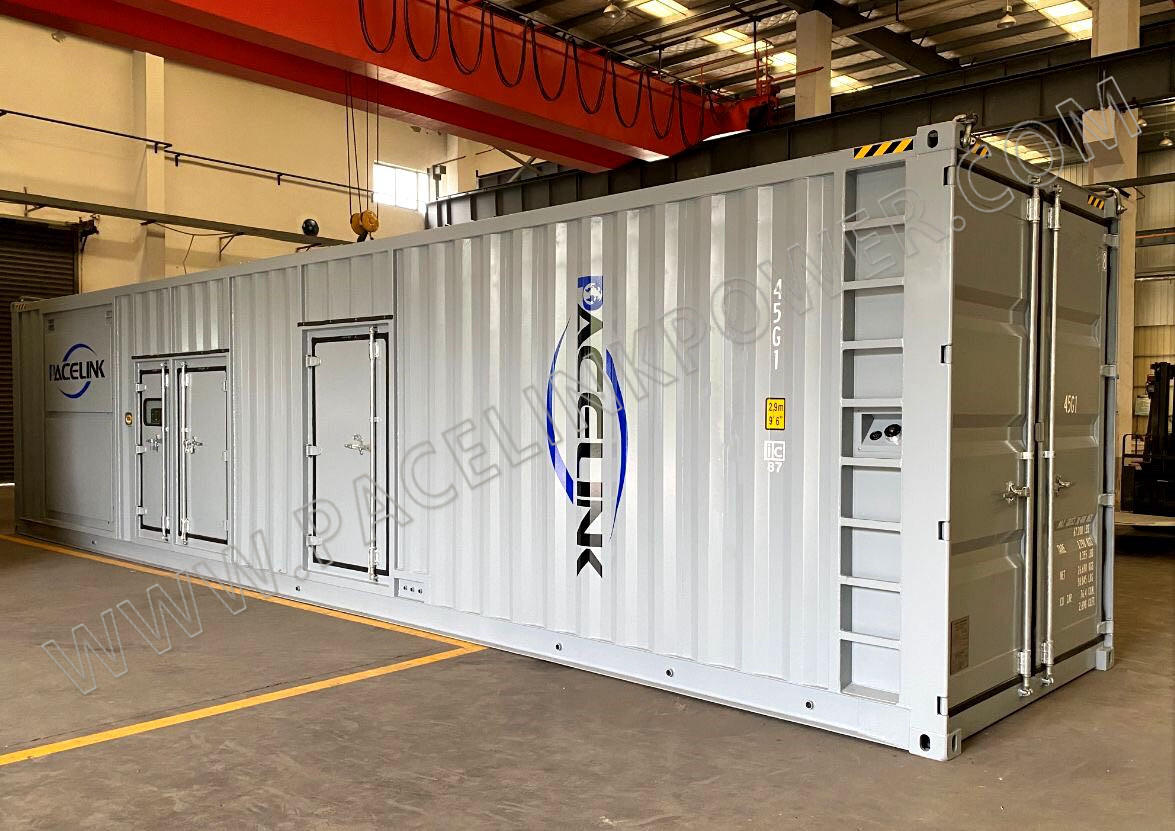

Containerized Soundproof Diesel Genset Powered with Cummins Engine with Ce/ISO - Image 1

Technical Specifications

Overview

High-Performance Containerized Power Solution

This containerized soundproof diesel generator set is engineered for reliable power generation in demanding environments. Featuring a super-silent canopy design and a high-performance residential muffler, it significantly minimizes noise levels for use in noise-sensitive areas. The unit is housed in a robust, weather-resistant container with integrated lifting points and forklift pockets, ensuring easy transportation and rapid deployment for industrial, commercial, or emergency backup applications.

Performance Ratings

Key Power Ratings

1,650 kVA

Standby Power

1,475 kVA

Prime Power

1,500 RPM

Rated Speed

Voltage Configurations (50Hz)

Voltage (V)	Prime Amps (A)	Phase
380/220	2,241	3
400/230	2,129	3
415/240	2,052	3

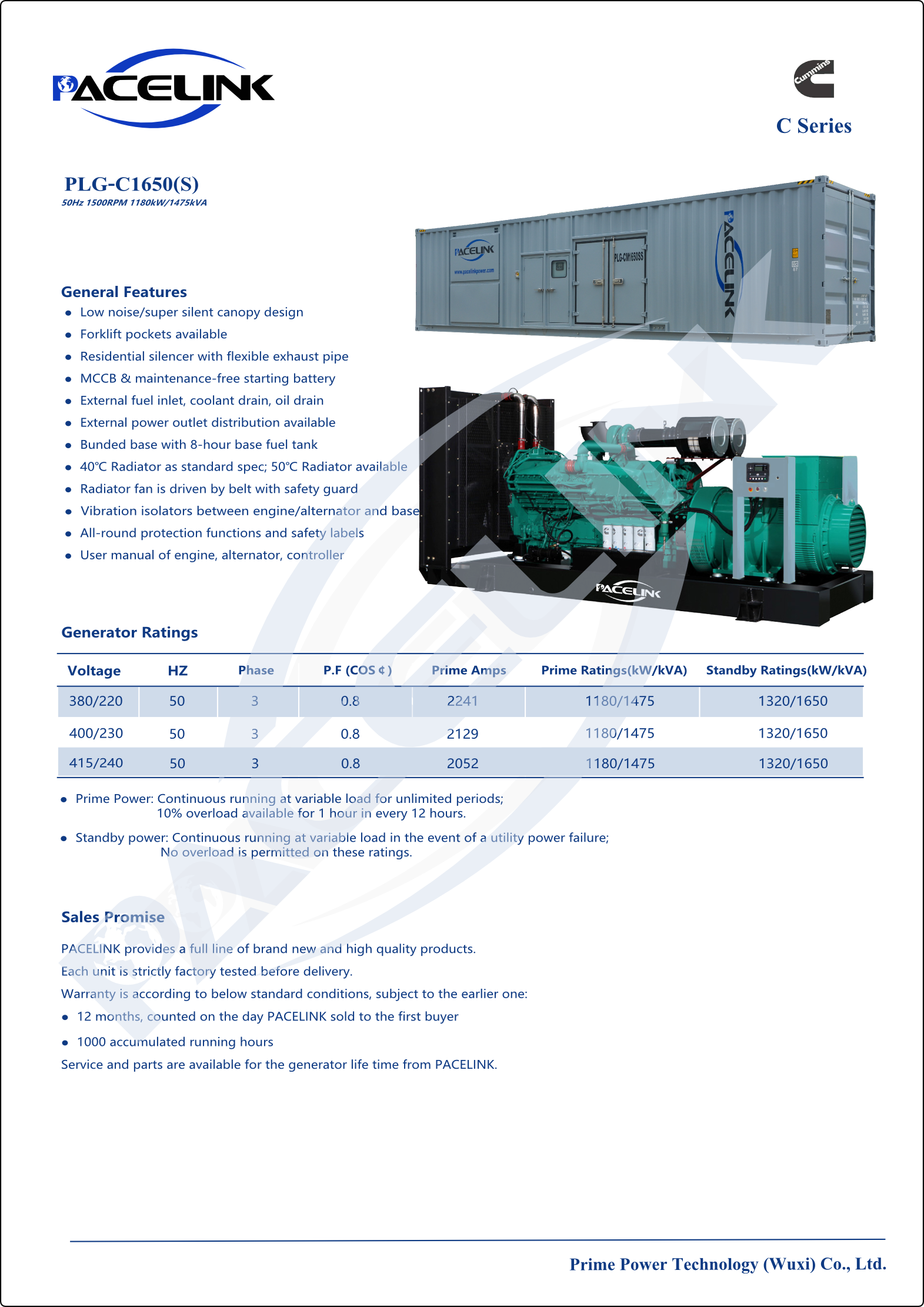

General features and generator ratings overview — Comprehensive overview of the containerized genset features and power ratings across different voltages.

Engine Specifications

Engine Technical Data

Configuration: 16 Cylinders, 60°V Arrangement
Displacement: 50.3 Liters
Aspiration: Turbocharged, Low Temp Aftercooled
Fuel System: Direct Injection
Compression Ratio: 14.9:1
Governor: Electronic
System Voltage: 24V DC

Fuel Consumption (L/h)

Load Percentage	Consumption Rate
100% Load	289 L/h
75% Load	222 L/h
50% Load	155 L/h
25% Load	82 L/h

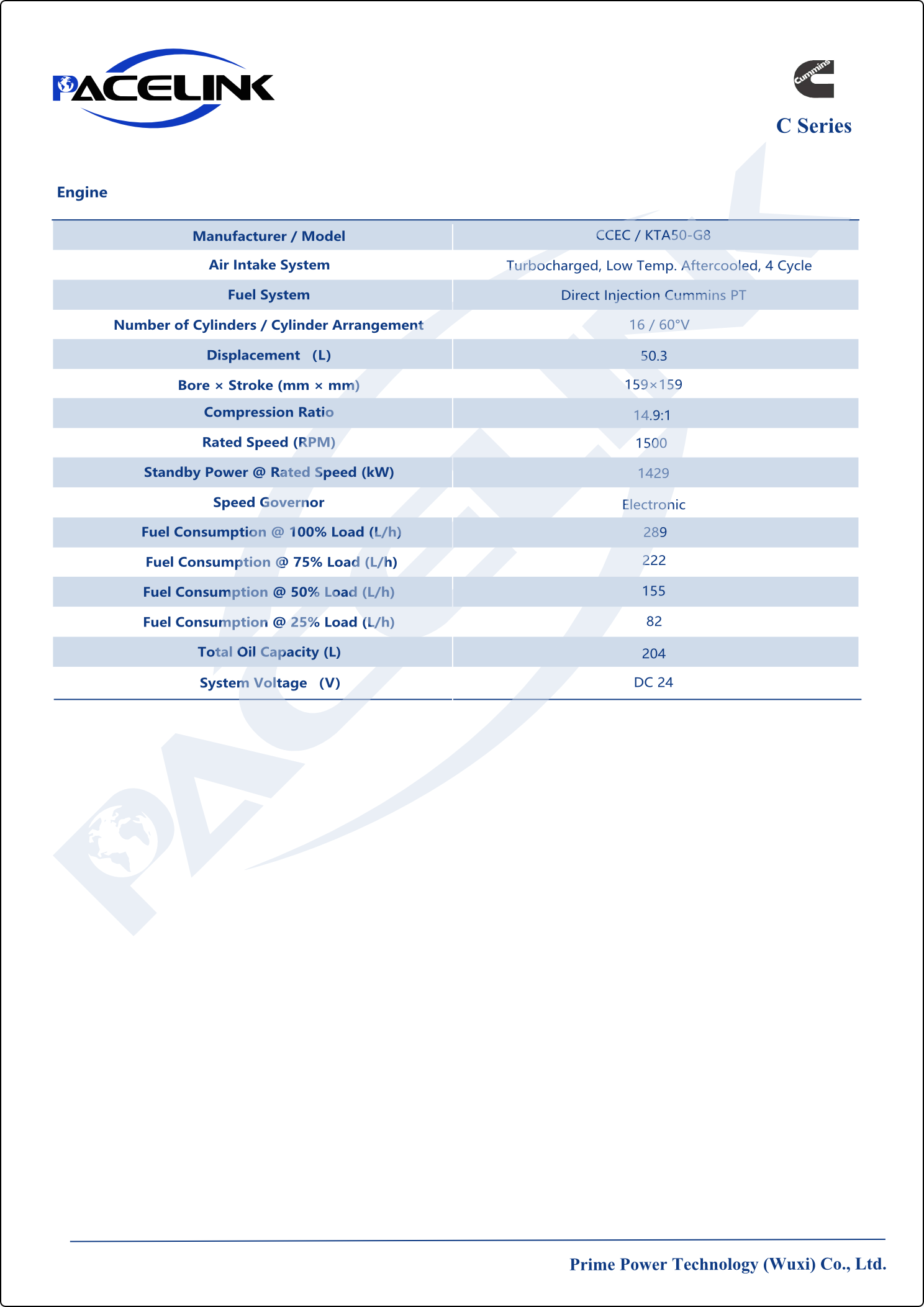

Engine technical data sheet — Detailed technical specifications for the 16-cylinder diesel engine including fuel consumption rates.

Alternator & Control

Alternator Features

Type: Brushless, Single Bearing, Self-excited
Insulation Class: H/H
Protection Grade: IP23
Voltage Regulation: ≤±1%
Power Factor: 0.8

Monitored Parameters: VoltageCurrentOil PressureWater TempFuel LevelRunning TimeBattery VoltageFrequency

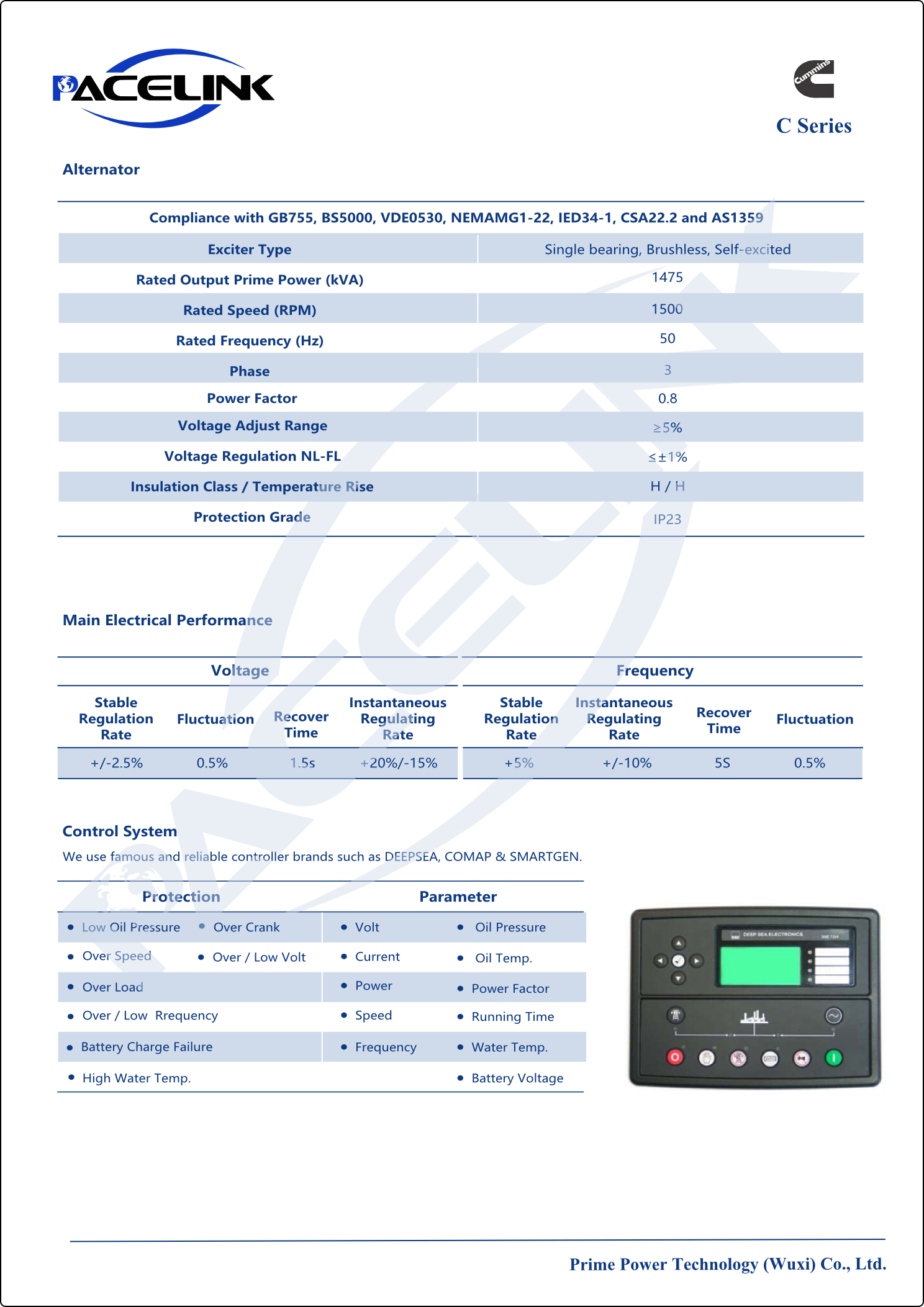

Alternator and control system specifications — Electrical performance data and monitoring parameters for the alternator and control unit.

Enclosure & Physical

Container Dimensions

Length: 12192 mm
Width: 2438 mm
Height: 2591 mm
Weight: 15000 kg

Canopy & Safety Features

Soundproof/Silent type design
High quality outdoor powder coating (Anti-corrosion/UV)
Fully bunded base fuel tank (Environmental protection)
Holistic disassembly structure for easy maintenance
Earth straps on all doors for safety
External lockable fuel inlet

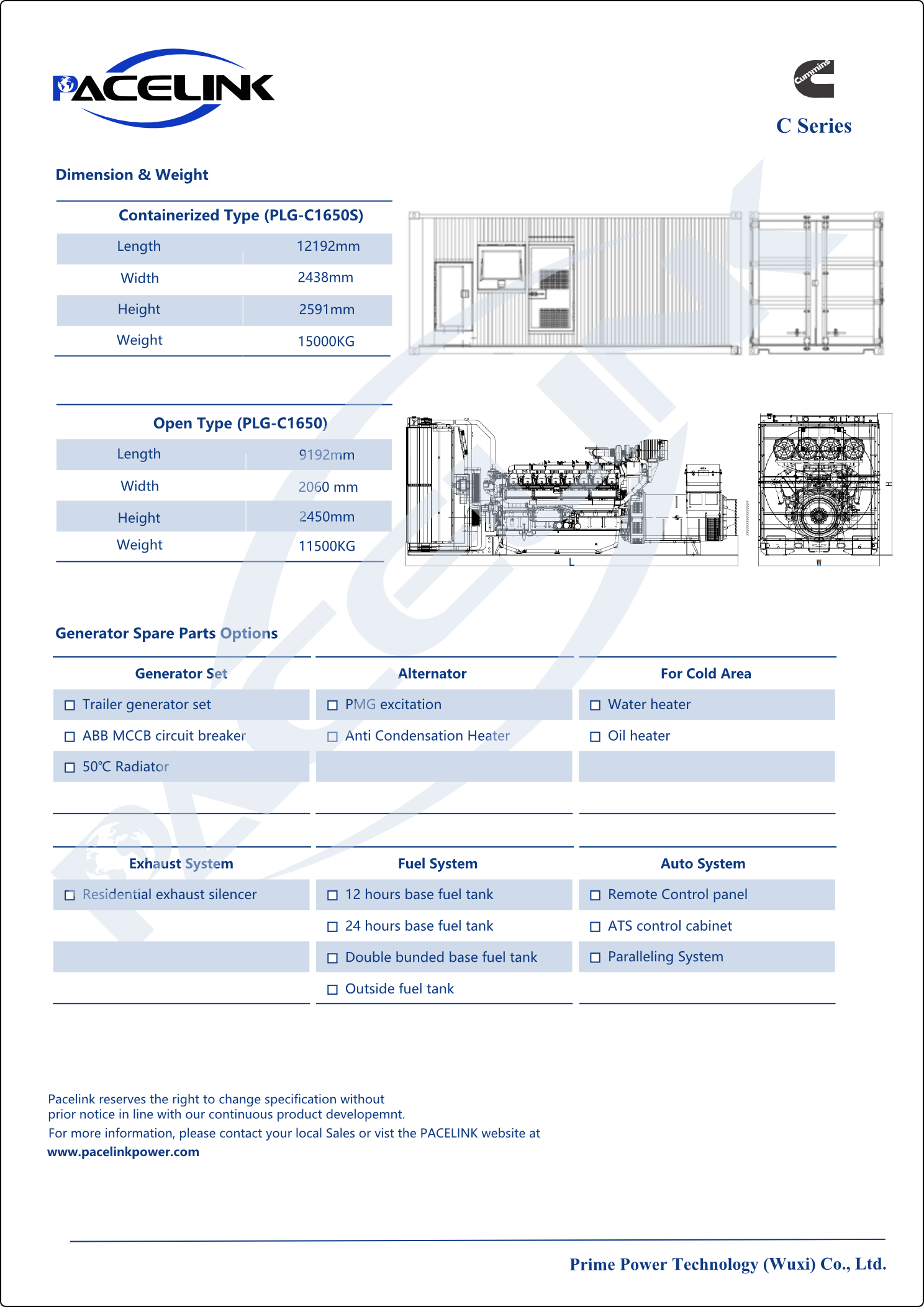

Dimensions, weight and optional equipment — Physical dimensions for containerized and open types, plus available optional upgrades.

Compliance & Standards

Standards Compliance

CEISOGB755BS5000VDE0530IEC34-1
