Industrial Railway Power Solution

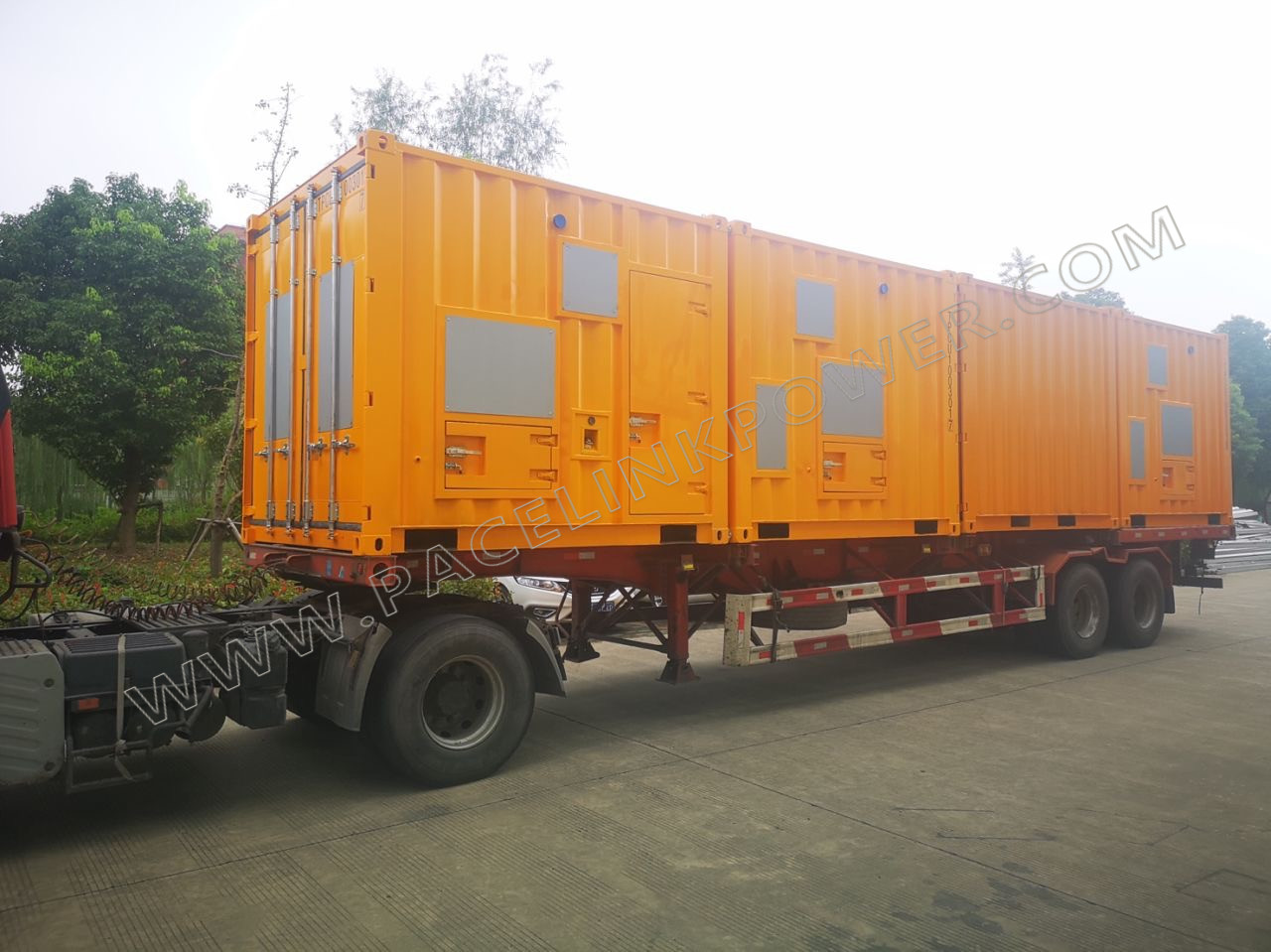

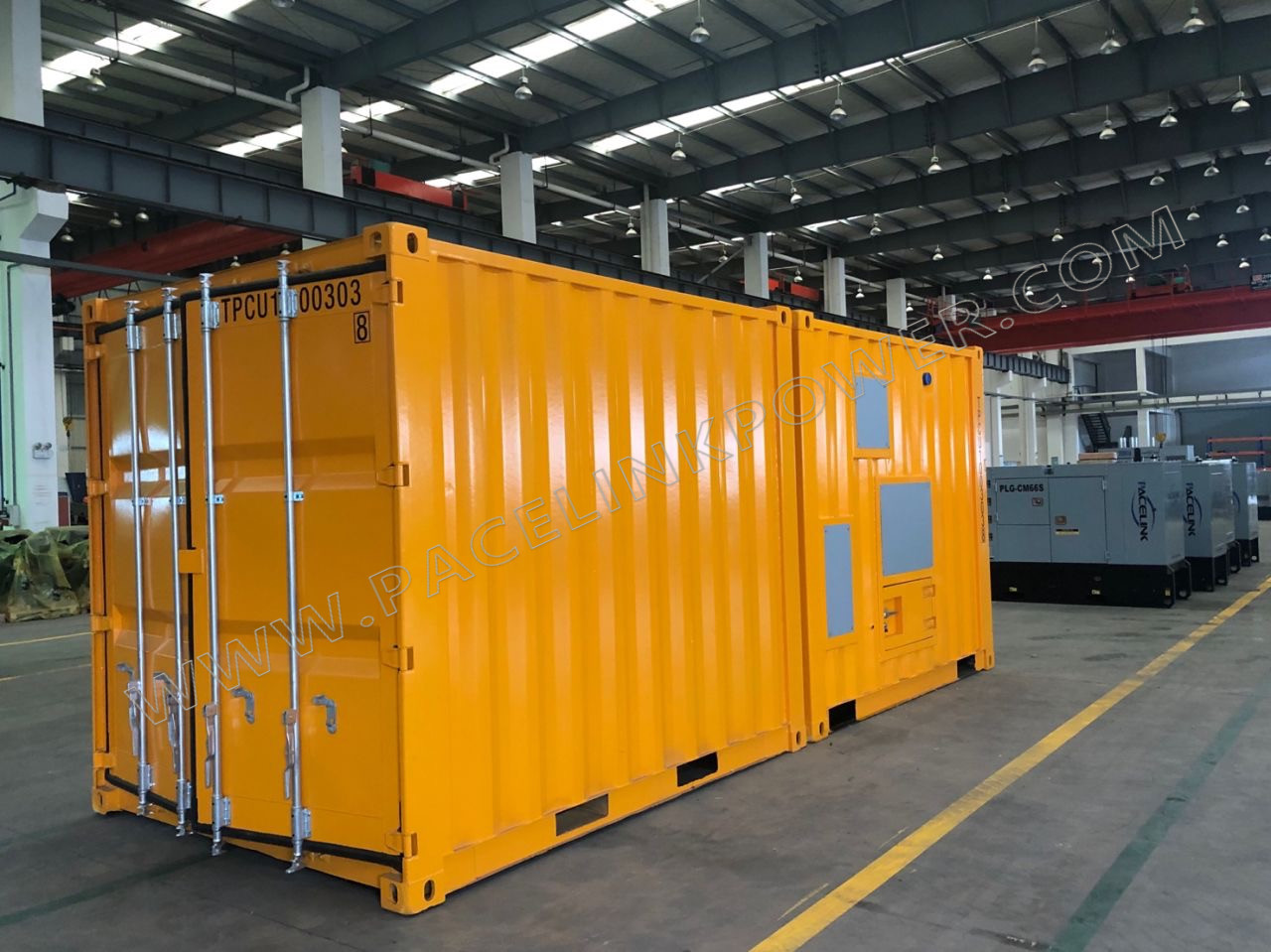

This 160 kVA containerized diesel generator set is engineered specifically for demanding railway and mining environments. The unit features a dual 80 kVA configuration housed in a rugged 10-foot container for maximum durability and transportability. Equipped with a comprehensive control system and a 1000L integrated fuel tank, it ensures reliable performance in high-ambient temperatures.
Technical Metrics
Key Performance Metrics
160 kVA
Total Power Output
1,000 L
Fuel Tank Capacity
40 °C
Ambient Operating Temp
Configuration
Core Components
| Component | Specification |
|---|---|
| Engine | Air-cooled |
| Alternator | Stamford |
| Configuration | 2 x 80 kVA units |
Safety & Control
Control & Protection Systems
- DSE7320 Controller
- Siemens PLC
- SOCOMEC ATS
- ABB Motorized Breaker
- Fully bunded base fuel tank
- Earth strap fitted on all doors
Construction
- Canopy Specifications
- 10' ISO Standard ContainerGalvanized sheet metalCSC CertifiedHigh-quality powder coatingMine Spec Skid baseTop lifting pointsFork pockets
