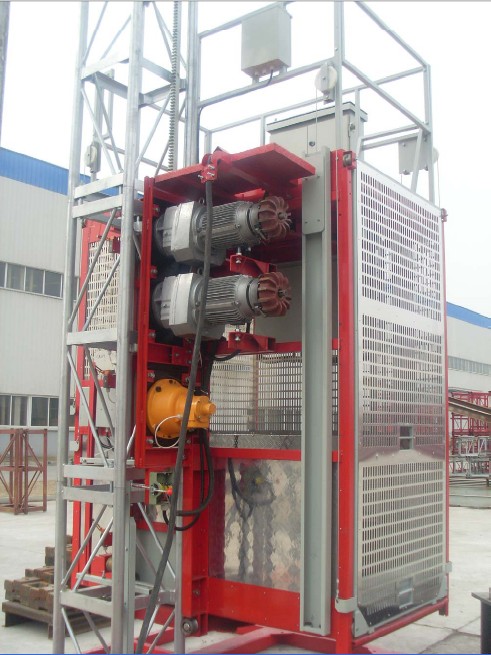

Construction Building Hoist Elevator
The construction building hoist elevator is designed for vertical transportation of materials and personnel on construction sites. It features a robust steel frame, a spacious cage, and a reliable drive system.
Technical Specifications
Product Overview
Professional Construction Hoist
This construction building hoist is engineered for reliable vertical transportation of personnel and materials on high-rise sites. Featuring a modular mast system and robust aluminum-steel hybrid cage construction, it ensures durability and ease of assembly. Equipped with comprehensive safety mechanisms and high-grade electrical components, this hoist provides a secure and efficient solution for demanding construction environments.
Mast & Anchoring
- Mast Section Dimensions
- 650 x 650 x 1508 mm
- Steel Quality
- Q235
Cage & Dimensions
Cage Specifications
| Capacity Type | Dimensions (L x W x H) |
|---|---|
| 1.2T and 2.0T | 3.0m x 1.5m x 2.5m |
| 2.7T and 3.2T | 3.8m x 1.5m x 2.5m |
- Cage Materials
- Checked Steel BaseAluminum SidewallsPerforated Aluminum UpperSolid Aluminum Lower
Safety Systems
Safety Features
Anti-Drop Safety DeviceUp/Down Limit SwitchesEmergency Cut-offHorn3-Phase ELCB
Electrical & Mechanical
Buffer Systems
1.2 T
Spring Buffer Capacity
3.2 T
Hydraulic Buffer Capacity
- Motor Protection Rating
- IP55
Finishing & Exterior
Surface Treatment
- Sand blasting
- Powder coating
- 2 Layers Epoxy resin coat
- Standard Color
- Blue (RAL 5002)
