Cone Marine Rubber Fender for Dock Protection
Cone type rubber fender's structure is more reasonable, deflection can reach 70%. The equal specification fender energy absorb raise one more times, long life using.
Technical Specifications
Overview

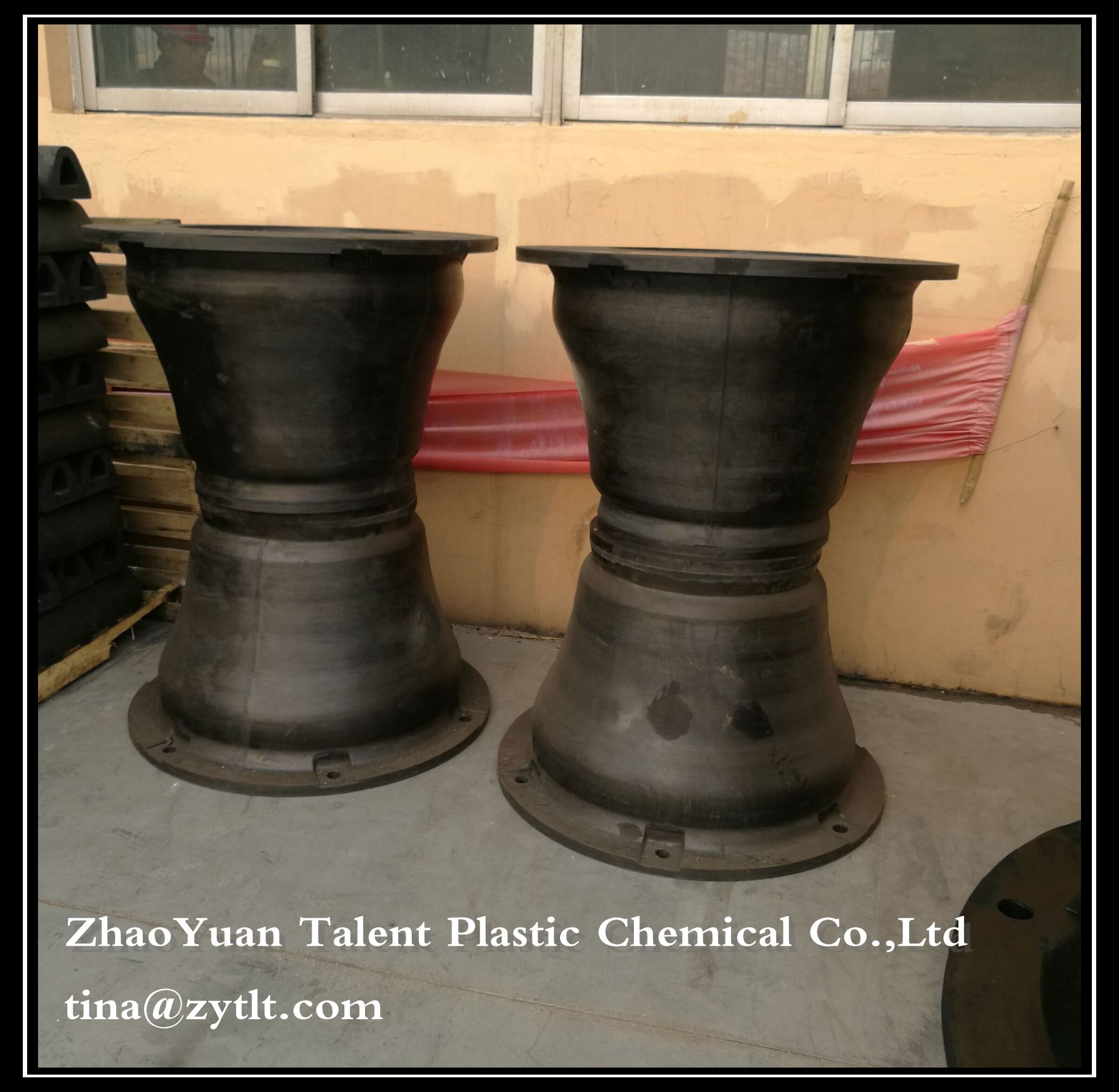

High-Performance Cone Marine Rubber Fender
The Cone type rubber fender represents the 3rd generation of cell-type fenders, featuring a refined structure that allows for deflections up to 70%. This design significantly increases energy absorption compared to standard specifications, effectively reducing dock project costs while ensuring a long service life. It is specifically engineered to maintain stable performance even during angular vessel berthing, making it an ideal choice for large-scale maritime infrastructure.
Key Features
Design Benefits
- Reasonable structure with deflection reaching up to 70%
- Stable performance during angular berthing
- Surface pressure controlled below 200KN/㎡ to protect vessel hulls
- Integrated UHMW-PE face pads to reduce friction and shear strength
- Versatile installation styles for various dock types
- High energy absorption with low reaction force
Performance Metrics
Rated Performance Standards
70 %
Rated Compression Deflection
72.5 %
Max Compression Deflection
200 KN/㎡
Max Surface Pressure
10 +/- %
Performance Tolerance
- Reaction Force Grades
- RS (Ultra High)RH (High)RO (Standard)RL (Low)
Technical Specifications
Fender Performance Data (at 70% Deflection)
| Model Type | RS Reaction (KN) | RS Energy (KN-M) | RO Reaction (KN) | RO Energy (KN-M) |
|---|---|---|---|---|
| TLT-AB 500 | 335 | 79 | 200 | 47 |
| TLT-AB 800 | 862 | 368 | 502 | 224 |
| TLT-AB 1000 | 1,339 | 669 | 784 | 437 |
| TLT-AB 1300 | 2,125 | 1,585 | 1,320 | 1,043 |
| TLT-AB 1800 | 3,750 | 3,538 | 2,401 | 2,264 |
System Components

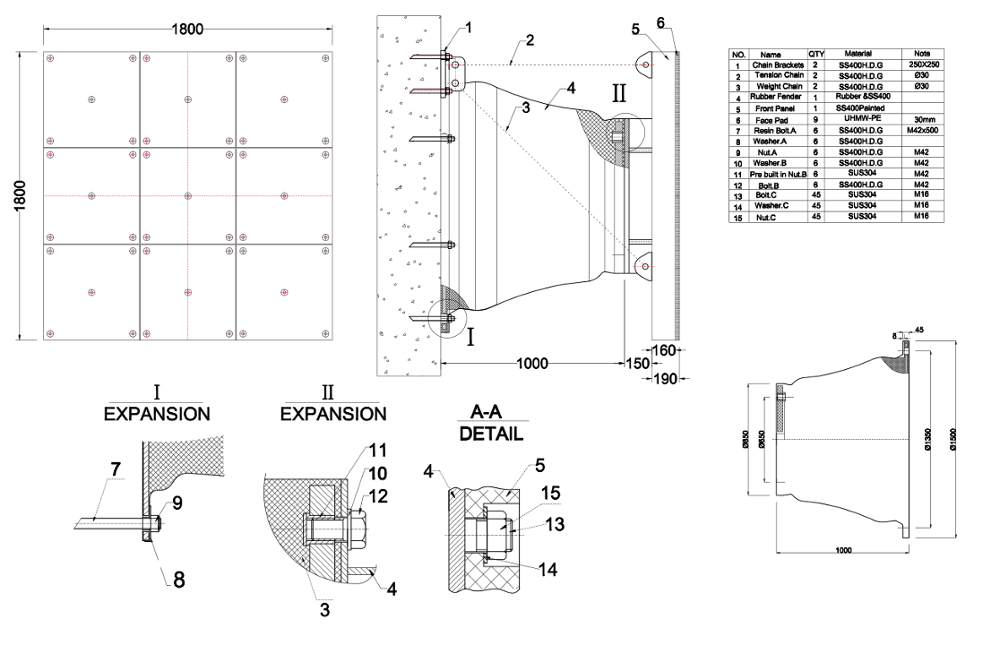

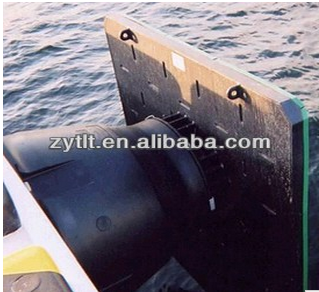

System Assembly Components
- Rubber Fender Body
- Front Panel (Steel)
- UHMW-PE Face Pads (30mm)
- Tension Chains & Weight Chains
- Chain Brackets
- Resin Bolts, Washers, and Nuts
Quality & Inspection
Accepted Inspection Bodies
BVLRABSCCSISODNV
- Inspection Policy
- Third-party inspection and on-spot inspection are available upon request.
