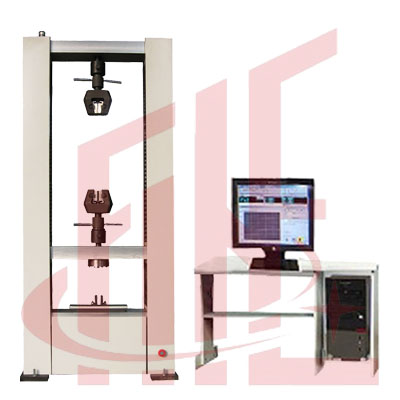

Computer Controlled Universal Testing Machine
This electronic universal testing machine offers advanced load frame structure. It allows for automated testing, real-time data analysis, and detailed reporting.
Technical Specifications
Overview
High-Precision Universal Testing Machine
This series of electronic universal testing machines features an advanced load frame structure combined with Japanese-engineered servo timing systems. It supports closed-loop control for parameters such as load, specimen distortion, and crosshead displacement. Designed for compliance with national standards for metallic material testing, the system provides automated data processing and real-time test curve visualization.
Key Performance Metrics
Accuracy & Precision
1 %
Load Accuracy
1 %
Deformation Accuracy
0.01 mm
Displacement Resolution
Technical Specifications
Model Range Configuration
| Model | Max Load | Test Width |
|---|---|---|
| WDW-10 | 10kN | 600mm |
| WDW-20 | 20kN | 600mm |
| WDW-50 | 50kN | 600mm |
| WDW-100 | 100kN | 600mm |
| WDW-200 | 200kN | 600mm |
| WDW-300 | 300kN | 600mm |
System Capabilities
- Standard Compliance
- GB228 Metallic material room temperature tensile testClose-loop controlAuto-measuring r & n value
- Clamp Type
- Wedg
