Technical Specifications
Overview
Compact Passenger Transport Solution

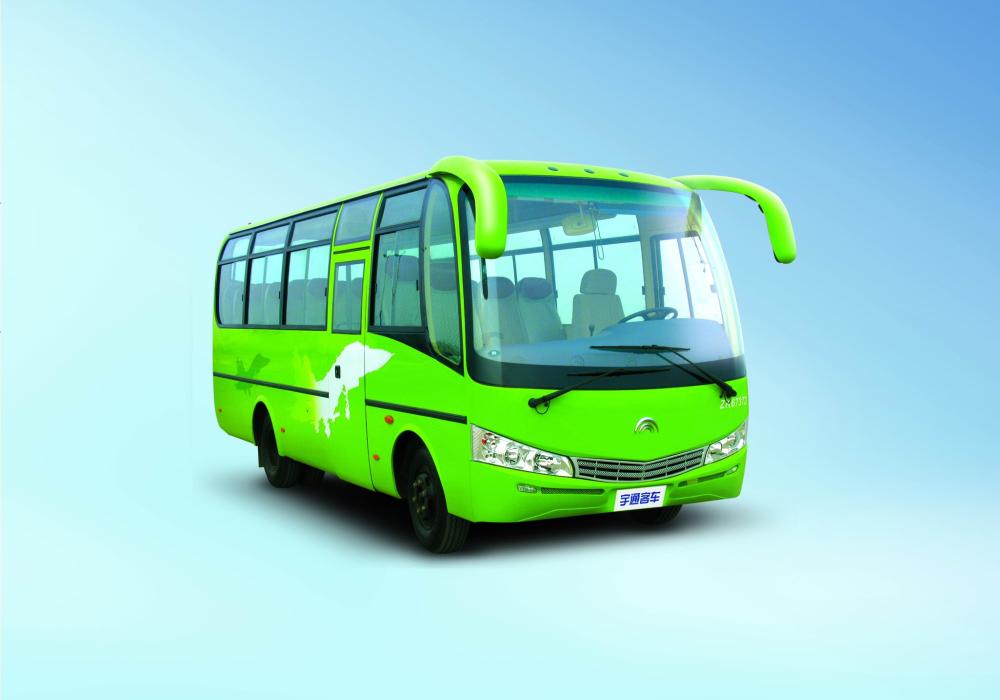

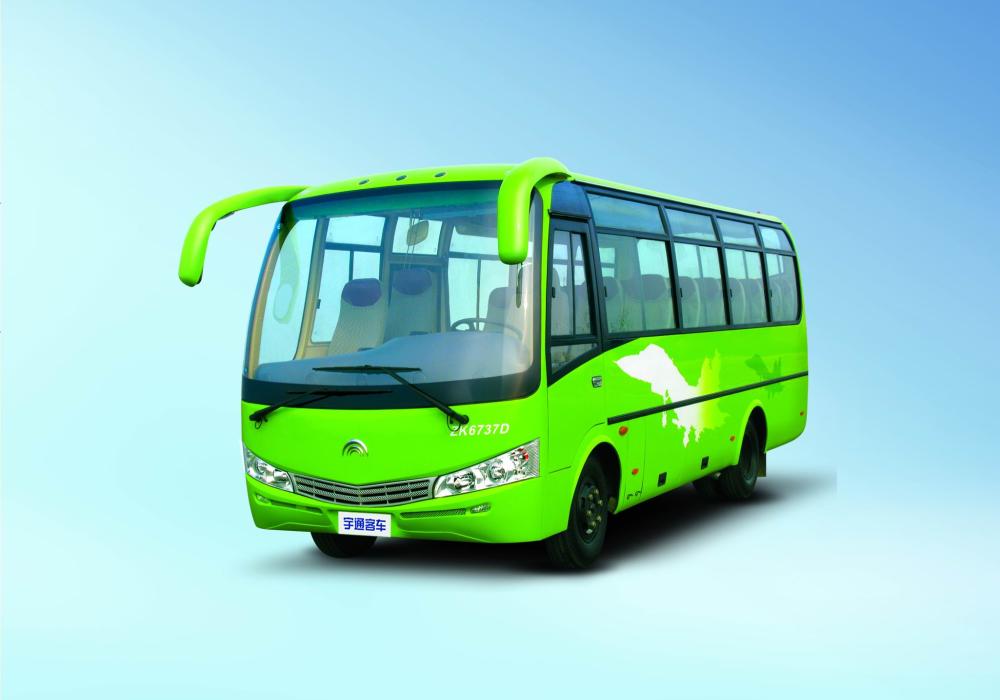

The ZK6737D is an efficient, compact coach engineered for reliable shuttle and urban transport services. It combines a streamlined, aerodynamic exterior with a comfortable, passenger-focused interior layout. Built for performance and fuel economy, this vehicle provides a cost-effective solution for professional operators requiring maneuverability and ease of maintenance.
Dimensions and Capacity
Physical Dimensions & Capacity
7,330 mm
Overall Length
7,820 kg
Max Weight
24 seats
Total Seating
Detailed Dimensions
| Dimension | Value |
|---|---|
| Width | 2320 mm |
| Height | 2950 mm (3060 mm with A/C) |
Powertrain
Engine Specifications
- Engine Model: ISDe140 30
- Displacement: 4.5 L
- Fuel Type: Diesel
- Max Power: 103 kW / 2500 rpm
- Max Torque: 450 Nm / 800-1700 rpm
Technical Features
Mechanical Systems
| Component | Specification |
|---|---|
| Clutch | Sachs |
| Gearbox | 6 forward + 1 reverse |
| Suspension | Leaf spring |
- Standards & Certifications
- Euro III
Interior and Comfort
Comfort Systems
- Roof-mounted Air Conditioner
- MP3 player + radio audio system
