Compact Medical Centrifuge for Hematocrit Analysis

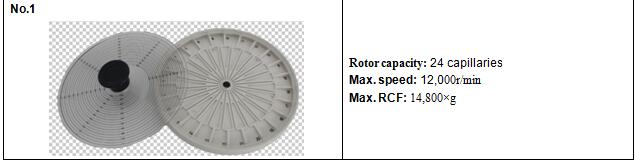

This hematocrit centrifuge delivers high-performance centrifugation with ergonomic design for modern labs. The compact frame holds up to 24 capillaries per run and achieves results in seven minutes; the rotor lid doubles as an evaluation disc.
Technical Specifications
Overview
High-Performance Hematocrit Centrifugation

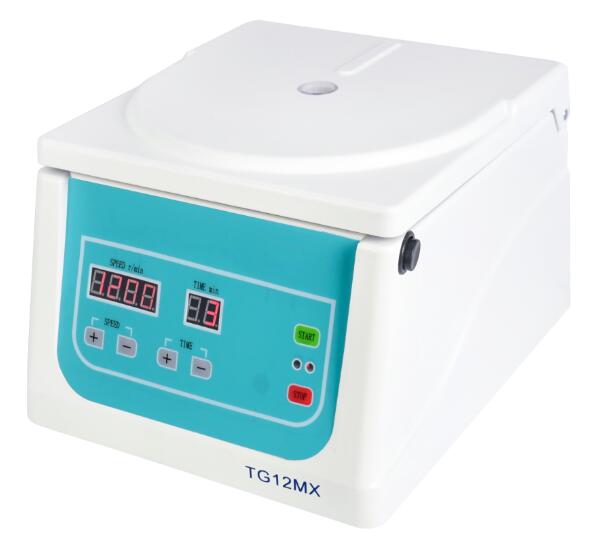

The TG12MX is a compact and elegant medical centrifuge designed specifically for hematocrit analysis in modern laboratories and clinical settings. It efficiently processes up to 24 capillaries per run, achieving optimal results within just seven minutes. Featuring a brushless DC motor and microcomputer control, it offers a silent, stable, and user-friendly experience for professional healthcare environments.
Performance Metrics
Key Performance Metrics
12,000 RPM
Max Speed
14,800 xg
Max RCF
24 pcs
Capillary Capacity
Technical Specifications
Technical Parameters
| Parameter | Value |
|---|---|
| Model | TG12MX |
| Speed Accuracy | ±30 r/min |
| Time Range | 1 min - 99 min |
| Noise Level | <55 dB(A) |
| Motor Type | Brushless Motor |
| Weight | 8 kg |
Safety & Control
Safety & Operational Features
- Microcomputer control with LED display for Speed/RCF and Time

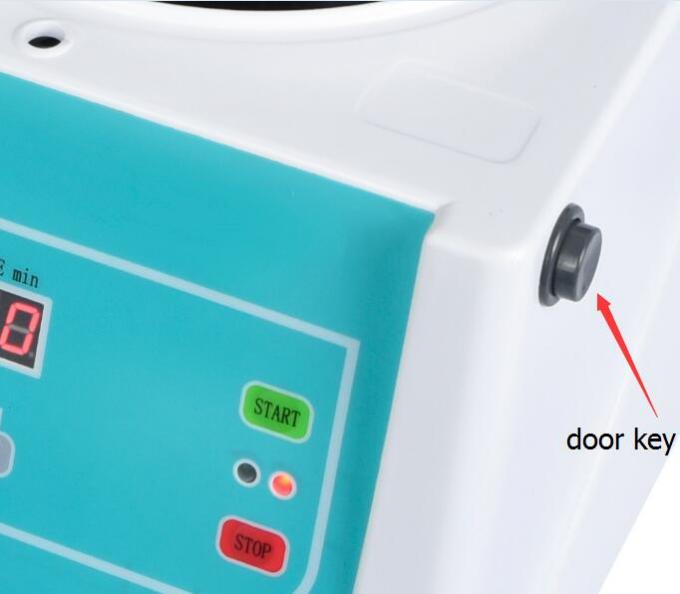

- Electronic safety-lock lid prevents operation while open
- Over-speed and imbalance protection systems
- Emergency lid release available
- Automatic RCF calculation
- Touch panel interface for easy operation
Physical Properties
- Dimensions
- 390 x 275 x 300 mm
- Housing Material
- ABS Housing
Power Supply
- Voltage Supply
- AC 110VAC 230V50/60Hz
Applications
Ideal Applications
Hematocrit AnalysisClinical LaboratoryMedical ResearchBlood Sample Processing
Customization
Customization Options
- Custom Logo branding
- Customized rotor configurations
- OEM/ODM manufacturing support
