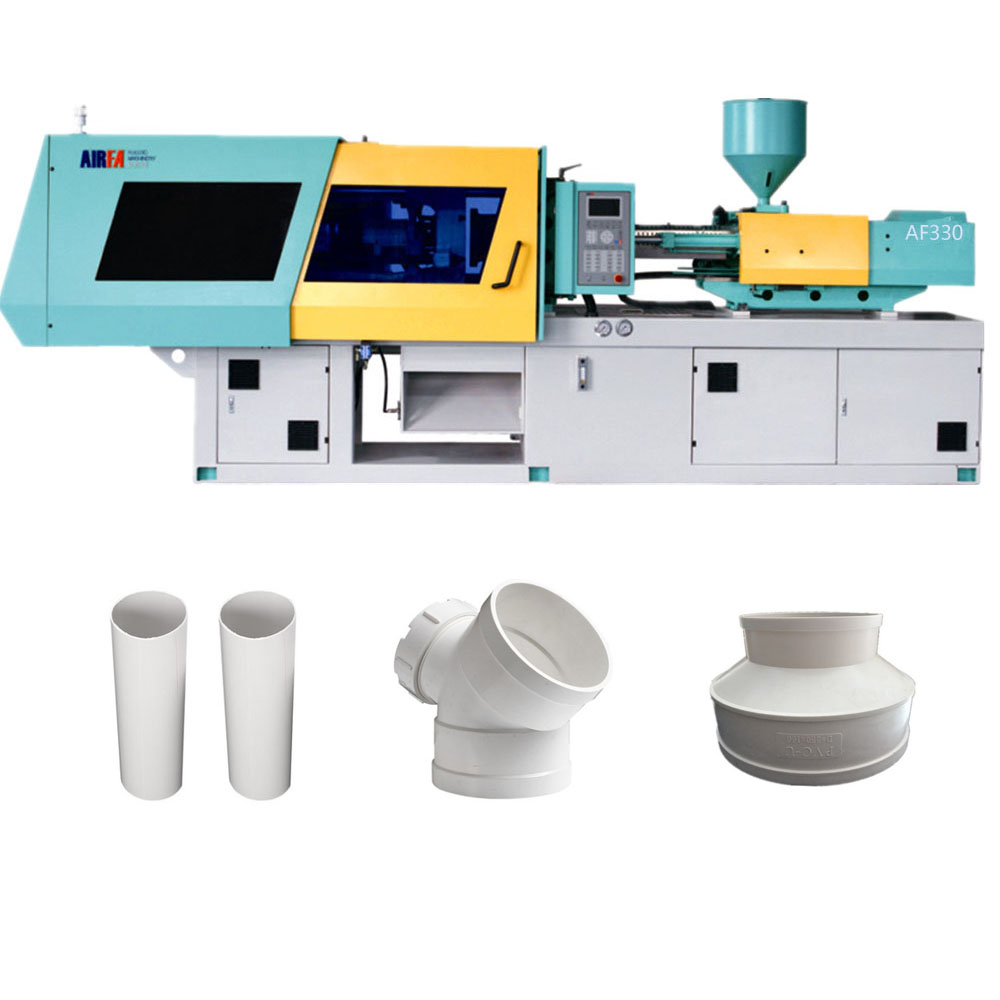

Compact Injection Molding Machine
This compact injection molding machine is designed for producing small plastic parts. It features a user-friendly control panel and precise temperature control.
Technical Specifications
Overview
Compact Injection Molding Solution
This horizontal injection molding machine is engineered for precision and efficiency in small-scale plastic and rubber component manufacturing. Its compact footprint makes it an ideal choice for prototyping, educational environments, and small-to-medium production runs. Featuring advanced hydraulic and electrical control systems, it ensures consistent performance, reliable mold clamping, and precise material delivery for a variety of engineering plastic applications.

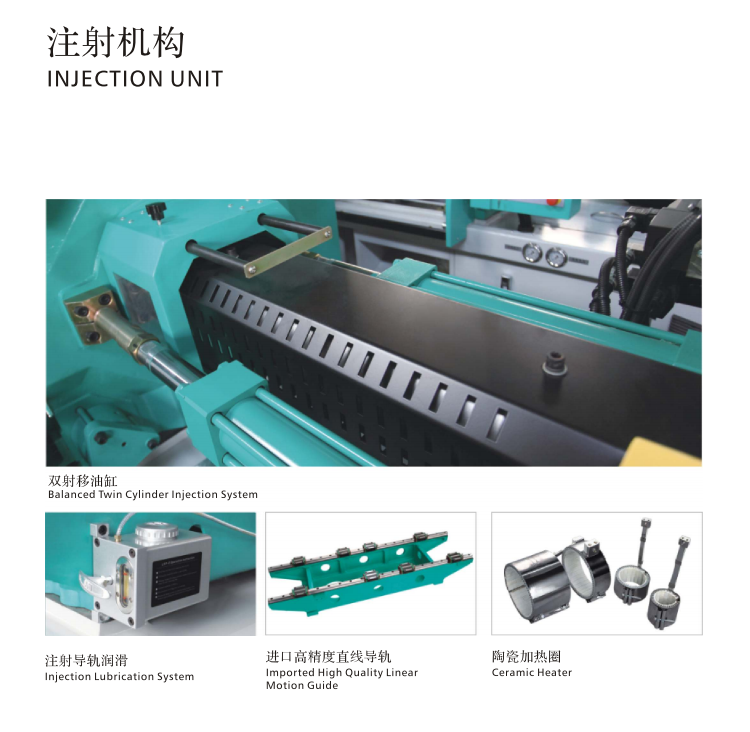

Injection System
Key Injection Features
- Balanced twin cylinder injection system for consistent material delivery
- Integrated injection lubrication system for guide rail longevity
- Imported high-precision linear motion guides
- Ceramic heaters for uniform and efficient material heating

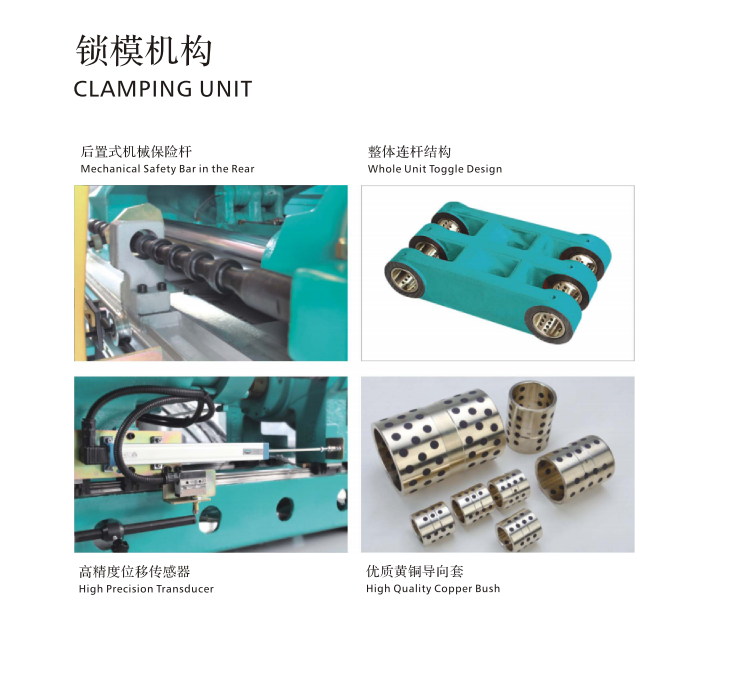

Clamping Unit
Clamping Unit Specifications
- Whole unit toggle design for efficient operation
- Mechanical safety bar in the rear
- High-precision transducer for accurate positioning
- High-quality copper bushes for smooth performance

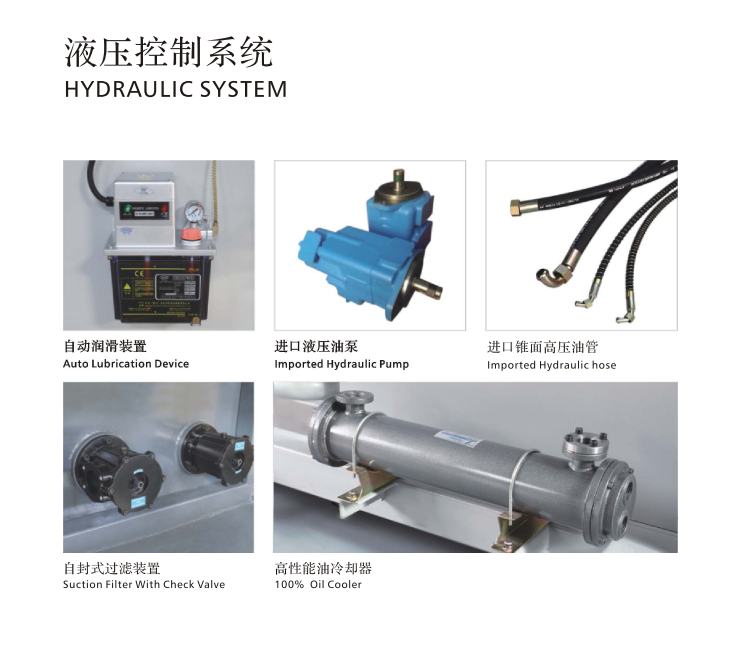

Hydraulic System
- Hydraulic System Components
- Auto lubrication deviceImported hydraulic pumpImported hydraulic hoseSuction filter with check valveOil cooler

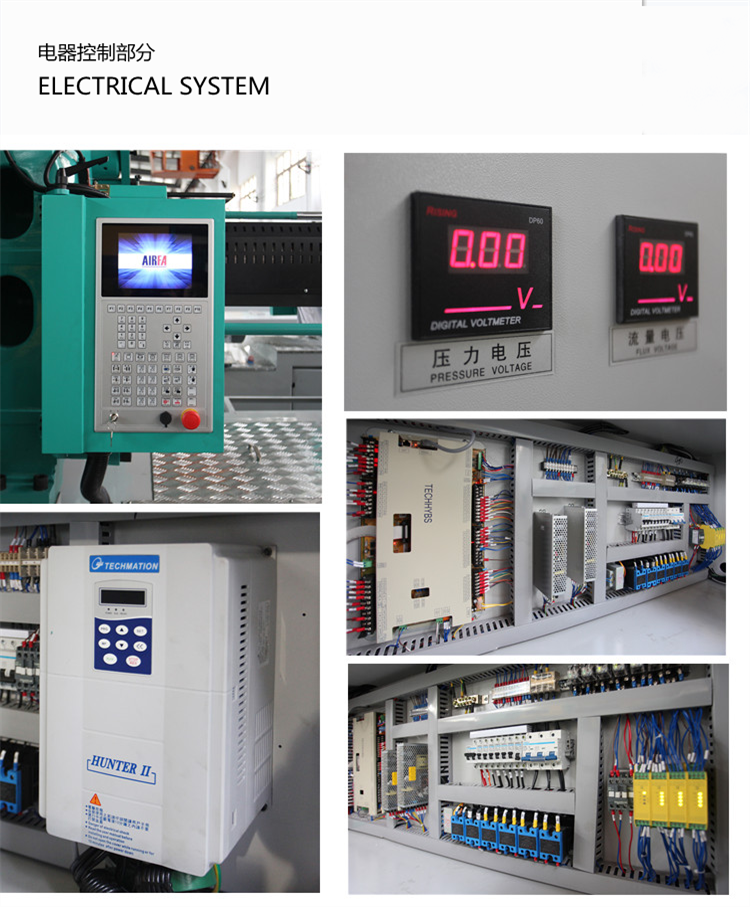

Electrical System
Control System
- Digital voltmeter displays for pressure and flow voltage
- Advanced drive module for process monitoring
- Precise parameter adjustment interface
Applications
Compatible Materials
PCPMMAFiber Glass Reinforced PlasticGeneral PlasticsRubber
