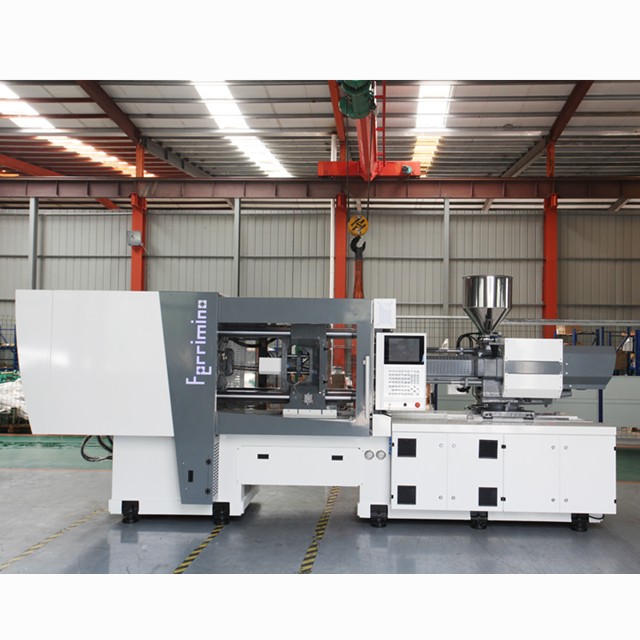

Compact Injection Molding Machine
This compact injection molding machine is designed for manufacturing precision plastic parts. It features a user-friendly control panel and a robust clamping system.
Technical Specifications
Overview
High-Precision AF Series Injection Molding Machine
The AF Series Injection Molding Machine features a robust double linear motion guide design integrated with an advanced servo control energy-saving system. Engineered for high-precision plastic manufacturing, this machine offers exceptional repeatability, low noise operation, and significant energy efficiency. Its modular architecture includes specialized units for clamping, injection, and hydraulic control, making it an ideal solution for small-scale production and prototyping.

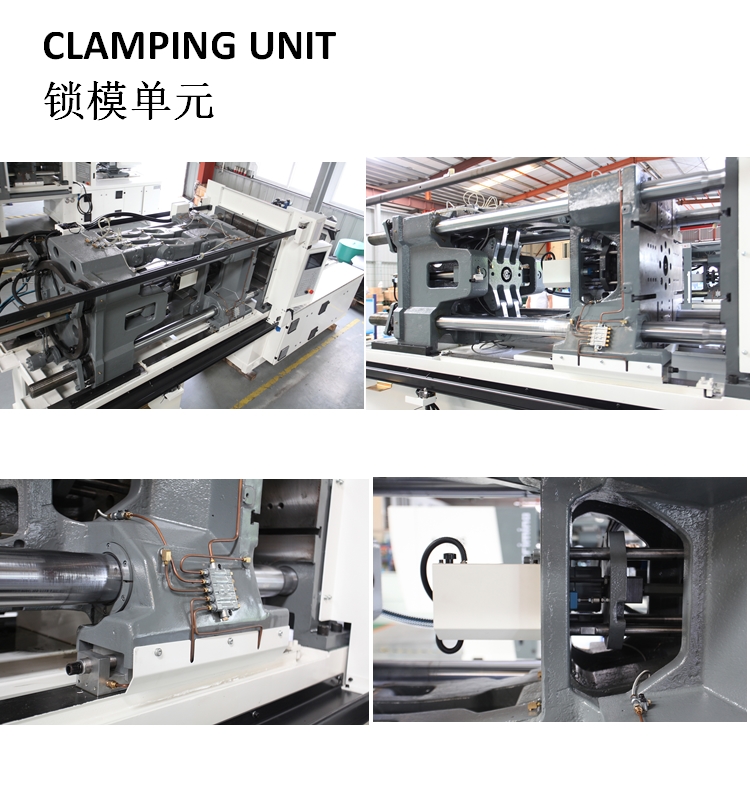

Clamping Unit
Key Features
- Optimized high-rigidity platen design
- Euromap-based platen layout with T-slot & tap holes
- Hydraulic-driven gear-type mold height adjustment
- Linkage structure for front connecting rod
- Updated mechanical safety interlock

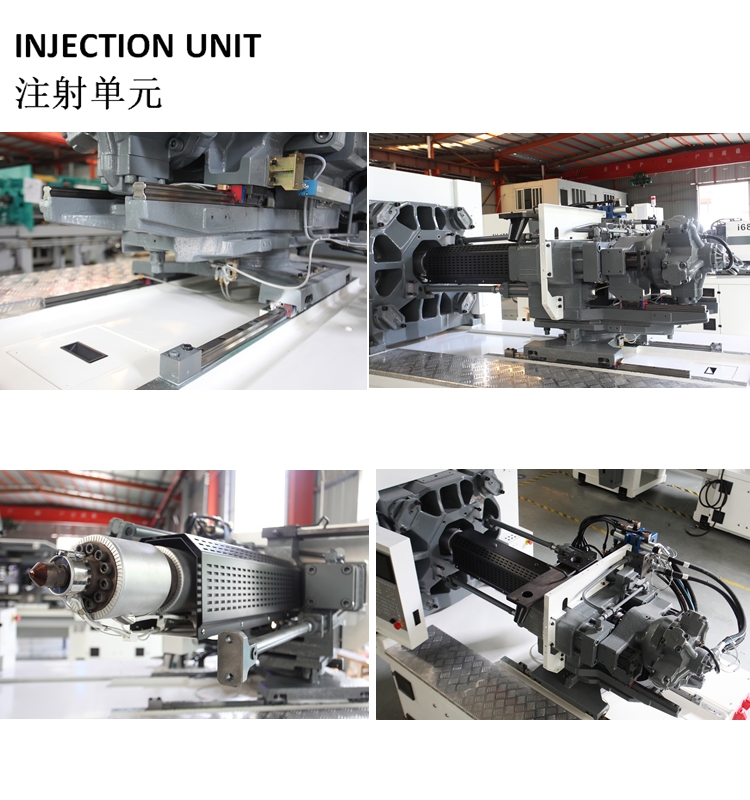

Injection Unit
- Capabilities
- Linear Motion GuideHigh-Speed InjectionTwin Nozzle CylinderSpecialized Screw Barrel

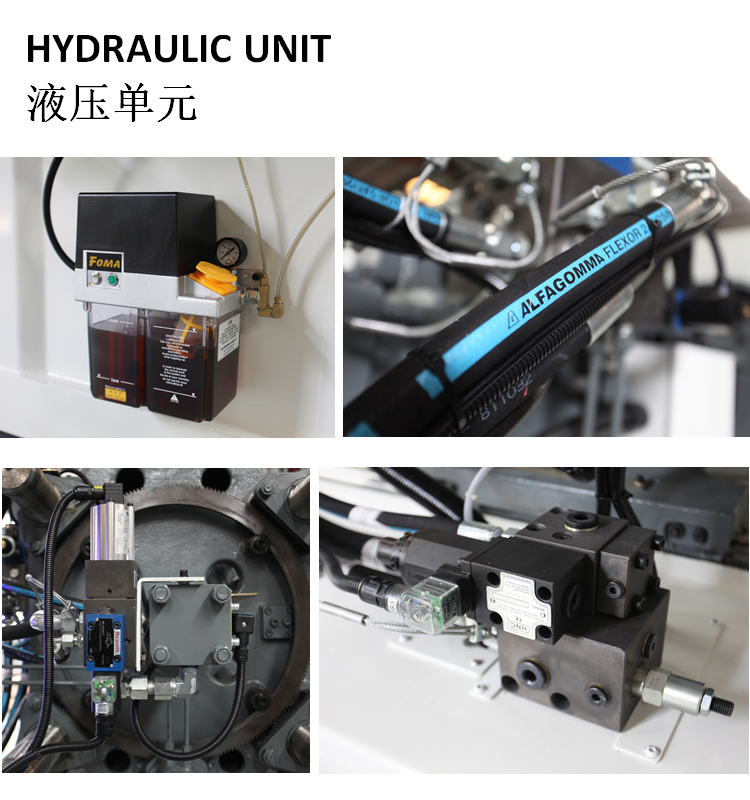

Hydraulic System
Hydraulic Performance
- Double proportional compound valve control
- Low-pressure mold protection system
- Independent lubrication system
- High-performance hydraulic valves

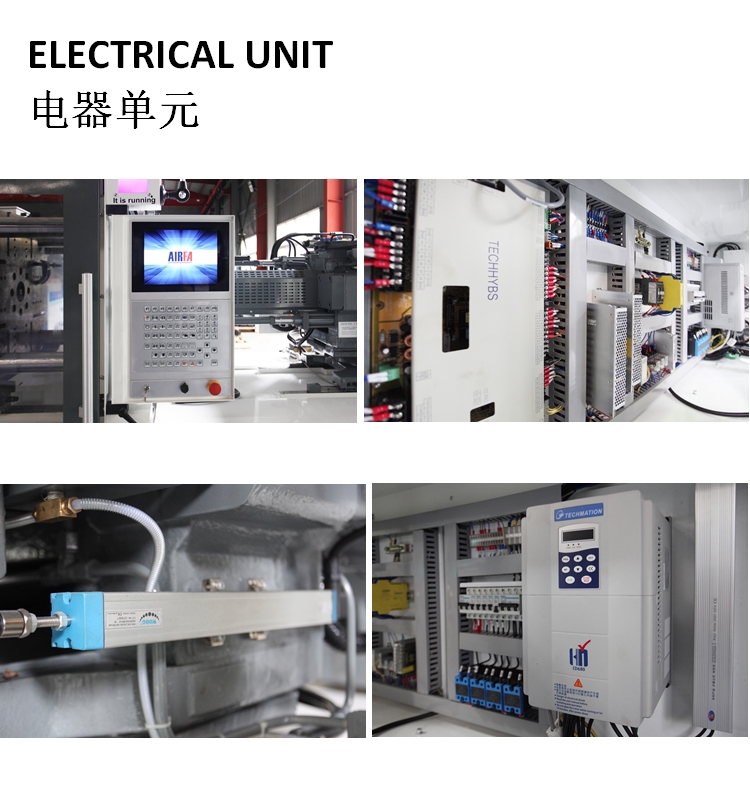

Electrical System
Control System Metrics
8.4 inch
Display Size
300 MHz
HMI Processor Speed
140 MHz
System Processor Speed
- Connectivity & Storage
- USB 2.0Ethernet 100-base T120 Parameter Storage

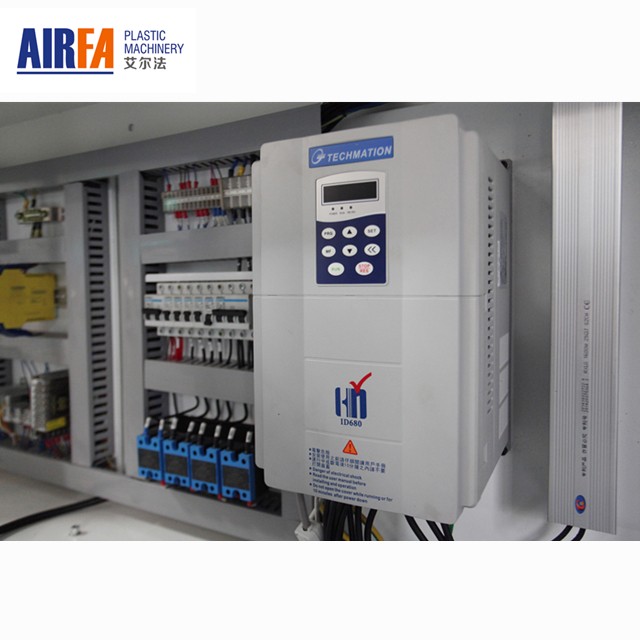

Servo Controller
Efficiency Metrics
0.3 %
Repeatability Error
0.5 sec
Response Time
80 %
Max Energy Savings
