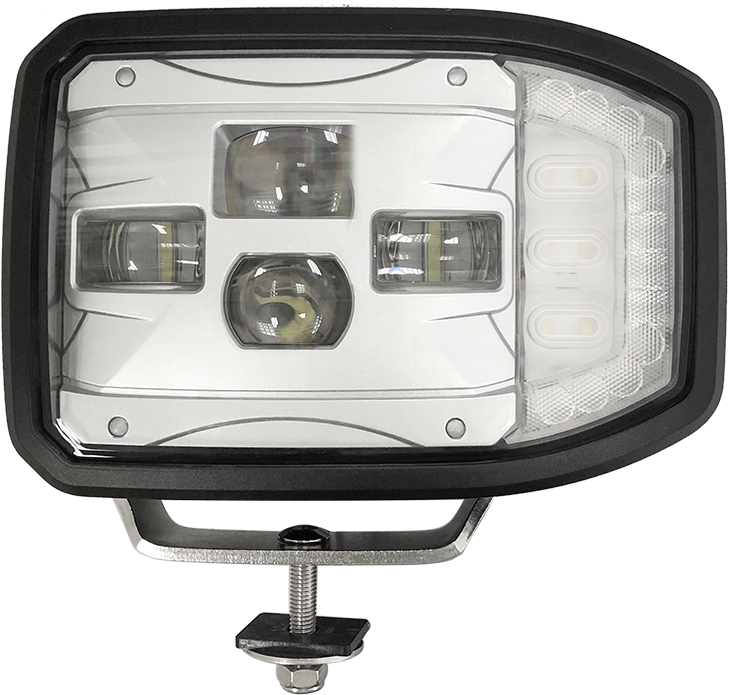

Combination Beam LED Driving Light with Side Marker
This LED driving light is ECE R149&R148 approved. It features a combination beam pattern and integrated side marker lights for enhanced visibility.
Technical Specifications
Product Overview
Versatile Combination Beam LED Light
This high-performance LED driving light is engineered for demanding off-road and utility environments, offering a robust combination of spot and flood beam patterns. It features integrated side marker lights and multiple lighting modes, including high/low beam, position lamp, and direction indicators for enhanced safety and visibility. With its durable housing and flexible mounting options, this unit is designed to adapt seamlessly to a wide range of vehicle and equipment configurations.
Performance Metrics
Power Consumption
45 W
High Beam
30 W
Low Beam
12 W
Front Indicator
3 W
Position Lamp
2 W
Side Indicator
Technical Specifications
Waterproof Rating
IP69K
- Operating Voltage
- DC 10-30V

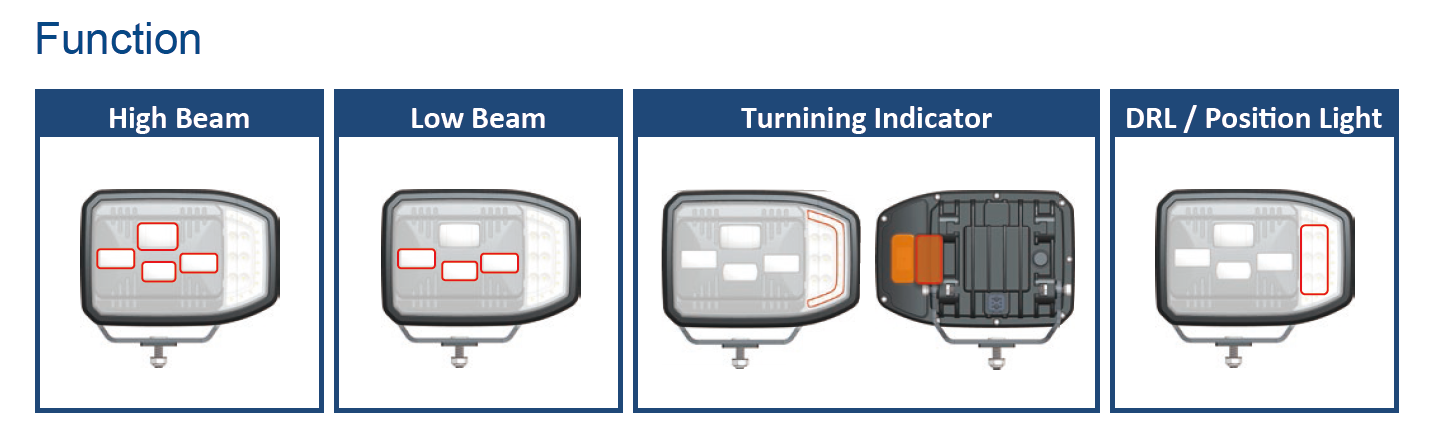

Lighting Functions
Available Beam Patterns
- Driving beam
- Passing beam
- Front Position Lamp
- Front Direction Indicator
- Side Direction Indicator
Installation
- Mounting Configurations
- PedestalRearSuspended
