Technical Specifications
Overview
Cold Shrinkable Cable Termination
This cold shrinkable termination kit is designed for reliable indoor cable applications, offering a heat-free installation process that eliminates the need for torches or special tools. Constructed from high-performance silicone rubber, the material provides excellent hydrophobicity, UV resistance, and anti-tracking properties for a long service life. The system features integrated geometric stress control and void-filling mastic to minimize positioning errors and ensure superior insulation performance.
- Installation Features
- No heat requiredNo special tools neededPre-expanded on spiral holdoutEasy removal
Technical Specifications
Standards Compliance
IEC 60502-4
- Voltage Rating
- 8.7/15(17.5)kV
- Nominal Insulation Thickness
- 4.5 mm
- Compatible Cable Types
- PVCPEXLPE
- Conductor Compatibility
- CopperAluminium Alloy
- Application Environment
- Indoor

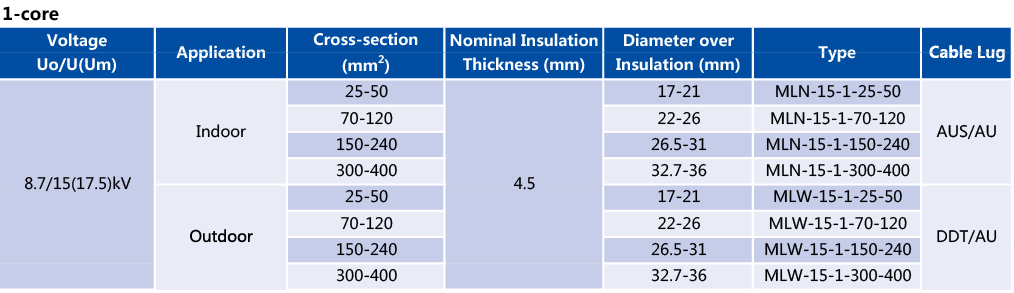

Technical Data Table
Termination Specifications
| Cross-section (mm²) | Diameter over Insulation (mm) | Model Type |
|---|---|---|
| 25-50 | 17-21 | MLN-15-1-25-50 |
| 70-120 | 22-26 | MLN-15-1-70-120 |
| 150-240 | 26.5-31 | MLN-15-1-150-240 |
| 300-400 | 32.7-36 | MLN-15-1-300-400 |
